CRANKCASE

DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

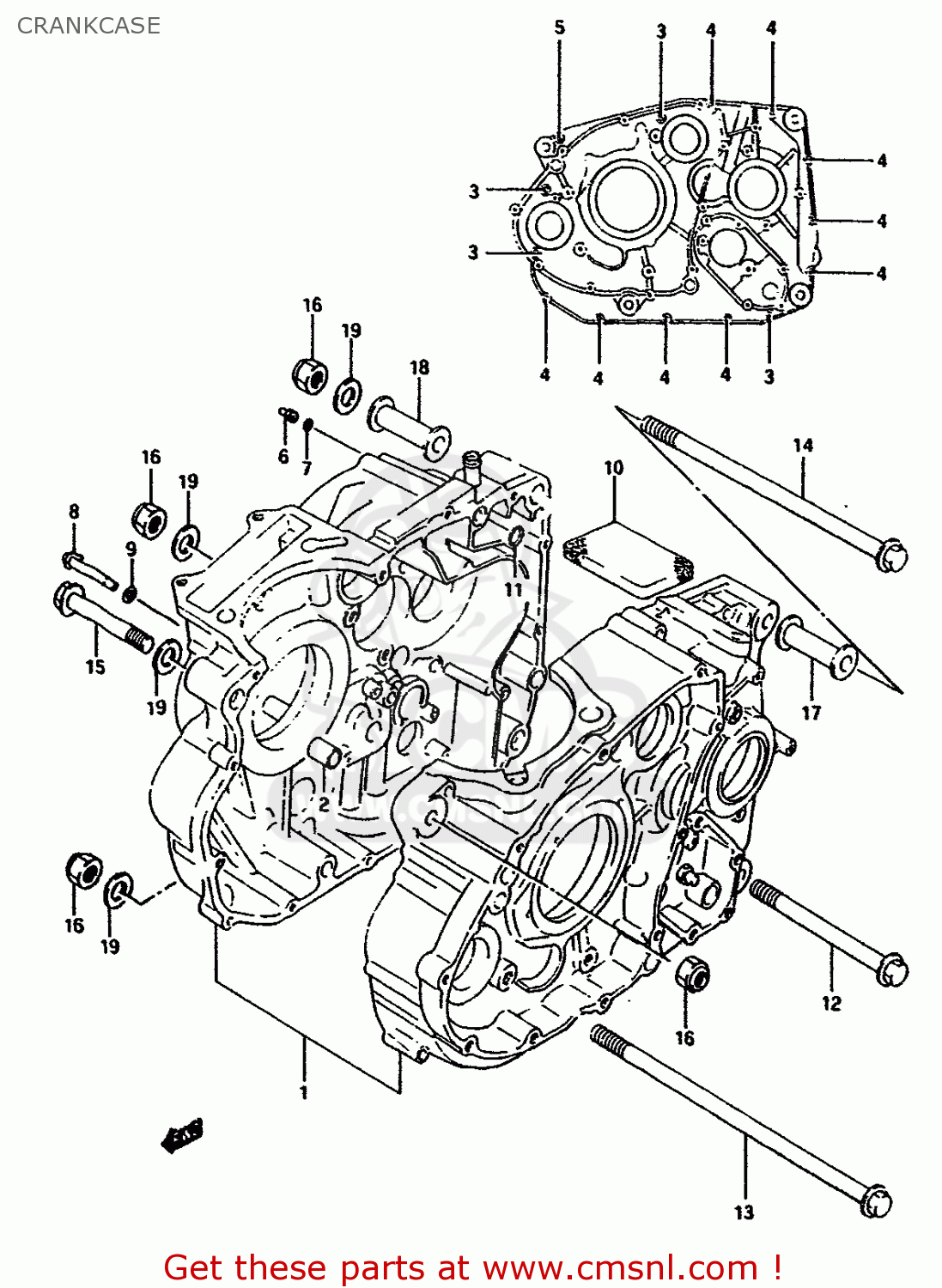

Crankcase diagram DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1130112820
ref: 1

CRANKCASE SET

€ 586.50

0920613001
ref: 2

PIN

€ 2.50

0154706605
ref: 3

BOLT (6X60)

€ 3.50

0154706404
ref: 4

BOLT 6X40

€ 3.00

0154706304
ref: 5

BOLT 6X30

€ 2.50

0949324012
ref: 6

JET(12)

€ 10.50

0928004004
ref: 7

O RING(D:1.2,ID:4)

€ 2.00

1139012D01
ref: 8

PIPE,PISTON COOLING

€ 20.00

0928008016
ref: 9

O-RING

€ 4.00

1132814A02
ref: 10

SEPARATOR,OIL BREATHER

€ 4.50

0928009004
ref: 11

O-RING

€ 4.00

0910310237
ref: 12

BOLT(10X130)

€ 5.50

0910310238
ref: 13

BOLT 10X230

€ 17.00

0910310239
ref: 14

BOLT(10X235)

€ 12.00

0910310240
ref: 15

BOLT(10X80)

€ 7.00

0915910044
ref: 16

NUT (10MM)

€ 4.00

1161014A00
ref: 17

SPACER,ENG MTG(L:55)

€ 9.00

1161045410
ref: 18

SPACER,ENGINE MOUNT(L:65)

€ 11.50

0832211104
ref: 19

WASHER 10MM

€ 2.50
