FRAME COVER (MODEL M)

DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

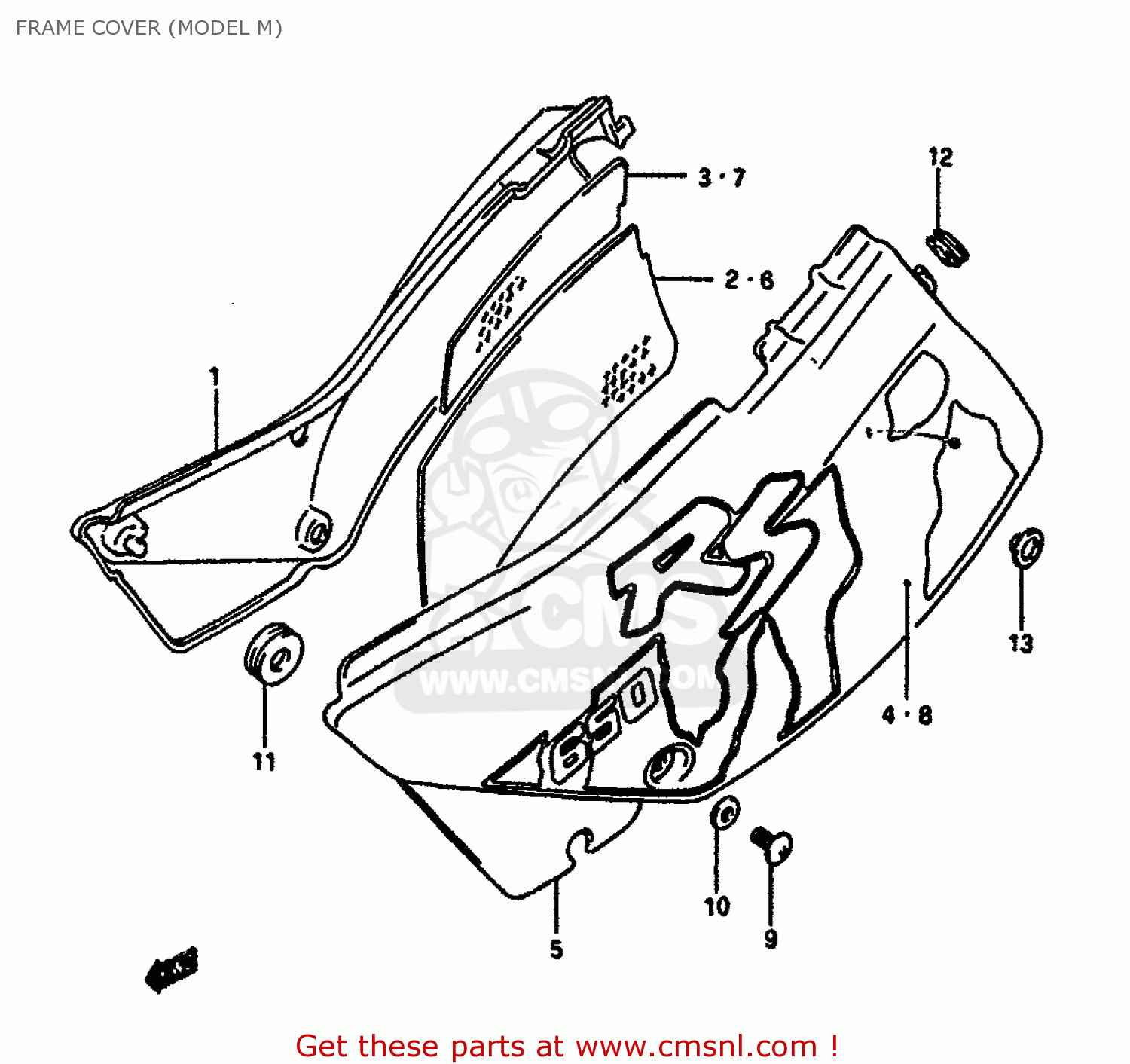

Frame cover (model m) diagram DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

1-1

4711012D200JW
ref: 1-1

COVER,FRAME RH (WHITE)

€ 137.00

1-2

4711012D2022P
ref: 1-2

COVER,FRAME RH (RED)

€ 137.00

1-3

4711012D2012F
ref: 1-3

COVER,FRAME RH (BLUE)

€ 172.00

4716612D00
ref: 2

HEATSHIELD,LWR,R

€ 26.00

4716712D00
ref: 3

SHIELD,FRAME C

€ 26.00

4-1

6813512D201BJ
ref: 4-1
FOR 0JW

TAPE,RH

€ 0.00

4-2

6813512D201BH
ref: 4-2
FOR 22P

TAPE,RH

€ 32.50

4-3

6813512D201BG
ref: 4-3
FOR 12F

TAPE,RH

€ 38.50

5-1

4721012D200JW
ref: 5-1

COVER,FRAME LH (WHITE)

€ 140.00

5-2

4721012D2022P
ref: 5-2

COVER,FRAME LH (RED)

€ 140.00

5-3

4721012D2012F
ref: 5-3

COVER,FRAME LH (BLUE)

€ 118.00

4726612D00
ref: 6

HEATSHIELD,LWR,L

€ 26.00

4726712D00
ref: 7

SHIELD,FRAME COVER NO.2,L

€ 13.50

8-1

6814512D201BJ
ref: 8-1
FOR 0JW

TAPE,LH

€ 0.00

8-2

6814512D201BH
ref: 8-2
FOR 22P

TAPE,LH

€ 37.00

8-3

6814512D201BG
ref: 8-3
FOR 12F

TAPE,LH

€ 0.00

0214206125
ref: 9

SCREW 6X12

€ 2.00

0916906041
ref: 10

WASHER

€ 2.00

0932008029
ref: 11

CUSHION

€ 2.50

0932004008
ref: 12

CUSHION

€ 6.00

0932110018
ref: 13

CUSHION

€ 5.00
