STEERING STEM

DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

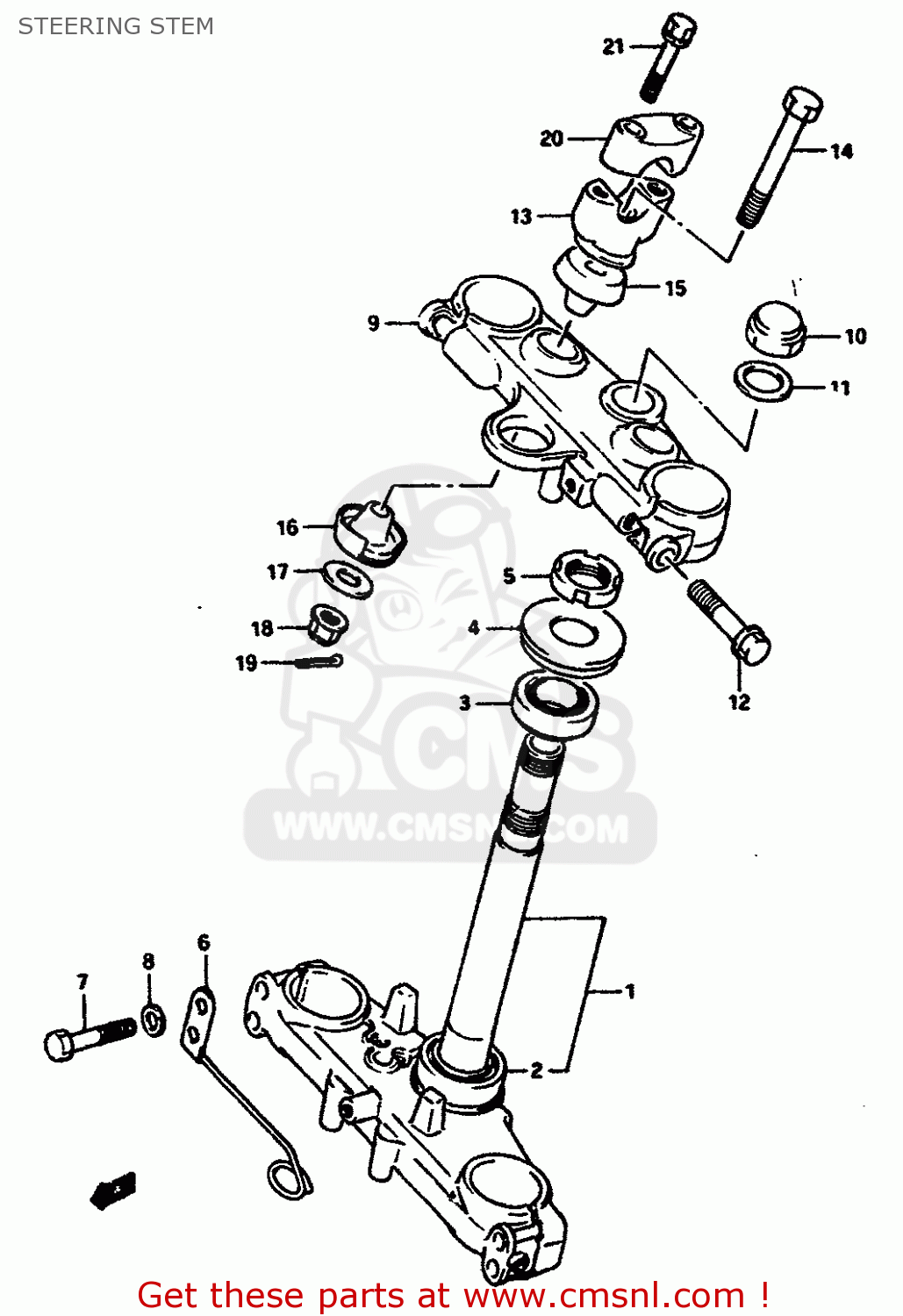

Steering stem diagram DR650RS 1990 (L) (2 4 15 E16 E17 E18 E21 E22 E24 E25 E34 E39 E53

prices are in EUR

ref

part #

description

quantity

5141012D00
ref: 1

STEM,STEERING

€ 375.50

0926530009
ref: 2

BEARING(30X55X17)

€ 49.50

0926525008
ref: 3

TAPER,ROLLER BEARING

€ 48.50

5164340200
ref: 4

SEAL,STEERING UPR DUST

€ 7.50

5163140200
ref: 5

NUT,STEERING STEM

€ 12.00

3493844B10
ref: 6

GUIDE, SPEEDOMETER CABLE

€ 7.50

0110708455
ref: 7

BOLT

€ 2.50

0832131084
ref: 8

LOCK WASHER

€ 2.50

5131112D00
ref: 9

BRACKET,UPPER

€ 250.50

5135344B00
ref: 10

NUT

€ 21.50

5135627A00
ref: 11

WASHER,STEERING STEM

€ 3.00

0151710455
ref: 12

BOLT

€ 3.00

5622114330291
ref: 13

HOLDER,HANDLE LWR

€ 25.50

5132114200
ref: 14

BOLT,HANDLE HOLDER

€ 6.50

5624114A00
ref: 15

DAMPER,UPR

€ 25.00

5624214200
ref: 16

DAMPER,LWR

€ 21.50

5135640400
ref: 17

WASHER,HANDLEBAR HOLDER

€ 2.00

0831931107
ref: 18

NUT

€ 3.00

0411120308
ref: 19

COTTER PIN

€ 1.00

5621127200291
ref: 20

HOLDER,HANDLE UPR

€ 13.50

0114708355
ref: 21

BOLT

€ 2.00

STEERING STEM

all assemblies
