CAM CHAIN

DR650S 1990 (L) USA (E03)

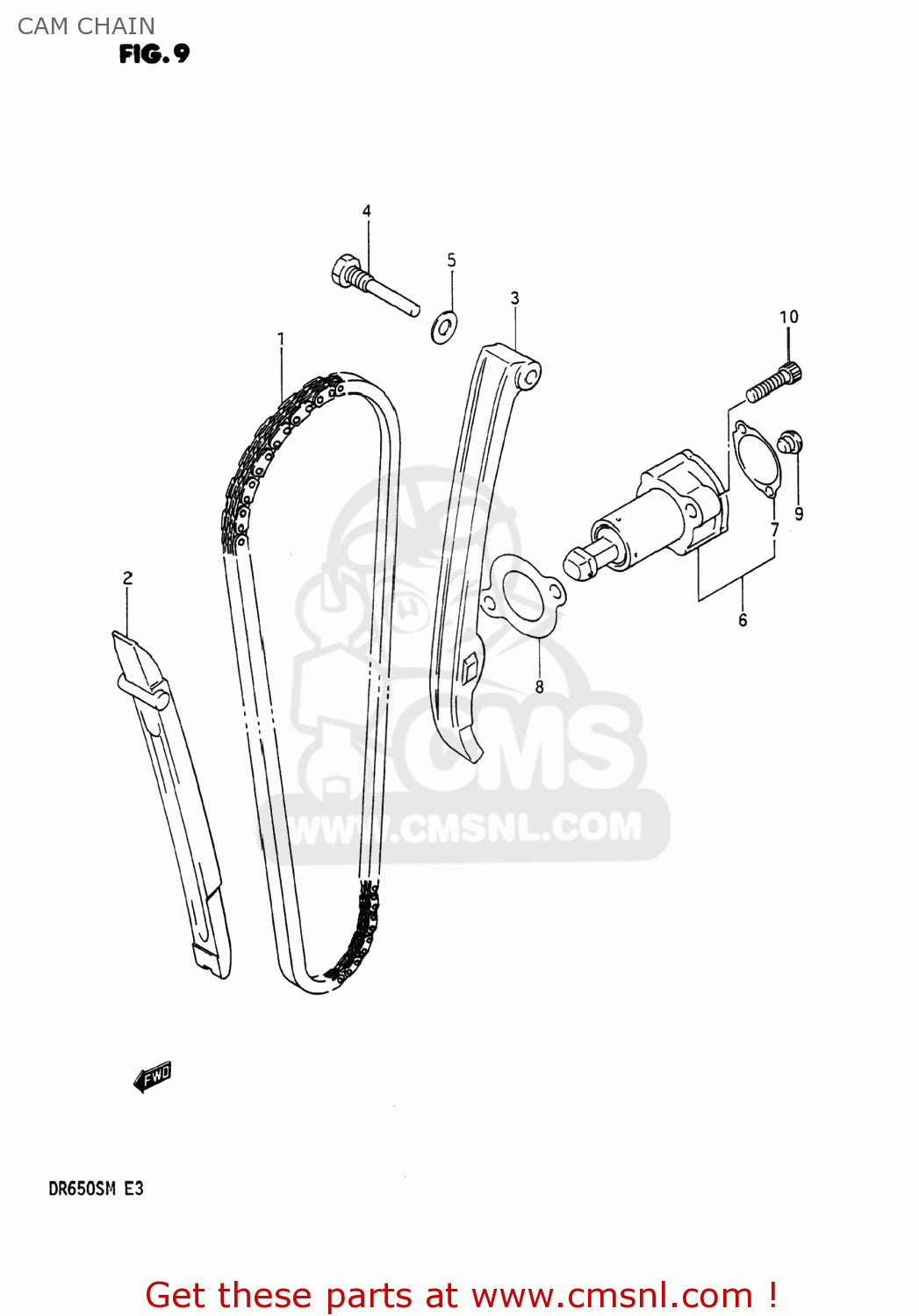

Cam chain diagram DR650S 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1276037400
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 132.50

1277137400
ref: 2

GUIDE,CAM CHAIN

€ 39.50

1281137401
ref: 3

TENSIONER,CAM CHAIN

€ 41.50

1281232410
ref: 4

BOLT,CAM CHAIN TENSIONER

€ 3.50

0916808008
ref: 5
09168-08016

GASKET 8.2X14X1 (NAS)

€ 1.00

1283015500
ref: 6
12830-33C10

ADJUSTER ASSEMBLY,TENSIONER

€ 91.00

1283838200
ref: 7
12838-38200-H17

GASKET,ADJUSTER CAP (MCA)

€ 3.00

1283724A00H17
ref: 8
12837-24A10

GASKET,TENSIONER ADJUSTER

€ 3.50

1283938200
ref: 9

PLUG,ADJUSTER

€ 2.00

0711006255
ref: 10
07130-0625B

BOLT

€ 3.00
