FRAME
DR650S 1990 (L) USA (E03)

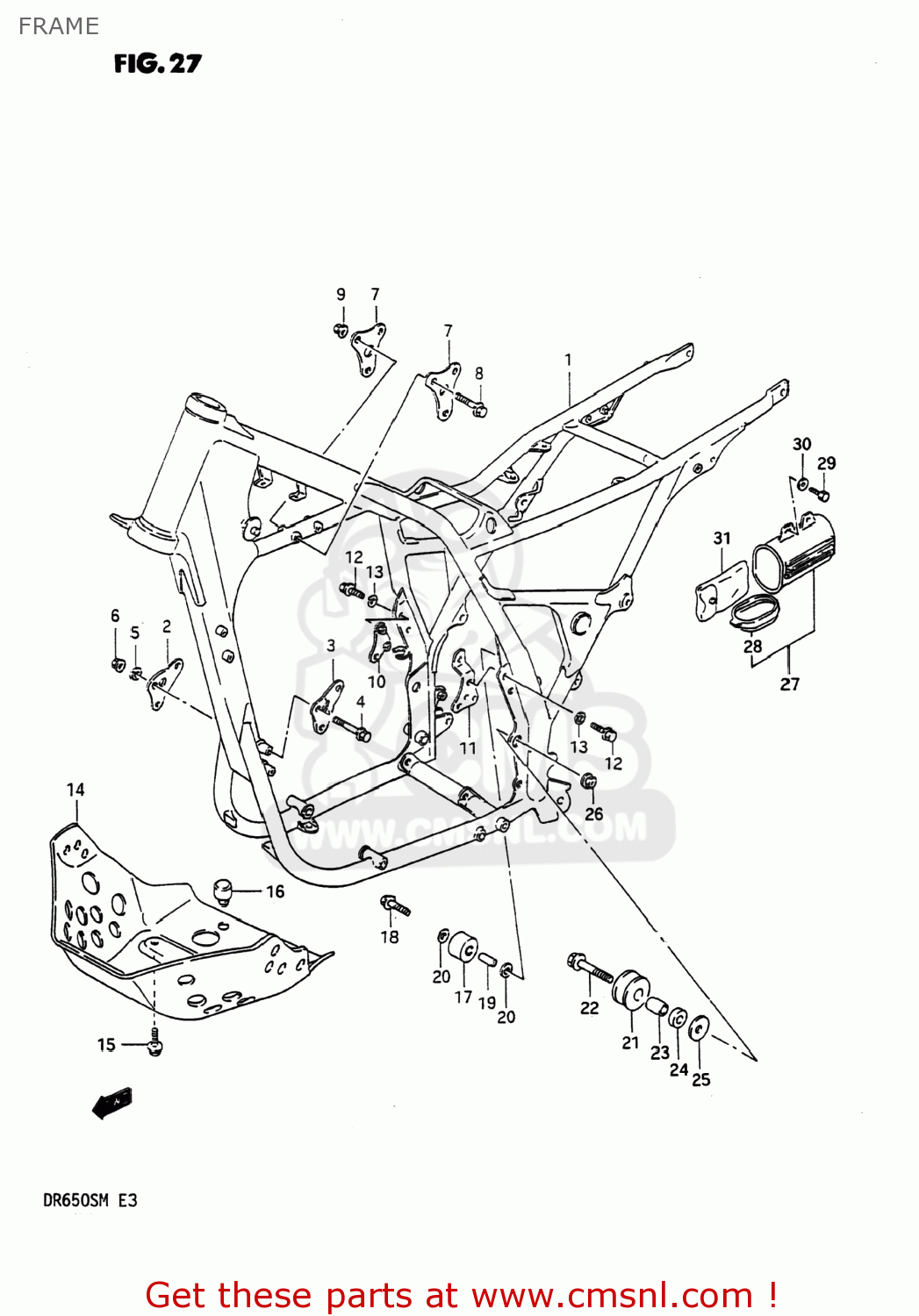

Frame diagram DR650S 1990 (L) USA (E03)
FRAME DR650S 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4110014C600NF
ref: 1
FRAME
€ 1,393.50
2
4191112D000NF
ref: 2
41911-12D00-019
PLATE,ENGINE MOUNTING
€ 9.50
3
4192112D000NF
ref: 3
41921-12D00-019
PLATE,ENGINE MOUNTING
€ 9.00
4
0910308279
ref: 4
BOLT(8X72)
€ 4.50
5-1
0832131087
ref: 5-1
08321-01087
WASHER,LOCK
€ 2.00
5-2
0832131084
ref: 5-2
08321-0108A
LOCK WASHER
€ 2.50
6-1
0831921088
ref: 6-1
08319-2108A
NUT
€ 1.50
6-2
0831921085
ref: 6-2
08319-2108A
NUT
€ 1.50
7
4199112D000NF
ref: 7
41991-12D10
PLATE,ENGINE MOUNTING
€ 15.50
8
0910308289
ref: 8
BOLT(8X50)
€ 5.00
9-1
0831931087
ref: 9-1
NUT
€ 2.50
9-2
0831931085
ref: 9-2
08319-3108A
NUT
€ 2.50
10
4194012D000NF
ref: 10
41940-12D00-019
PLATE,ENGINE MOUNTING
€ 12.00
11-1
4195014A100NF
ref: 11-1
41950-14A10-019
PLATE,ENGINE MOUNTING
€ 14.50
11-2
4195012D010NF
ref: 11-2
41950-12D01-019
PLATE,ENGINE MOUNTING
€ 10.50
12
0910308266
ref: 12
BOLT(8X20)
€ 2.50
13-1
0832131087
ref: 13-1
08321-01087
WASHER,LOCK
€ 2.00
13-2
0832131084
ref: 13-2
08321-0108A
LOCK WASHER
€ 2.50
14
4251114A20
ref: 14
PROTECTOR,ENGINE
€ 257.00
15
0151708167
ref: 15
01550-08167
BOLT 8X16
€ 3.00
16
0932110017
ref: 16
CUSHION
€ 5.50
17
4391101B10
ref: 17
ROLLER,CHAIN CONTROL
€ 14.50
18
0910308083
ref: 18
BOLT(8X41)
€ 3.50
19
0918008136
ref: 19
09180-08206
SPACER (8.6X13.8X28)
€ 9.00
20
0916008021
ref: 20
09160-08130
WASHER (8.2X24X1.6)
€ 2.00
21
4391135B00
ref: 21
ROLLER,CHAIN CONTROL
€ 14.50
22
0910308082
ref: 22
09103-08395
BOLT 8X50
€ 7.00
23
0918008119
ref: 23
09180-08156
SPACER(8.6X12X25.5)
€ 6.50
24
4391412D00
ref: 24
09180-08141
SPACER,LOWER
€ 3.50
25
0821108201
ref: 25
WASHER
€ 2.00
26
0831931085
ref: 26
08319-3108A
NUT
€ 2.50
27
4155037210
ref: 27
HOLDER,TOOL
€ 20.50
28
4155237210
ref: 28
CAP,HOLDER
€ 5.00
29
0911606085
ref: 29
09116-06165
BOLT M6X16
€ 2.50
30
0916006039
ref: 30
09160-06109
WASHER (6.5X18X1.6)
€ 2.00
31
0980000245
ref: 31
09800-21021
TOOL SET
€ 33.00
