STAND - REAR BRAKE
DR650S 1990 (L) USA (E03)

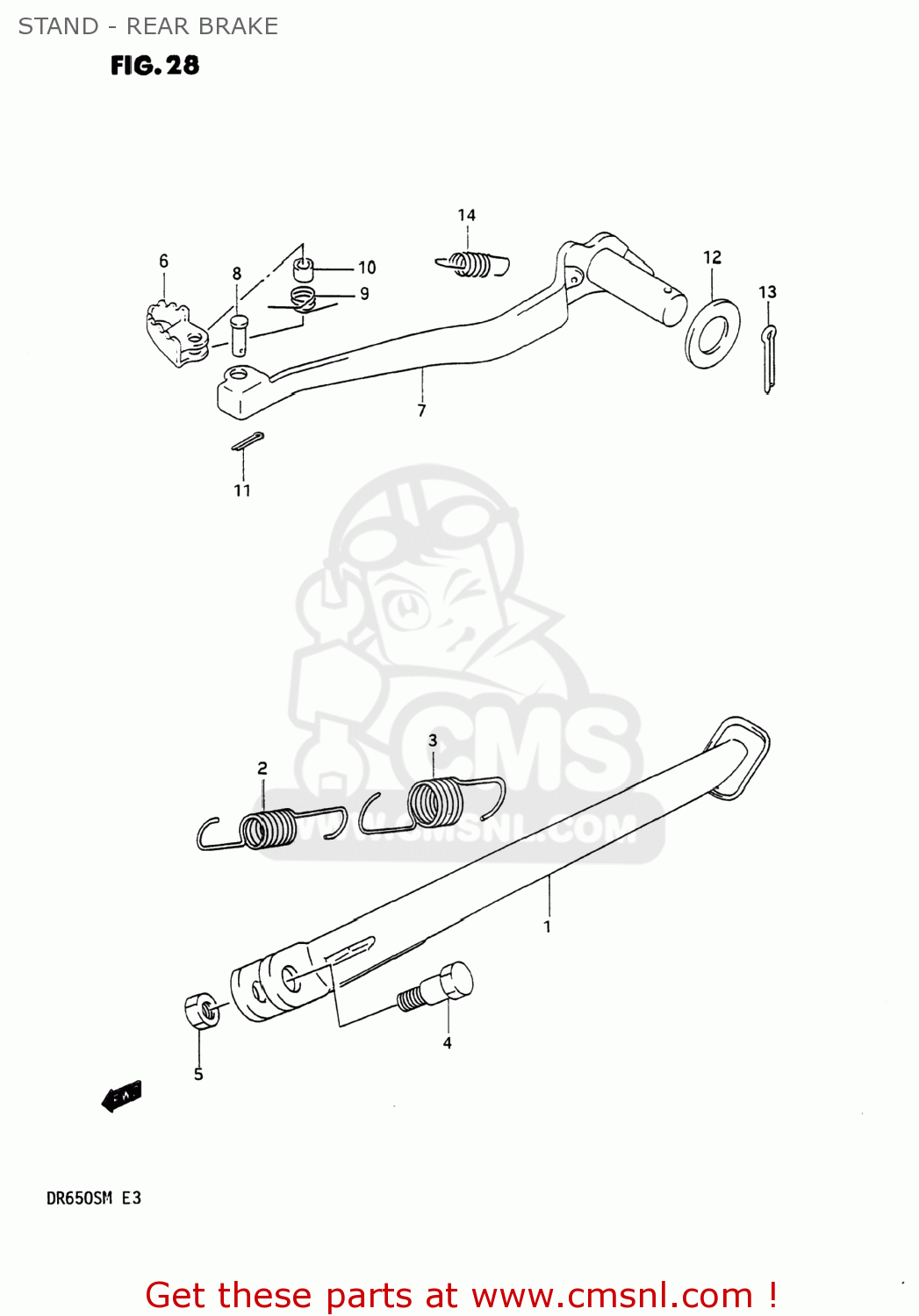

Stand - rear brake diagram DR650S 1990 (L) USA (E03)
STAND - REAR BRAKE DR650S 1990 (L) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4231014A210NF
ref: 1
42310-14A21-019
STAND,SIDE
€ 662.50
2
0944314030
ref: 2
09443-14030-XC0
SPRING
€ 6.00
3
0944322003
ref: 3
SPRING
€ 7.00
4
0911110047
ref: 4
BOLT(10X30)
€ 4.50
5-1
0831022107
ref: 5-1
08310-00107
NUT
€ 2.50
5-2
0831022105
ref: 5-2
09140-10043
NUT
€ 2.00
6
4311014130
ref: 6
PEDAL,BRAKE
€ 6.00
7
4312012D00
ref: 7
ARM,BRAKE PEDAL
€ 51.50
8
0920006038
ref: 8
PIN
€ 2.00
9
0944411004
ref: 9
09444-11005
SPRING
€ 3.00
10
0918006137
ref: 10
SPACER(9.2X9X6.5)
€ 2.50
11
0411120158
ref: 11
04111-2015A
PIN
€ 1.50
12
0916017021
ref: 12
09160-17501-XC0
WASHER (17.6X34X2)
€ 2.00
13
0411130308
ref: 13
04111-3030A
COTTER PIN
€ 1.50
14
0944310033
ref: 14
SPRING
€ 3.50
