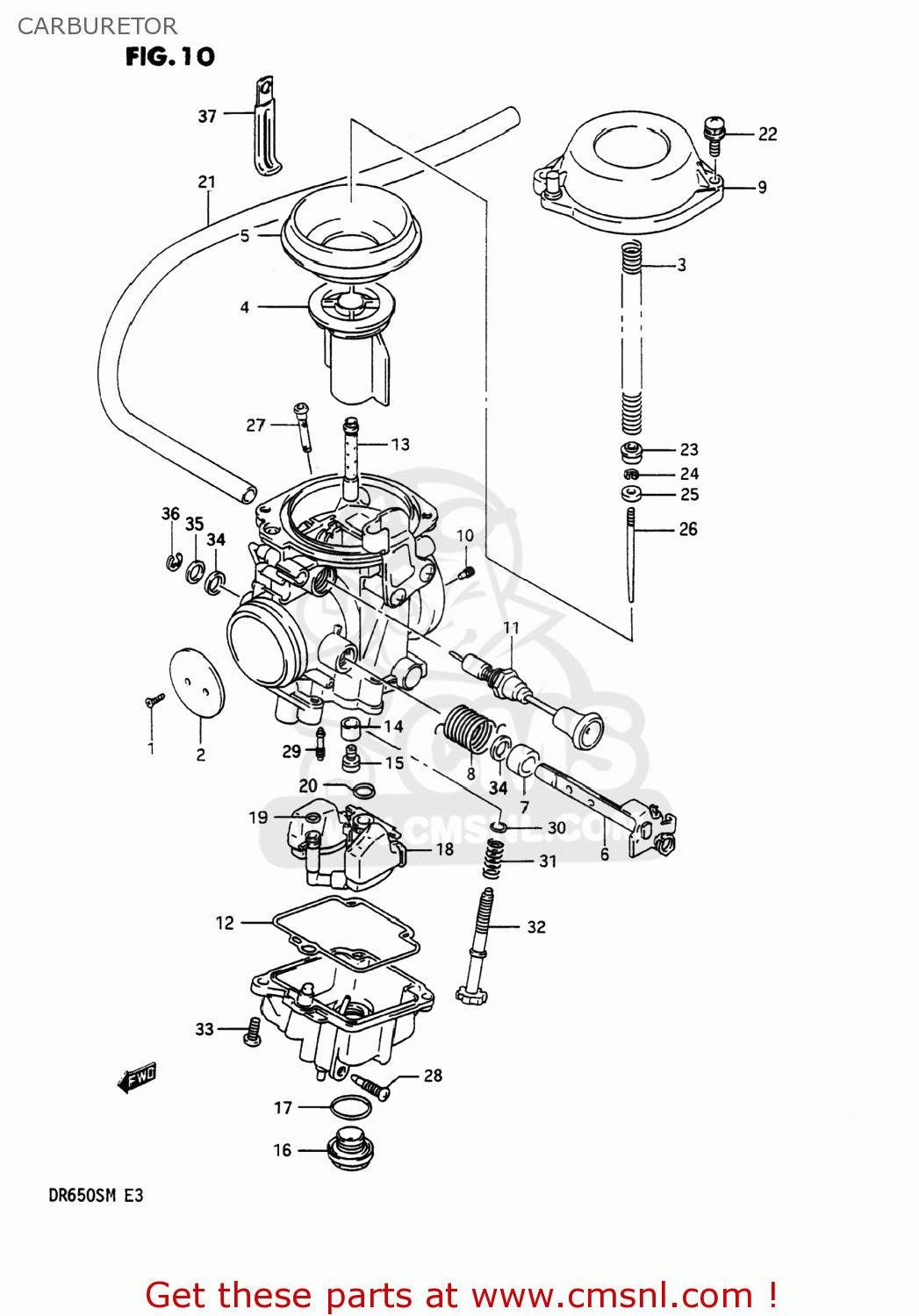

CARBURETOR

ref

part #

description

quantity

1320014A70
ref:
13200-14A71

CARBURETOR ASSEMBLY

€ 308.00

1320014A80
ref:
13200-14A81

CARBURETOR ASSEMBLY

€ 268.50

1

1360407D00
ref: 1
13604-44080

SCREW

€ 3.50

2

1355112D00
ref: 2

VALVE,THROTTLE

€ 21.00

3

1341712D00
ref: 3

SPRING

€ 6.50

4

1350112D00
ref: 4

VALVE,PISTON

€ 71.50

5

1350707D00
ref: 5
13507-07D01

DIAPHRAGM

€ 24.50

6

1355012D00
ref: 6

SHAFT ASSEMBLY,THROTTLE

€ 31.00

7

1355705A20
ref: 7

RING

€ 3.00

8

1357312D00
ref: 8

SPRING

€ 6.00

9

1350212D00
ref: 9

COVER,DIAPHRAGM

€ 38.50

10

0949328007
ref: 10
09493-28006

JET,AIR

€ 15.50

11

1341115A30
ref: 11

PLUNGER ASSY

€ 50.00

12

1325844B00
ref: 12

GASKET,FLOAT CHAMBER (NAS)

€ 8.50

13

0949400684
ref: 13

JET,NEEDLE (Y-3)

€ 35.00

14

1333107D00
ref: 14

RING

€ 4.50

15

0949129012
ref: 15

JET,MAIN (147.5)

€ 14.50

16

1324732210
ref: 16

SCREW,GUIDE

€ 13.00

17

1324941310
ref: 17

O RING,DRAIN PLUG

€ 5.00

18

1325044C00
ref: 18
13250-13D00

FLOAT/NEEDLE VALVE ASSEMBLY

€ 124.50

19

1337446710
ref: 19

O RING

€ 4.50

20

1337444080
ref: 20
13374-35C00

O-RING,NEEDLE VALVE

€ 6.00

21

1368315A30
ref: 21
09354-65113-600

HOSE

€ 26.00

22

1360234390
ref: 22
02112-7516A

SCREW

€ 2.50

23

1333112D00
ref: 23

RING

€ 4.50

24

1339431210
ref: 24

CLIP,NEEDLE

€ 3.50

25

1338707D00
ref: 25

RING

€ 4.50

26

1338314A70
ref: 26

NEEDLE JET

€ 9.00

27

1323612C00
ref: 27

FILTER

€ 5.00

28

1324702340
ref: 28

PLUG,DRAIN

€ 5.50

29

0949247013
ref: 29

JET,PILOT(47.5)

€ 12.50

30

1342738300
ref: 30

WASHER

€ 1.50

31

1337560A00
ref: 31

SPRING

€ 4.00

32

1326728A00
ref: 32
13267-14D10

SCREW

€ 22.50

33

1360205129
ref: 33
02112-05127

SCREW

€ 2.50

34

1355644B00
ref: 34

SEAL

€ 3.50

35

1355747070
ref: 35

GASKET,THROTTLE SHAFT (NAS)

€ 4.00

36

1361744080
ref: 36

E RING

€ 3.50

37

0940406402
ref: 37
09404-06432

CLAMP

€ 2.50

all assemblies
