FRONT BRAKE HOSE

DR650S 1990 (L) USA (E03)

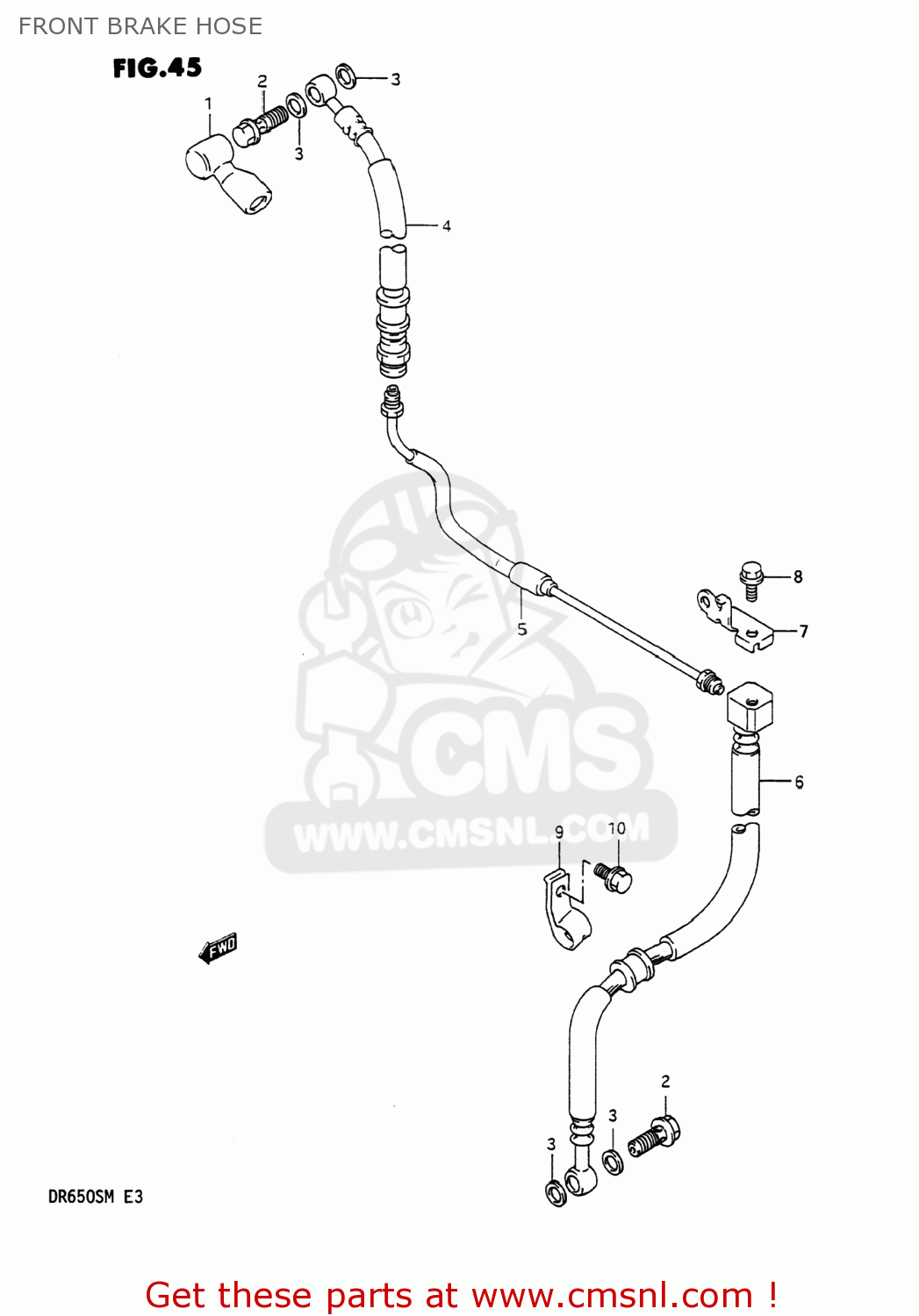

Front brake hose diagram DR650S 1990 (L) USA (E03)

FRONT BRAKE HOSE DR650S 1990 (L) USA (E03)

FRONT BRAKE HOSE DR650S 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5971104700
ref: 1

BOOT,MASTER CYLINDER

€ 14.50

2

0936010017
ref: 2

BOLT UNION

€ 6.50

3

0916110009
ref: 3

WASHER(10X15X1.5)

€ 2.00

4

5948014A20
ref: 4

HOSE COMP,FRONT BRAKE

€ 50.50

5

5925014A20
ref: 5

PIPE COMP,FRONT BRAKE

€ 19.50

6

5924012D00
ref: 6

HOSE COMP,FRONT BRAKE

€ 61.50

7

5924312D00
ref: 7

BRACKET,FRONT BRAKE HOSE

€ 6.50

8

0193706105
ref: 8

BOLT

€ 2.50

9

5926812D00
ref: 9

CLAMP,FR BRAKE HOSE NO.2

€ 7.00

10

0154706127
ref: 10

BOLT

€ 2.00
