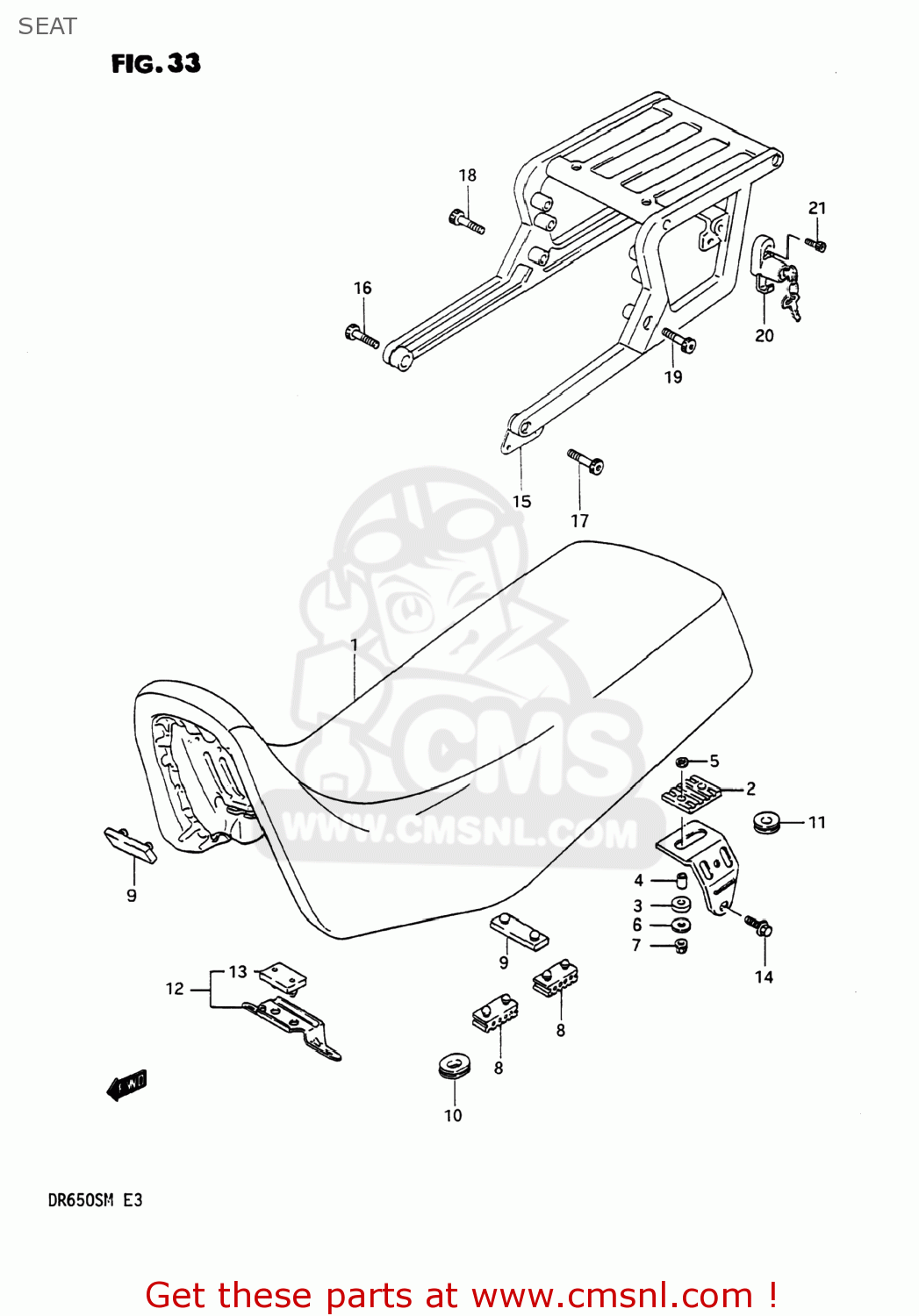

SEAT

ref

part #

description

quantity

1-1

4510015A309DD
ref: 1-1
45100-15A30-B35

SEAT ASSEMBLY

€ 279.00

1-2

4510015A30B35
ref: 1-2

SEAT SET

€ 279.00

2

4514723450
ref: 2

CUSHION,SEAT FR

€ 1.50

3

4515023450
ref: 3

CUSHION,FR PLATE

€ 3.00

4

4521923450
ref: 4

SPACER,SEAT SUPPORT

€ 2.50

5

0821206201
ref: 5

WASHER

€ 1.50

6

0832221066
ref: 6
08322-0106B

WASHER, LOWER

€ 2.00

7

0831626066
ref: 7
08316-1006B

NUT

€ 2.00

8

4514931300
ref: 8

CUSHION,SEAT(40X20X15)

€ 2.00

9

0932108009
ref: 9

CUSHION

€ 4.00

10

0932908003
ref: 10

CUSHION

€ 3.50

11

0932008018
ref: 11

CUSHION

€ 4.00

12

4512014A00
ref: 12

PLATE ASSY,SEAT FR HOOK

€ 16.50

13

0932108010
ref: 13

CUSHION

€ 4.00

14

0110708166
ref: 14
01500-0816B

BOLT, 8X1.25X1

€ 2.00

15

4630014A40
ref: 15

CARRIER ASSEMBLY,REAR

€ 282.00

16

0711008358
ref: 16
07130-08357

BOLT, FRONT RH

€ 4.50

17

0711008257
ref: 17
07130-08257

BOLT, FRONT LH

€ 3.50

18

0711008608
ref: 18
07130-0860B

BOLT, REAR RH

€ 4.50

19

0711008508
ref: 19
07130-0850A

BOLT ,8X50

€ 3.50

20

9570031810
ref: 20

LOCK SET,HELMET

€ 49.50

21

0711006165
ref: 21
07130-0616B

BOLT

€ 3.00

all assemblies
