FRONT MASTER CYLINDER

DR650S 1990 (L) USA (E03)

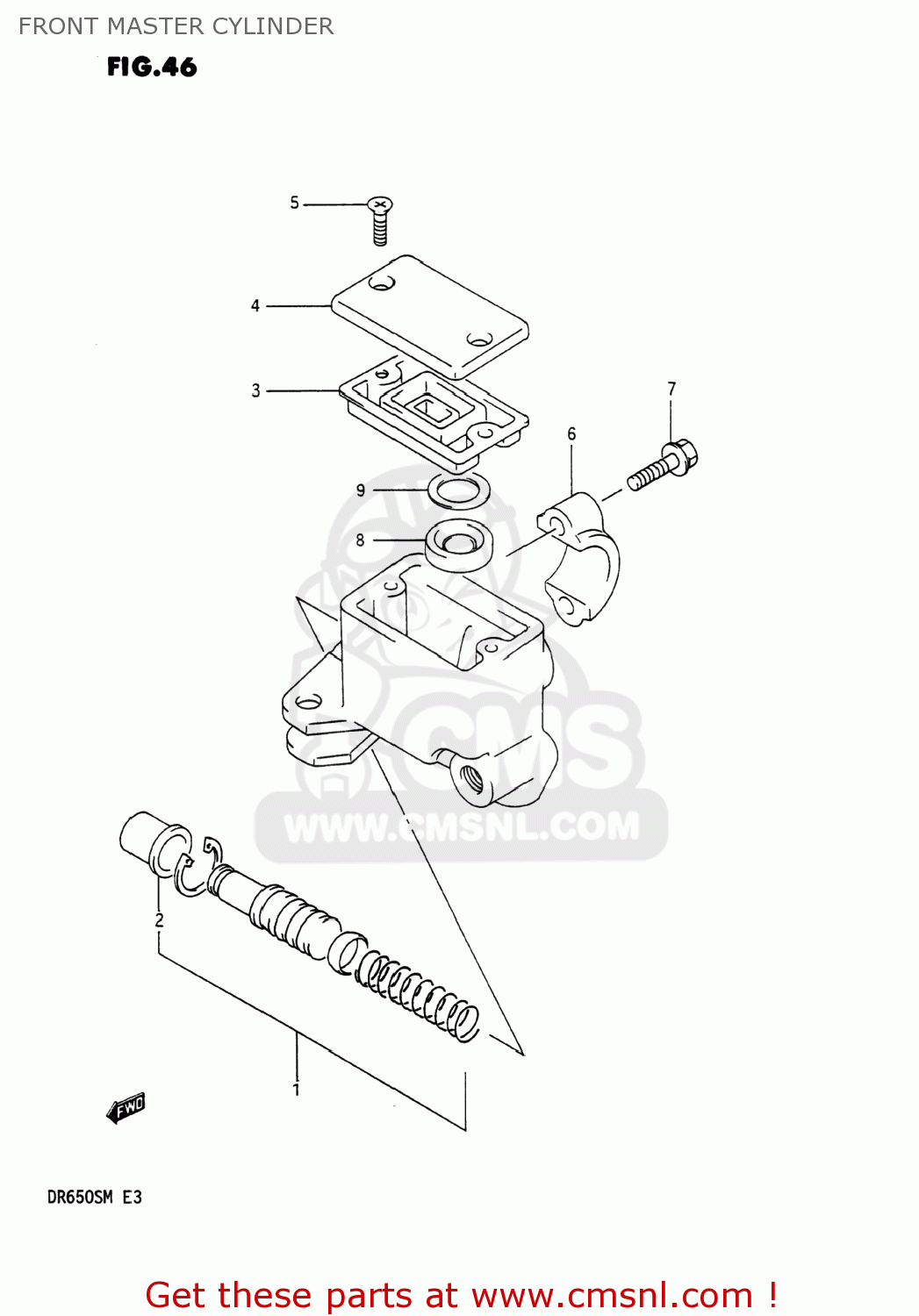

Front master cylinder diagram DR650S 1990 (L) USA (E03)

FRONT MASTER CYLINDER DR650S 1990 (L) USA (E03)

FRONT MASTER CYLINDER DR650S 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity



5960012D00
ref:
59600-12D01

CYLINDER ASSEMBLY,FRONT MASTER

€ 210.00

1

5960045850
ref: 1

PISTON & CUP SET

€ 38.50

2

5966644300
ref: 2

BOOT

€ 6.00

3

5966744B00
ref: 3

DIAPHRAGM

€ 8.00

4

6966924A01
ref: 4

CAP

€ 12.00

5

6968949300
ref: 5

SCREW

€ 1.50

6

5967136500
ref: 6

HOLDER

€ 10.00

7

0111706255
ref: 7
01550-0625A

BOLT

€ 2.50

8

5974815400
ref: 8

SEPERATOR

€ 7.50

9

5974915400
ref: 9

PLATE

€ 2.00
