CYLINDER

DR650S 1990 (L) USA (E03)

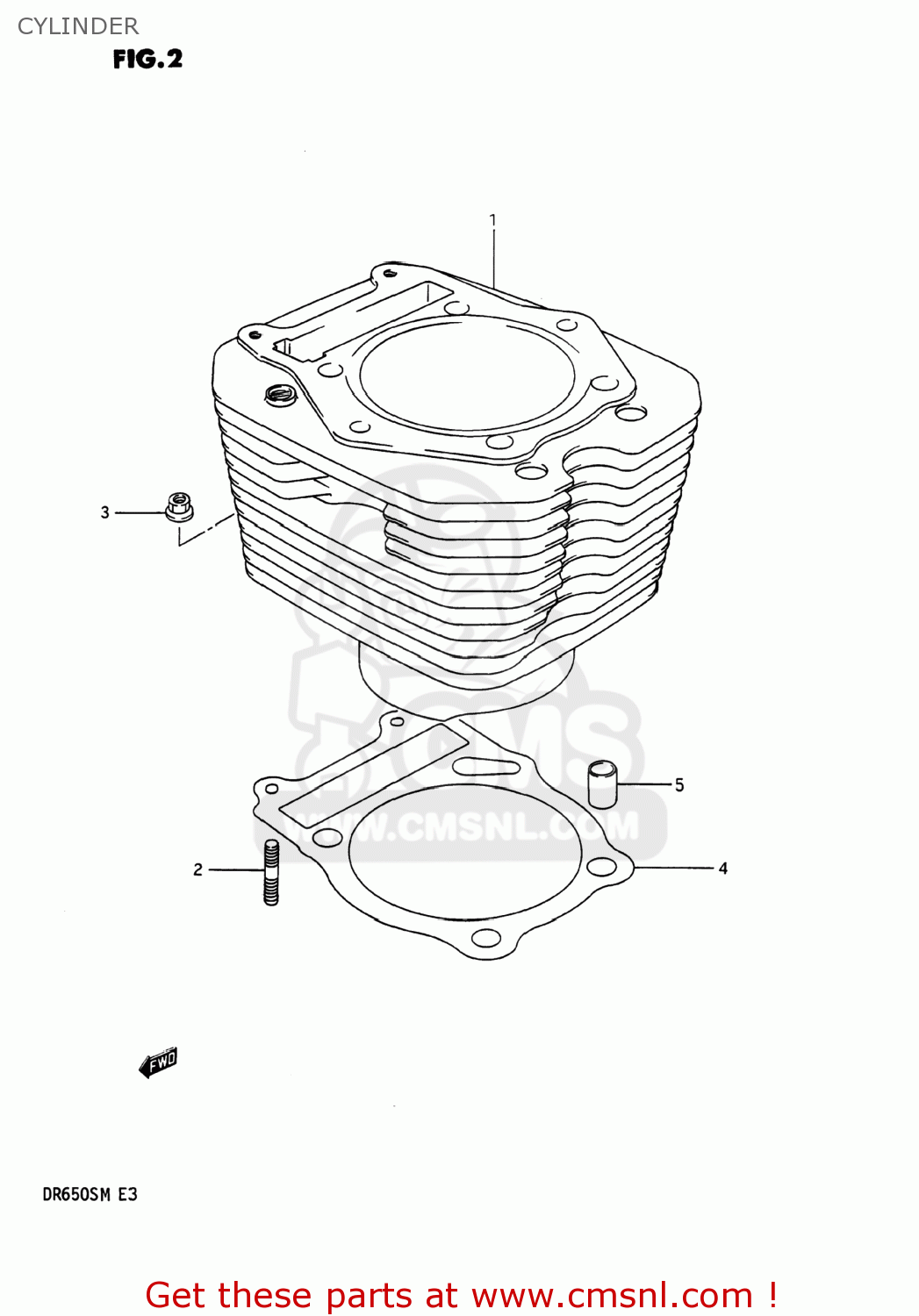

Cylinder diagram DR650S 1990 (L) USA (E03)

CYLINDER DR650S 1990 (L) USA (E03)

CYLINDER DR650S 1990 (L) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

1121012D100E0
ref: 1
11210-12D14-0F0

CYLINDER

€ 606.50

2

0142106205
ref: 2
01421-0620A

STUD BOLT L:20

€ 2.50

3

0831616064
ref: 3
08316-1006B

NUT 6MM

€ 2.50

4

1124114A02H17
ref: 4
11241-14A03-H17

GASKET,CYLINDER (NAS)

€ 27.00

5

0920613001
ref: 5
04211-13189

PIN

€ 2.50
