DR650SE 2003 (K3) USA (E03)

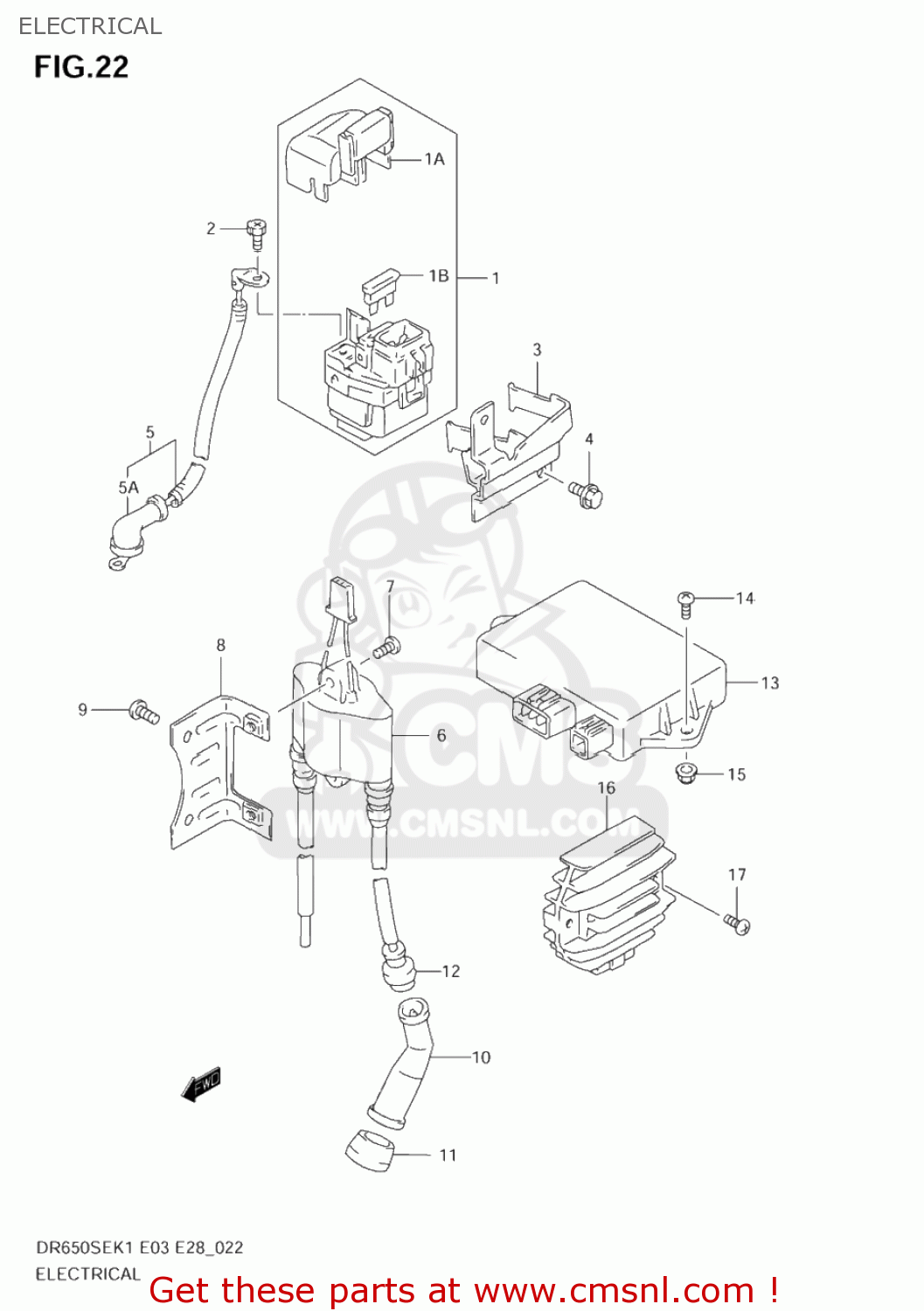

Electrical diagram DR650SE 2003 (K3) USA (E03)
ELECTRICAL DR650SE 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3180026E00
ref: 1
RELAY ASSY,STARTING MOTOR
€ 77.50
1A
3186126E00
ref: 1A
COVER,STARTER RELAY
€ 3.50
1B
0948130101
ref: 1B
FUSE(30A)
€ 6.00
2
0912806013
ref: 2
SCREW(6X8)
€ 1.50
3
3189032E00
ref: 3
BRACKET,STARTING MOTOR RELAY
€ 12.00
4
0910306078
ref: 4
BOLT(6X8)
€ 2.00
5
3381032E00
ref: 5
WIRE,STARTER MOTOR
€ 17.50
5A
3186148B10
ref: 5A
CAP,STARTER MOTOR LEAD
€ 4.50
6
3341032E00
ref: 6
COIL ASSY,IGNITION
€ 125.00
7
0214206253
ref: 7
02142-0625A
SCREW
€ 1.50
8
3341632E00
ref: 8
BRACKET,IGNITION COIL
€ 7.00
9
0214206103
ref: 9
02142-0610A
SCREW 6X10
€ 2.00
10
3351043010
ref: 10
CAP,SPARK PLUG
€ 11.50
11
3354147D00
ref: 11
SEAL,SPARK PLUG
€ 7.00
12
3354238B00
ref: 12
SEAL,HIGH TENSION CORD
€ 4.50
13
3290032E10
ref: 13
CDI UNIT
€ 469.00
14
0216206203
ref: 14
02162-0620C
BOLT
€ 2.00
15
0831931063
ref: 15
08319-3106A
NUT
€ 2.50
16
3280032E00
ref: 16
RECTIFIER ASSY
€ 182.50
17
0216206203
ref: 17
02162-0620C
BOLT
€ 2.00
