HEADLAMP (MODEL K1)
DR650SE 2003 (K3) USA (E03)

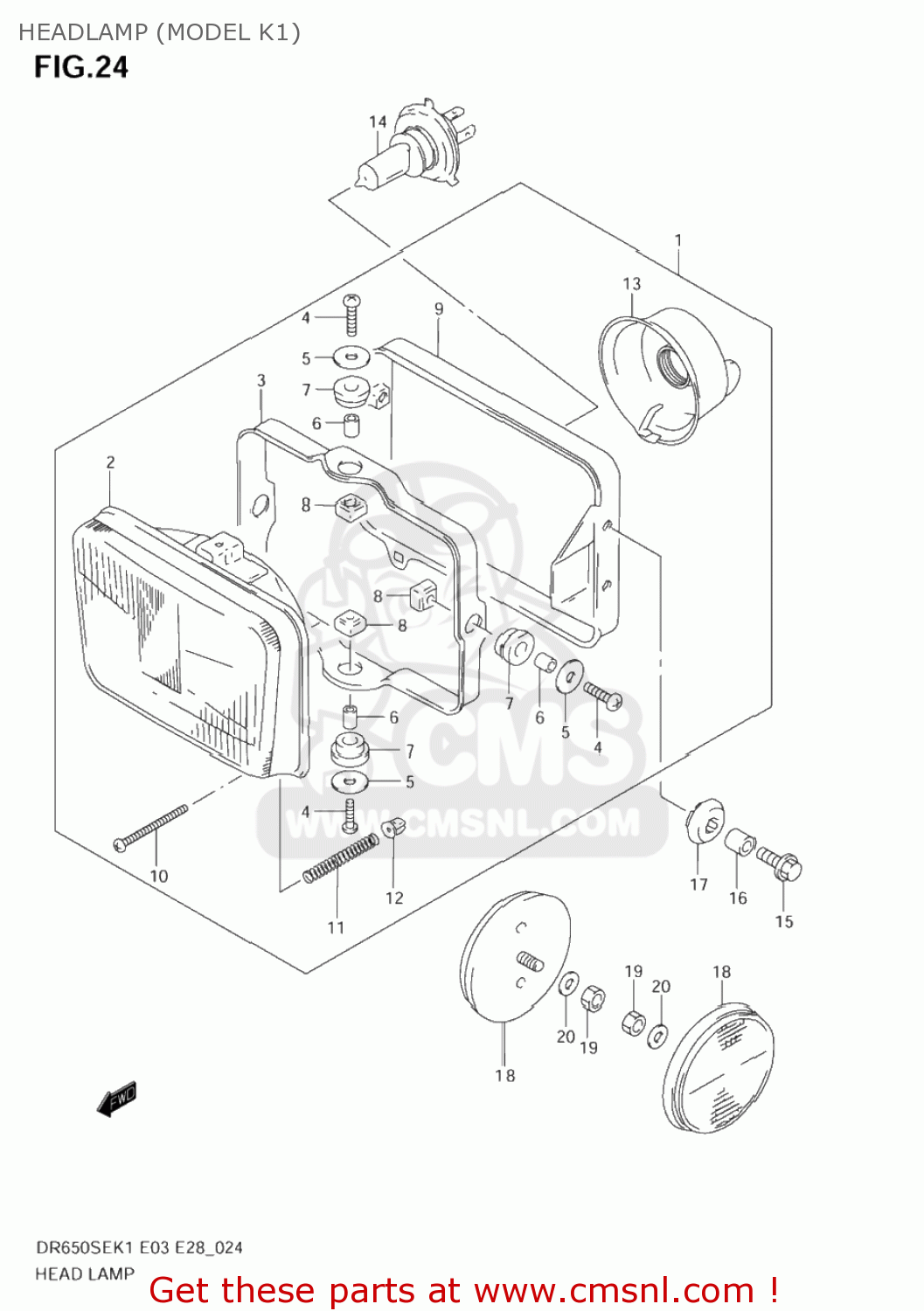

Headlamp (model k1) diagram DR650SE 2003 (K3) USA (E03)
HEADLAMP (MODEL K1) DR650SE 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510012E31999
ref: 1
HEADLAMP ASSEMBLY
€ 0.00
2
3512112E30
ref: 2
UNIT ASSY
€ 145.00
3
3513012E20
ref: 3
RING,MOUNTING
€ 37.50
4
0211205163
ref: 4
02112-0516A
SCREW
€ 2.00
5
0916005045
ref: 5
WASHER(5.5X18X1)
€ 2.00
6
3513345230
ref: 6
SPACER
€ 2.00
7
3513945230
ref: 7
CUSHION
€ 1.50
8
3513545900
ref: 8
NUT
€ 2.50
9
3514112E20
ref: 9
HOUSING
€ 71.00
10
0912504501
ref: 10
SCREW(4X45)
€ 3.00
11
3515412E20
ref: 11
SPRING,ADJUSTING
€ 2.00
12
3513512E20
ref: 12
NUT,ADJUSTING
€ 2.50
13
3517301440
ref: 13
COVER,SOCKET
€ 10.00
14
0947112060
ref: 14
BULB(12V60/55W,H4)
€ 8.00
15
0911606167
ref: 15
BOLT(6X20)
€ 2.00
16
0918006310
ref: 16
SPACER(6.5X10X10)
€ 2.00
17
0932009018
ref: 17
CUSHION
€ 2.00
18
3595014A10
ref: 18
35950-14A11
REFLECTOR,REFLEX
€ 11.00
19
0831310053
ref: 19
08313-1005B
NUT
€ 2.00
20
0832101053
ref: 20
08321-0105A
LOCK,WASHER
€ 3.00
