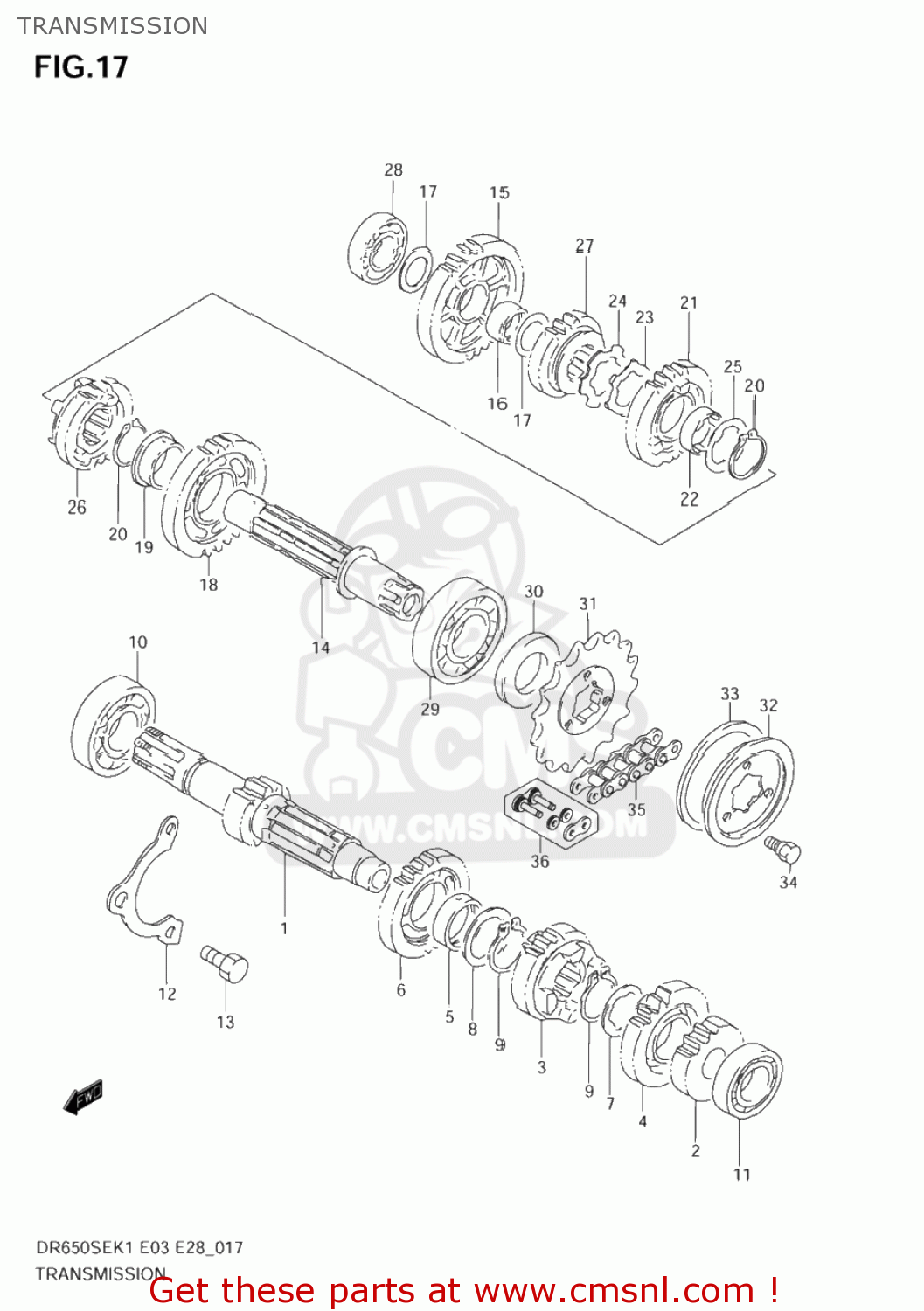

TRANSMISSION

ref

part #

description

quantity

1

2412014810
ref: 1

SHAFT SET,CNTR

€ 175.00

2

2422114A10
ref: 2

GEAR,2ND DRIVE

€ 66.50

3

2423112D20
ref: 3
24231-12D21

GEAR,THIRD DRIVE

€ 73.00

4

2424114A10
ref: 4

GEAR,4TH DRIVE

€ 69.00

5

2425219F00
ref: 5

BUSH

€ 9.50

6

2425114A10
ref: 6

GEAR,5TH DRIVE

€ 69.00

7

0916725012
ref: 7

WASHER,LOCK

€ 3.50

8

0918125167
ref: 8

SHIM(25X34X1)

€ 3.50

9

0938025003
ref: 9

RING,SNAP

€ 3.00

10

0926222028
ref: 10

BEARING(22X56X16)

€ 59.50

11

0926217045
ref: 11
09262-17046

BEARING 17X40X12

€ 23.00

12

2474114A00
ref: 12

RETAINER,CNTR SHAFT BEARING

€ 5.00

13

0150008163
ref: 13
01500-0816B

BOLT

€ 2.00

14

2413014A10
ref: 14

SHAFT,DRIVE

€ 129.50

15

2431114A01
ref: 15

GEAR,1ST DRIVEN

€ 67.50

16

0930020032
ref: 16

BUSH(20X24X13)

€ 10.00

17

0918120195
ref: 17

SHIM(20X30X1)

€ 3.00

18

2432114A10
ref: 18

GEAR,2ND DRIVEN

€ 69.00

19

0930125002
ref: 19

BUSH

€ 10.50

20

0938025003
ref: 20

RING,SNAP

€ 3.00

21

2433114A20
ref: 21

GEAR,3RD DRIVEN

€ 72.50

22

2433224510
ref: 22

BUSH,DRIVEN GEAR

€ 9.50

23

0916925001
ref: 23

WASHER

€ 2.00

24

0916725013
ref: 24

WASHER,LOCK

€ 2.50

25

0916725016
ref: 25

WASHER,LOCK

€ 3.00

26

2434114A10
ref: 26

GEAR,4TH DRIVEN

€ 67.00

27

2435114A10
ref: 27

GEAR,5TH DRIVEN

€ 68.50

28

0926220059
ref: 28

BEARING(20X42X12)

€ 14.50

29

0926225083
ref: 29
09262-25125

BALL BEARING 25X62X17

€ 49.00

30

0928325096
ref: 30

SEAL,OIL(25X44X7)

€ 8.50

31

2751131D00
ref: 31

SPROCKET,ENGINE(15T)

€ 23.50

32

2751244B00
ref: 32

PLATE,ENGINE SPROCKET

€ 4.00

33

2751737400
ref: 33

DAMPER,ENGINE SPROCKET

€ 9.50

34

0911106039
ref: 34

BOLT(6X13)

€ 6.00

35

2760032C10110
ref: 35

CHAIN,DRIVE(DID525V9,110L)

€ 160.00

36

2762032C10
ref: 36

JOINT SET,CHAIN

€ 10.00
