FRAME COVER (MODEL K2)

DR650SE 2003 (K3) USA (E03)

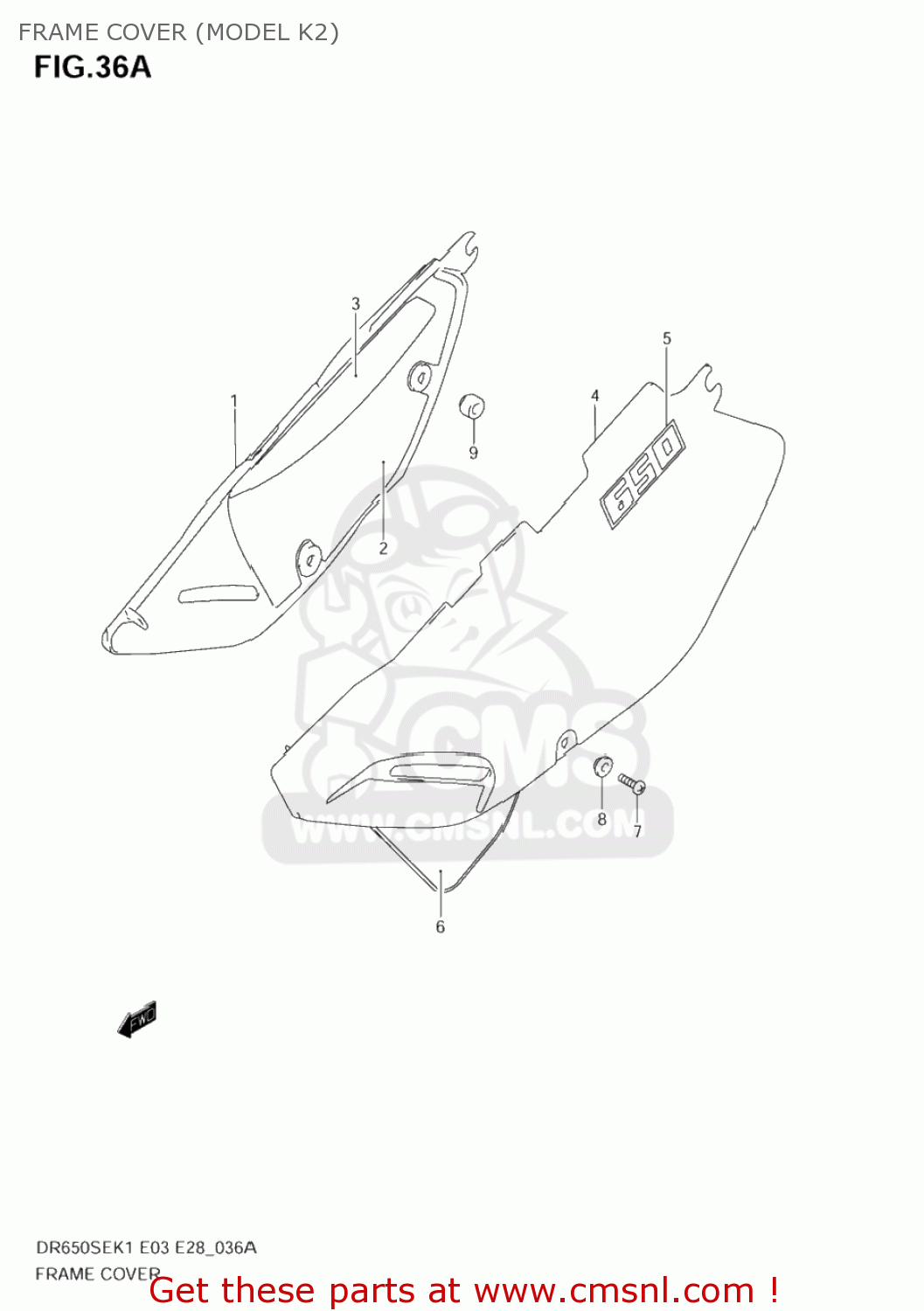

Frame cover (model k2) diagram DR650SE 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4711132E0030H
ref: 1-1
47111-32E10-30H

COVER,FRAME,RIGHT

€ 59.50

1-2

4711132E00YU1
ref: 1-2

COVER,FRAME,R(YELLOW)

€ 0.00

4716632E00
ref: 2

SHIELD,FRAME COVER,R NO.1

€ 27.00

4716732E00
ref: 3

SHIELD,FRAME COVER,R NO.2

€ 10.50

4-1

4721132E0030H
ref: 4-1
47211-32E10-30H

COVER,FRAME,LEFT

€ 61.50

4-2

4721132E00YU1
ref: 4-2

COVER,FRAME,L(YELLOW)

€ 0.00

5-1

6813132E108YM
ref: 5-1

EMBLEM,FRAME COVER

€ 9.50

5-2

6813132E10GY8
ref: 5-2

EMBLEM,FRAME COVER

€ 0.00

6814632E00
ref: 6

TAPE,LWR

€ 9.00

0214206167
ref: 7

SCREW

€ 2.00

0916906028
ref: 8
09169-06041

WASHER

€ 2.00

0932110019
ref: 9

CUSHION

€ 4.50
