OIL PIPE

DR650SE 2003 (K3) USA (E03)

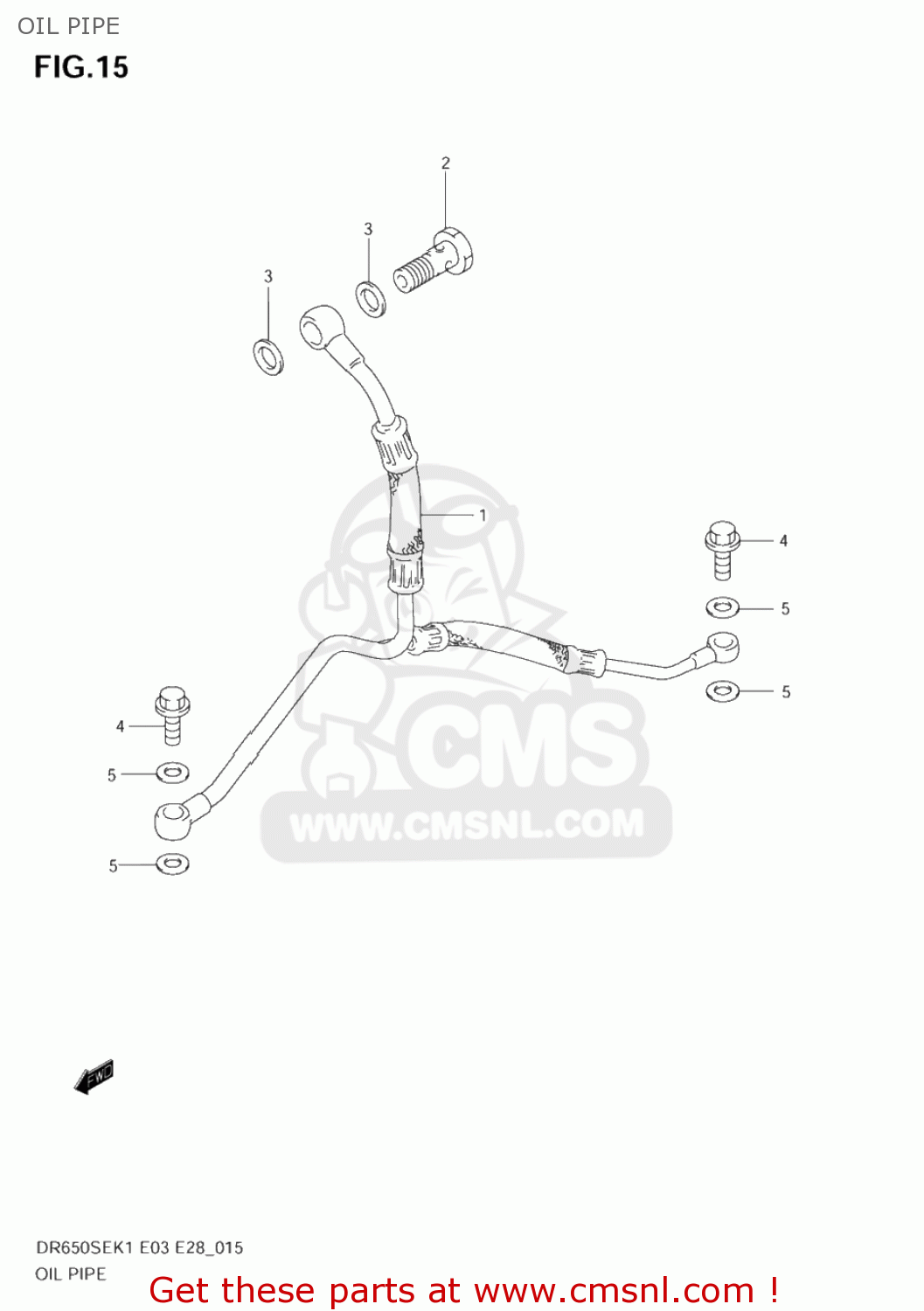

Oil pipe diagram DR650SE 2003 (K3) USA (E03)

OIL PIPE DR650SE 2003 (K3) USA (E03)
OIL PIPE DR650SE 2003 (K3) USA (E03)
OIL PIPE DR650SE 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1648032E10
ref: 1
PIPE,T/M & CSHAFT OIL
1648032E10
€ 117.50
2
0936012008
ref: 2
BOLT UNION
0936012008
€ 7.50
3
0916812017
ref: 3
GASKET(12X17X1) (NAS)
0916812017
€ 2.00
4
0936010032
ref: 4
09360-10055
BOLT UNION
0936010032
€ 3.00
5
0916810007
ref: 5
GASKET(10.1X16X1) (NAS)
0916810007
€ 2.00
