REAR MASTER CYLINDER
DR650SE 2003 (K3) USA (E03)

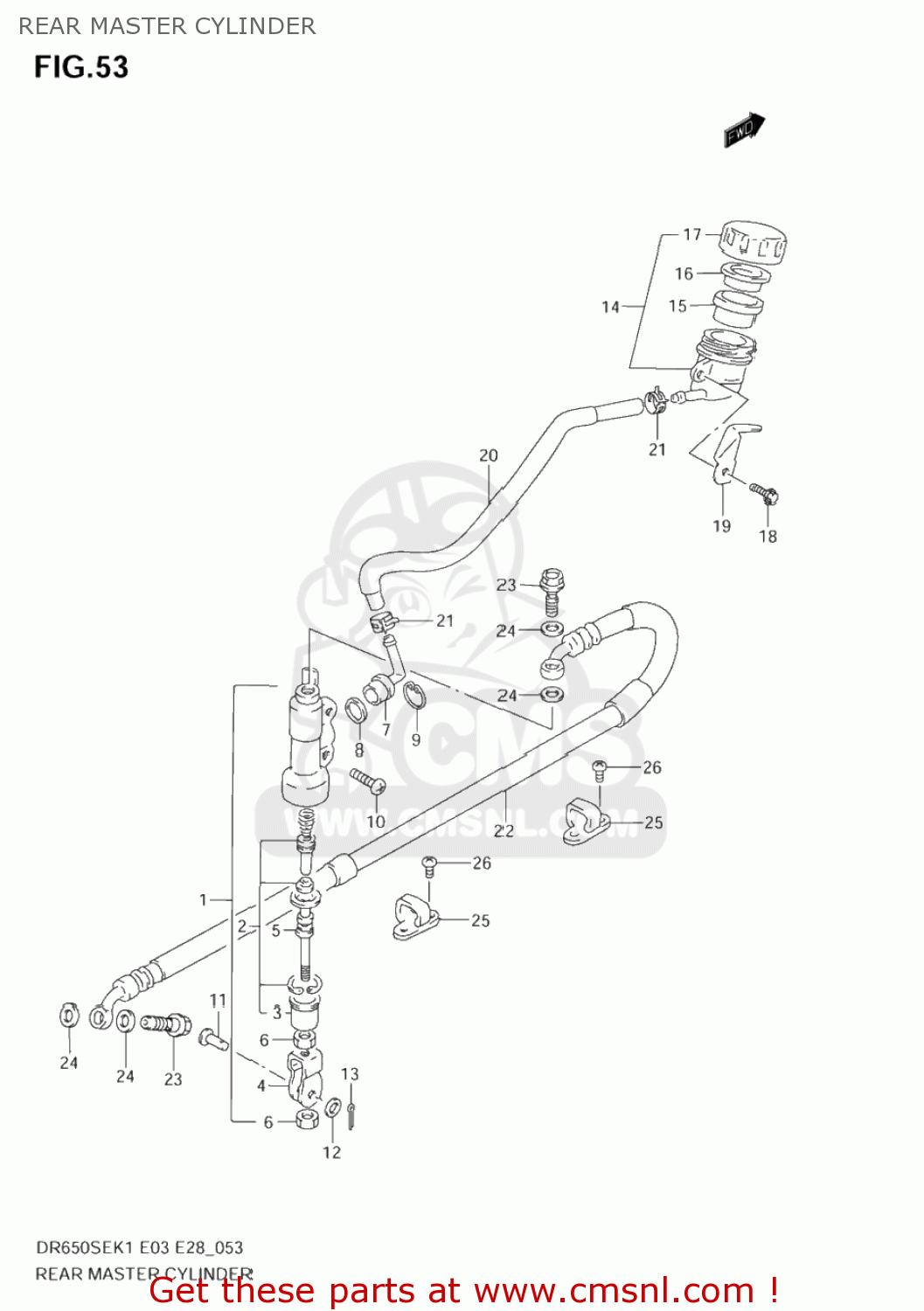

Rear master cylinder diagram DR650SE 2003 (K3) USA (E03)
REAR MASTER CYLINDER DR650SE 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
6960032E00
ref: 1
CYLINDER ASSY,RR MASTER
€ 131.50
2
6960004820
ref: 2
PISTON/CUP SET
€ 31.00
3
6969100A00
ref: 3
BOOT
€ 3.50
4
6969213E00
ref: 4
YOKE
€ 11.00
5
6967027A30
ref: 5
ROD,PUSH
€ 13.50
6
6969305A00
ref: 6
NUT
€ 1.50
7
6967200B20
ref: 7
CONNECTOR
€ 5.00
8
6968634200
ref: 8
O RING
€ 3.50
9
6967400B20
ref: 9
CIRCLIP
€ 3.00
10
0913906067
ref: 10
SCREW(6X16)
€ 3.00
11
0920008048
ref: 11
PIN(8X20)
€ 3.00
12
0916008119
ref: 12
09160-08090
WASHER (8.5X14X1.6)
€ 2.50
13
0411120158
ref: 13
04111-2015A
PIN
€ 1.50
14
6974003D00
ref: 14
TANK ASSY,RR BRAKE RESERVOIR
€ 40.50
15
6966700B20
ref: 15
DIAPHRAGM
€ 9.50
16
6966800B20
ref: 16
PLATE
€ 4.00
17
6966903D00
ref: 17
CAP
€ 11.00
18
0155006163
ref: 18
01550-0616A
BOLT
€ 2.50
19
6974314D10
ref: 19
GUARD,RSVR TANK CAP
€ 4.50
20
6973032E00
ref: 20
HOSE,RESERVOIR TANK
€ 30.50
21
0940112404
ref: 21
CLIP
€ 2.50
22
6948032E00
ref: 22
69480-32E01
HOSE COMP,REAR BRAKE
€ 63.00
23
0936010042
ref: 23
09360-10062
BOLT UNION
€ 5.00
24
0916110009
ref: 24
WASHER(10X15X1.5)
€ 2.00
25
6119627C30
ref: 25
GUIDE,RR BRAKE
€ 5.50
26
0214205103
ref: 26
02142-0510B
SCREW
€ 2.50
