RIGHT HANDLE LEVER
DR650SE 2003 (K3) USA (E03)

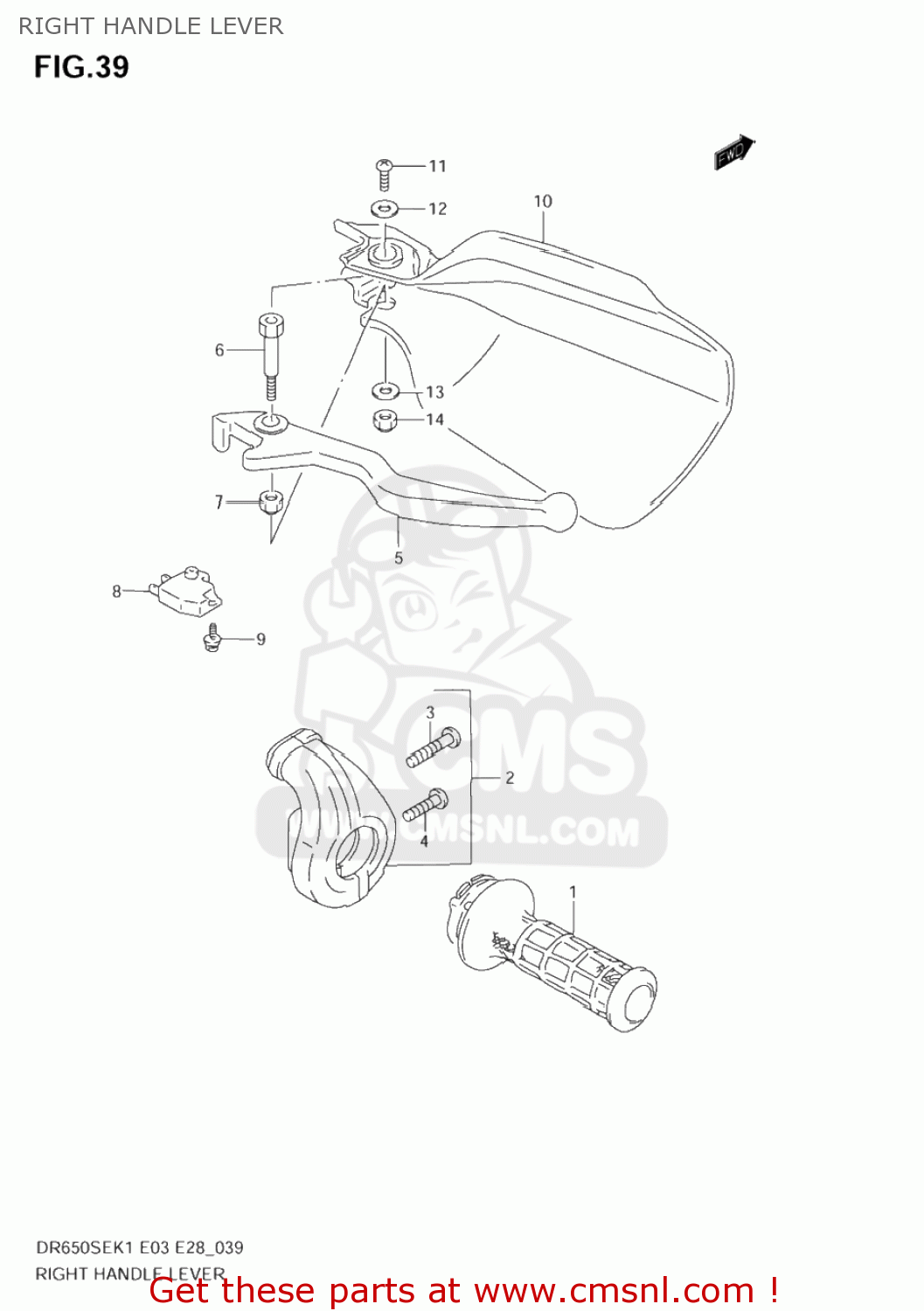

Right handle lever diagram DR650SE 2003 (K3) USA (E03)
RIGHT HANDLE LEVER DR650SE 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
5711012D11
ref: 1
GRIP,THROTTLE
€ 25.50
2
5710014D00
ref: 2
CASE ASSY,THROTTLE
€ 24.00
3
0912505066
ref: 3
SCREW(5X25)
€ 2.00
4
0211205203
ref: 4
02112-0520B
SCREW
€ 2.50
5
5742113001
ref: 5
LEVER,BRAKE
€ 18.00
6
5743105D00
ref: 6
BOLT,BRAKE LEVER PIVOT
€ 9.00
7
5743309F00
ref: 7
NUT,LEVER PIVOT
€ 2.50
8-1
5746017C00
ref: 8-1
57460-17C01
SWITCH ASSEMBLY,STOP
€ 32.50
8-2
5746017C11
ref: 8-2
57460-14J01
SWITCH ASSY,ST
€ 32.50
9
5746517C00
ref: 9
SCREW
€ 1.50
10-1
5734105D00019
ref: 10-1
COVER,KNUCKLE,RIGHT
€ 21.00
10-2
5734105D0030H
ref: 10-2
COVER,KNUCKLE,RIGHT
€ 18.00
10-3
5734105D00YU1
ref: 10-3
COVER, KNUCKLE RH (YELLOW)
€ 25.50
10-4
5734105D00YJ4
ref: 10-4
COVER,KNUCKLE,R
€ 25.50
11
0214205103
ref: 11
02142-0510B
SCREW
€ 2.50
12
0916005043
ref: 12
WASHER(5.5X16X1.2)
€ 2.50
13
0916006130
ref: 13
WASHER(6.5X16X1.6)
€ 2.00
14
0831921068
ref: 14
08319-2106A
NUT 6MM
€ 2.00
