CRANKCASE COVER
GN125E 1989 (K) SINGAPORE (E30)

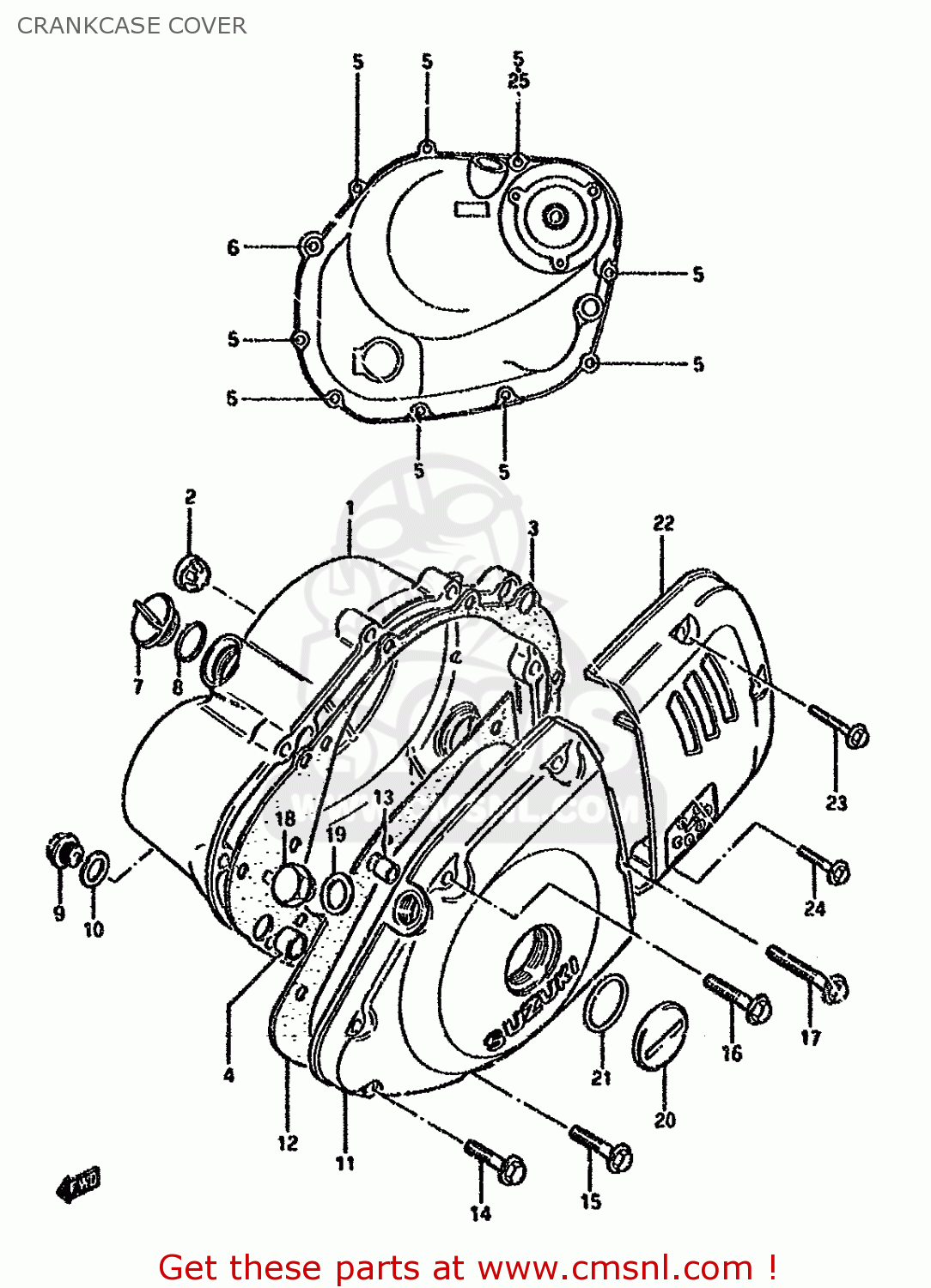

Crankcase cover diagram GN125E 1989 (K) SINGAPORE (E30)
CRANKCASE COVER GN125E 1989 (K) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
1134005302
ref: 1
COVER,CLUTCH
€ 112.50
2
1197145010
ref: 2
LENS,OIL LEVEL CHECK
€ 13.00
3
1148205311
ref: 3
-11482-05310
GASKET,CLUTCH COVER (NAS)
€ 16.00
4
0421113189
ref: 4
PIN
€ 2.50
5
0154706307
ref: 5
BOLT
€ 2.50
6
0154706457
ref: 6
BOLT
€ 2.50
7-1
0925920007
ref: 7-1
MODEL Z/D/K/M/N
PLUG(20X10)
€ 6.50
7-2
0925920018
ref: 7-2
MODEL R
PLUG (20X10)
€ 6.50
8
0928017003
ref: 8
O RING(D:3.1,ID:16.8)
€ 2.00
9-1
0924714012
ref: 9-1
MODEL Z/D/K/M/N
PLUG (14X12)
€ 3.50
9-2
0924714026
ref: 9-2
MODEL R
PLUG(14X12)
€ 3.50
10
0916814002
ref: 10
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
11
1135105302
ref: 11
COVER,MAGNETO
€ 100.00
12
1148305311
ref: 12
-11483-05310
GASKET,MAGNETO COVER (NAS)
€ 8.50
13
0421109129
ref: 13
PIN
€ 2.00
14
0154706307
ref: 14
BOLT
€ 2.50
15
0154706357
ref: 15
BOLT
€ 2.50
16
0154706407
ref: 16
BOLT
€ 2.50
17
0154706507
ref: 17
BOLT
€ 2.50
18
0924712104
ref: 18
PLUG,12X9
€ 2.50
19
0916812002
ref: 19
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
20
0925926011
ref: 20
-09259-26003
PLUG(26X9)
€ 8.50
21
0928022008
ref: 21
O RING(D:3.1,ID:22.7)
€ 2.50
22-1
1136105300
ref: 22-1
MODEL Z/D/K/M/N
COVER,SPROCKET
€ 22.50
22-2
1136105301
ref: 22-2
MODEL R
COVER,ENGINE SPROCKET
€ 22.50
23
0154705357
ref: 23
BOLT
€ 2.50
24
0154705257
ref: 24
BOLT
€ 2.00
25-1
0916806023
ref: 25-1
MODEL Z/D/K/M/N
GASKET(5.8X13X1.2) (NAS)
€ 2.00
25-2
0916806024
ref: 25-2
MODEL R
GASKET(5.8X11X1.2) (NAS)
€ 2.00
