REAR BRAKE
GN125E 1989 (K) SINGAPORE (E30)

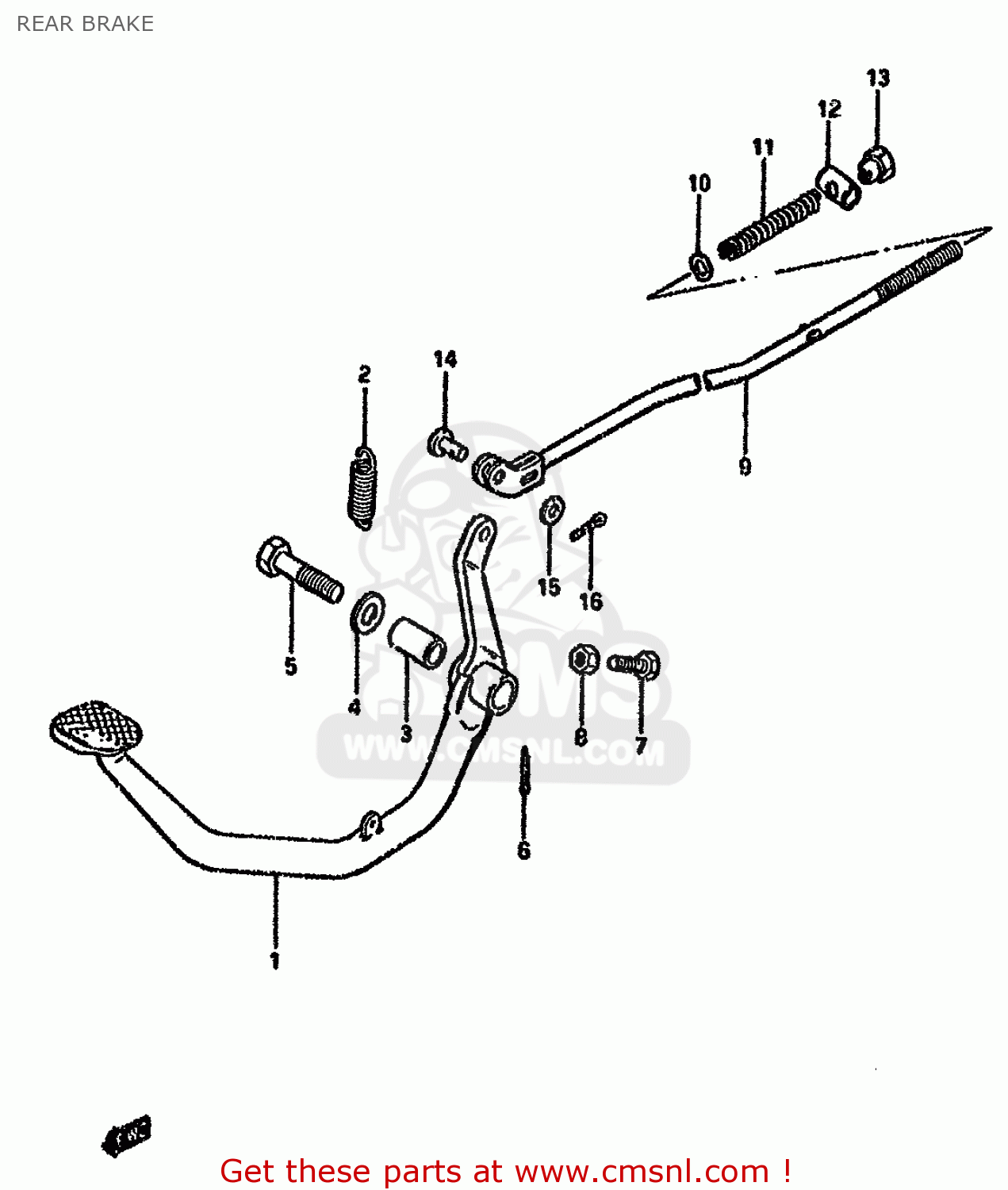

Rear brake diagram GN125E 1989 (K) SINGAPORE (E30)
REAR BRAKE GN125E 1989 (K) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1-1
4311005300
ref: 1-1
MODEL Z/D/K
PEDAL,BRAKE
€ 37.00
1-2
4311005301
ref: 1-2
MODEL M/N/R
PEDAL,BRAKE
€ 37.00
2
0944314015
ref: 2
SPRING
€ 3.00
3
4323105302
ref: 3
SPACER,BRAKE PEDAL BOSS
€ 7.00
4
0832211107
ref: 4
WASHER
€ 2.50
5-1
0910110020
ref: 5-1
MODEL Z/D/K/M
BOLT 10X52
€ 9.50
5-2
0911610121
ref: 5-2
MODEL N/R
BOLT(10X52)
€ 4.50
6
0411120208
ref: 6
PIN 20X20
€ 1.50
7-1
0912806028
ref: 7-1
MODEL Z/D/K/M
SCREW(6X23)
€ 2.00
7-2
0910006009
ref: 7-2
MODEL N/R
BOLT(6X23)
€ 1.50
8-1
0831011067
ref: 8-1
MODEL Z/D/K/M/N
NUT 6MM
€ 2.50
8-2
0831000063
ref: 8-2
MODEL R
NUT 6MM
€ 2.00
9-1
4330026500
ref: 9-1
MODEL Z/D/K
ROD ASSEMBLY,REAR BRAKE
€ 18.50
9-2
4330026501
ref: 9-2
MODEL M/R
ROD ASSY,RR BRAKE
€ 18.50
9-3
4330026510
ref: 9-3
E30
ROD ASSY,RR BRAKE
€ 18.50
10-1
0832221067
ref: 10-1
MODEL Z/D/K/M/N
WASHER
€ 2.00
10-2
0832201063
ref: 10-2
MODEL R
WASHER
€ 2.00
11
0944009004
ref: 11
SPRING
€ 2.00
12
0920911002
ref: 12
PIN(11X18)
€ 2.00
13-1
0915006001
ref: 13-1
MODEL Z
NUT
€ 3.50
13-2
0915006009
ref: 13-2
MODEL D/K/M/N/R
NUT (6MM)
€ 3.50
14
0920006013
ref: 14
PIN(L:13.5)
€ 2.00
15-1
0832221067
ref: 15-1
MODEL Z/D/K/M/N
WASHER
€ 2.00
15-2
0832201063
ref: 15-2
MODEL R
WASHER
€ 2.00
16
0411120208
ref: 16
PIN 20X20
€ 1.50
