FUEL TANK (MODEL Z)

GN125E 1989 (K) SINGAPORE (E30)

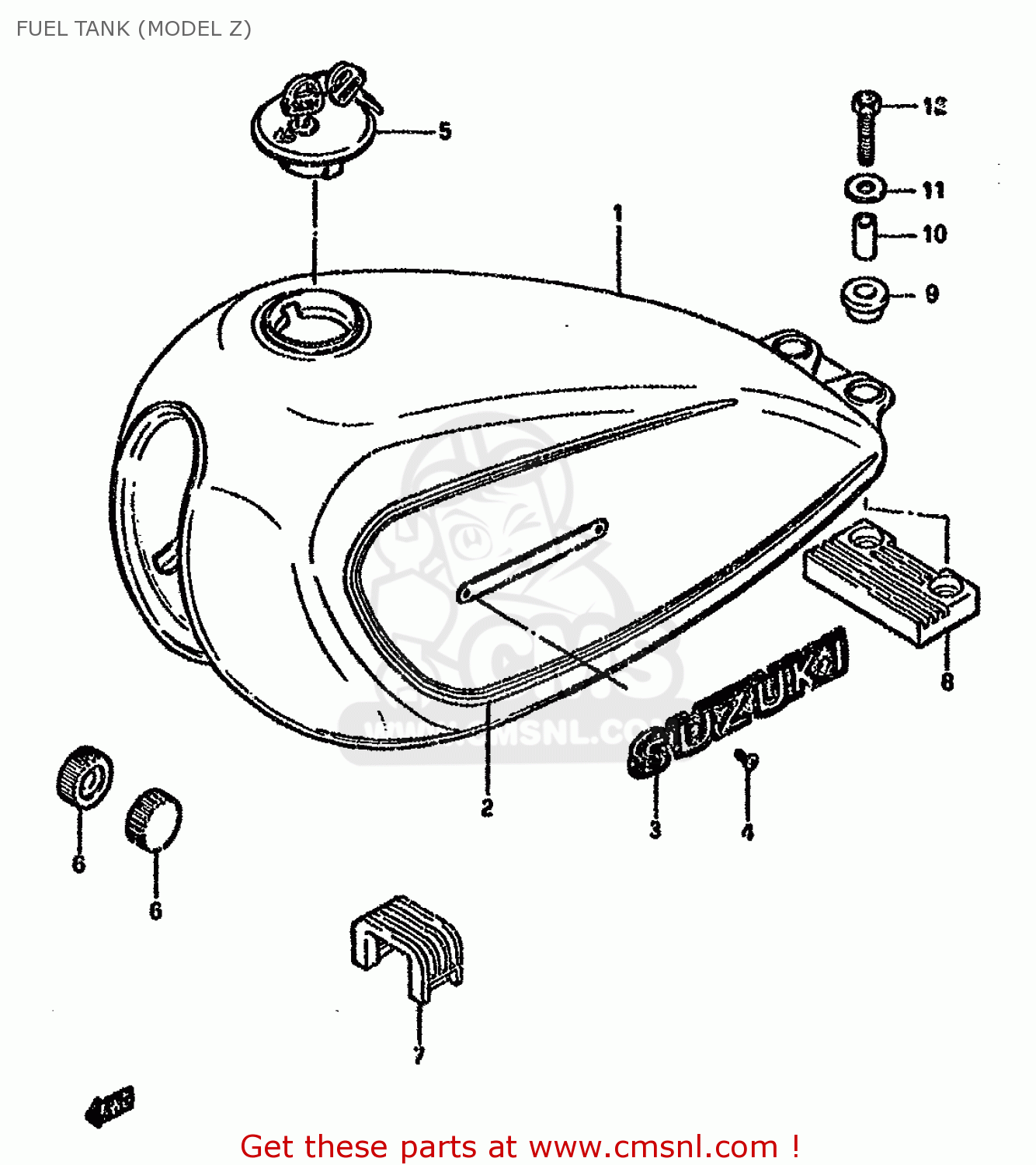

Fuel tank (model z) diagram GN125E 1989 (K) SINGAPORE (E30)

FUEL TANK (MODEL Z) GN125E 1989 (K) SINGAPORE (E30)

FUEL TANK (MODEL Z) GN125E 1989 (K) SINGAPORE (E30)

prices are in EUR

ref

part #

description

quantity

1-1

4410038300019
ref: 1-1

TANK ASSEMBLY,FUEL

€ 346.00

1-2

441003830004Y
ref: 1-2

TANK,FUEL (BLUE)

€ 346.00

1-3

441003830000J
ref: 1-3

TANK,FUEL (RED)

€ 346.00

2

6811038300764
ref: 2

TAPE SET,FUEL TANK

€ 0.00

3

6811137300
ref: 3

EMBLEM,FUEL TANK

€ 14.00

4

0213203065
ref: 4

SCREW 3X6

€ 2.00

5

4420030704
ref: 5

CAP SET,FUEL TANK

€ 112.00

6

0932910016
ref: 6

CUSHION

€ 3.00

7

4454105300
ref: 7

CUSHION,FUEL TANK UPR FR

€ 10.50

8

4454238300
ref: 8

CUSHION,TANK RR NO.1

€ 8.00

9

0932010022
ref: 9

CUSHION

€ 2.50

10

0918006067
ref: 10

SPACER(6.5X10.5X22.5)

€ 2.50

11

0916006012
ref: 11

WASHER(6,5X22X1.6)

€ 2.00

12

0910006033
ref: 12

BOLT(6X35)

€ 12.50
