STARTER CLUTCH
GN125E 1989 (K) SINGAPORE (E30)

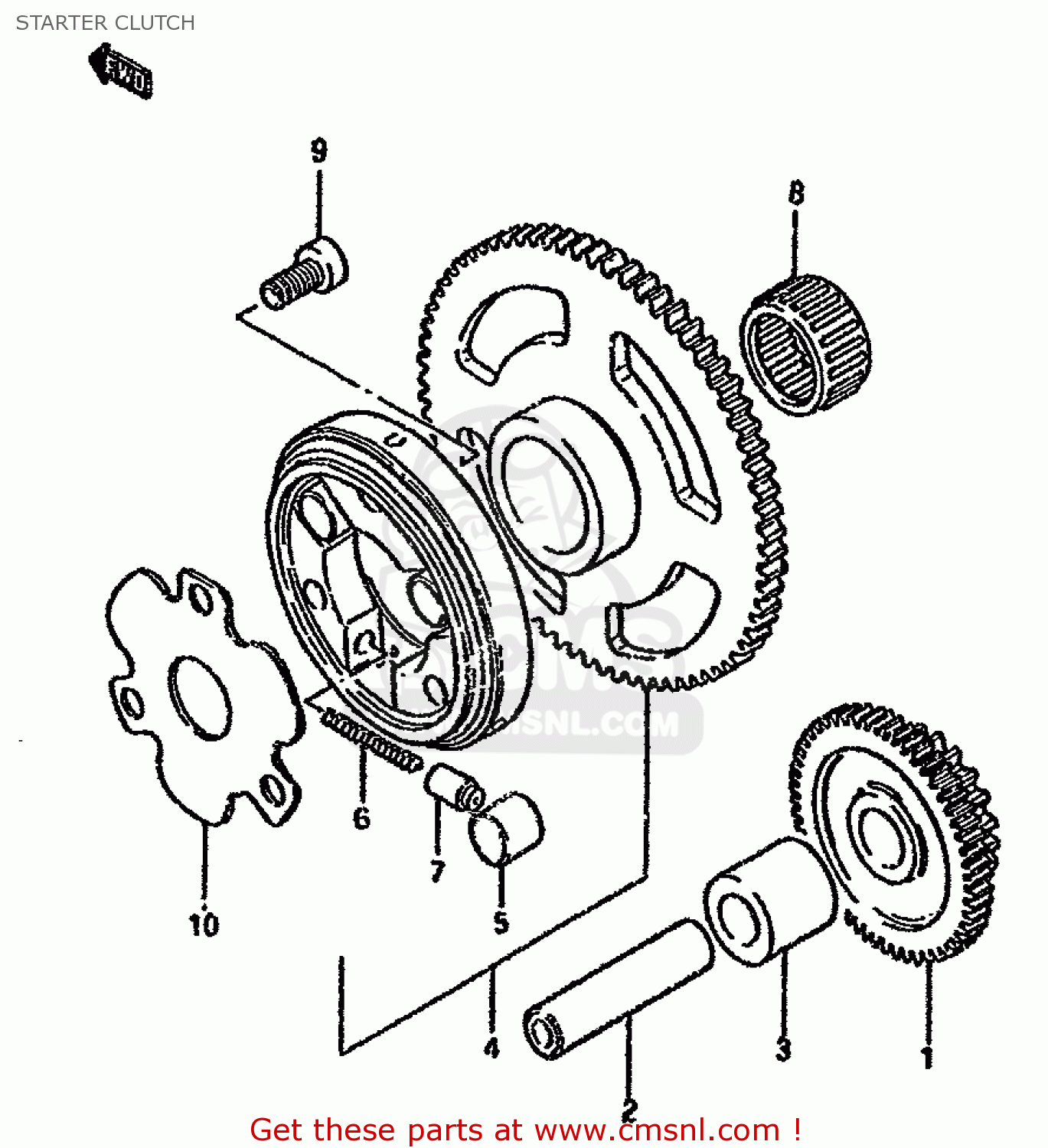

Starter clutch diagram GN125E 1989 (K) SINGAPORE (E30)
STARTER CLUTCH GN125E 1989 (K) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
1261105300
ref: 1
GEAR,STARTER IDLER
€ 50.00
2
0920613003
ref: 2
PIN(7.4X13X56)
€ 9.00
3
0918013006
ref: 3
SPACER(13X19X19)
€ 3.50
4
1260005872
ref: 4
-12600-05871
CLUTCH SET,STARTER
€ 132.50
5
0926110003
ref: 5
ROLLER(10X11)
€ 2.50
6
0944003004
ref: 6
SPRING
€ 1.00
7
1263305300
ref: 7
PIECE,STARTER CLUTCH PUSH
€ 6.50
8
0926322031
ref: 8
BEARING(22X28X16)
€ 18.00
9
0713006163
ref: 9
BOLT,OIL FILLE
€ 3.00
10
1264905300
ref: 10
SHIM,STARTER CLUTCH HUB
€ 5.50
