REAR COMBINATION LAMP (E2,E4,E21,E34)

GN125E 1989 (K) SINGAPORE (E30)

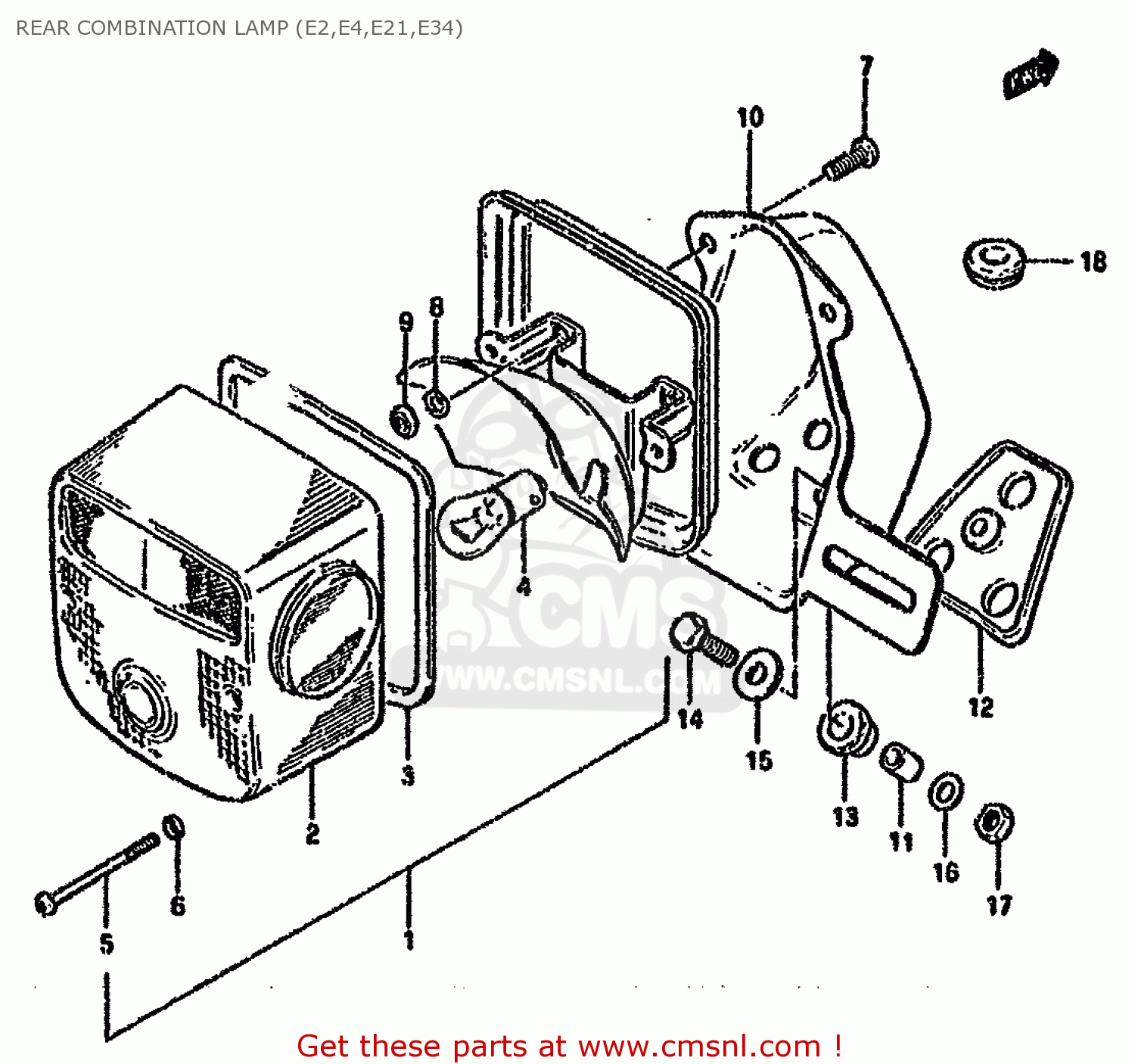

Rear combination lamp (e2,e4,e21,e34) diagram GN125E 1989 (K) SINGAPORE (E30)

REAR COMBINATION LAMP (E2,E4,E21,E34) GN125E 1989 (K) SINGAPORE (E30)
REAR COMBINATION LAMP (E2,E4,E21,E34) GN125E 1989 (K) SINGAPORE (E30)
REAR COMBINATION LAMP (E2,E4,E21,E34) GN125E 1989 (K) SINGAPORE (E30)
prices are in EUR
ref
part #
description
quantity
1-1
3572038320
ref: 1-1
REFLEX REFLECTOR:RR3
LAMP UNIT,TAIL
€ 138.00
1-2
3572038321
ref: 1-2
REFLEX REFLECTOR:RR0
LAMP UNIT,TAIL
€ 138.00
1-3
3572038350
ref: 1-3
MODEL M/R
LAMP UNIT,RR COMBNATION
€ 138.00
2-1
3571248623
ref: 2-1
RR35950
LENS
3571248623
€ 66.00
2-2
3571211323
ref: 2-2
RR016
LENS
€ 66.00
2-3
3571238350
ref: 2-3
MODEL M/R
LENS
3571238350
€ 66.00
3
3571330510
ref: 3
GASKET (NAS)
3571330510
€ 6.00
4-1
0947112057
ref: 4-1
MODEL Z/D/K
BULB 12V21/5W
0947112057
€ 6.00
4-2
0947112046
ref: 4-2
MODEL M/R
BULB(12V21/5W)
0947112046
€ 1.50
5
0912504002
ref: 5
SCREW (4X55)
0912504002
€ 1.50
6
3562743010
ref: 6
GASKET (NAS)
3562743010
€ 2.00
7
0211206128
ref: 7
SCREW 6X12
0211206128
€ 2.00
8
0832121067
ref: 8
WASHER,LOCK
0832121067
€ 2.50
9
0831011067
ref: 9
NUT 6MM
€ 2.50
10
3573038310
ref: 10
BRACKET UNIT,TAIL LAMP
3573038310
€ 57.50
11
3576626470
ref: 11
SPACER
3576626470
€ 2.00
12
3576526470
ref: 12
CUSHION
3576526470
€ 10.00
13
3576426470
ref: 13
CUSHION
3576426470
€ 2.50
14-1
0110706257
ref: 14-1
MODEL Z/D/K
BOLT
€ 2.00
14-2
0911606011
ref: 14-2
MODEL M/R
BOLT 6X20
€ 2.00
15
0916006027
ref: 15
WASHER (6.5X20X1.2)
0916006027
€ 2.00
16
0832221067
ref: 16
WASHER
0832221067
€ 2.00
17
0831011067
ref: 17
NUT 6MM
€ 2.50
18
0930809004
ref: 18
GROMMET
€ 0.00
