FUEL COCK
GN125E 1989 (K) SINGAPORE (E30)

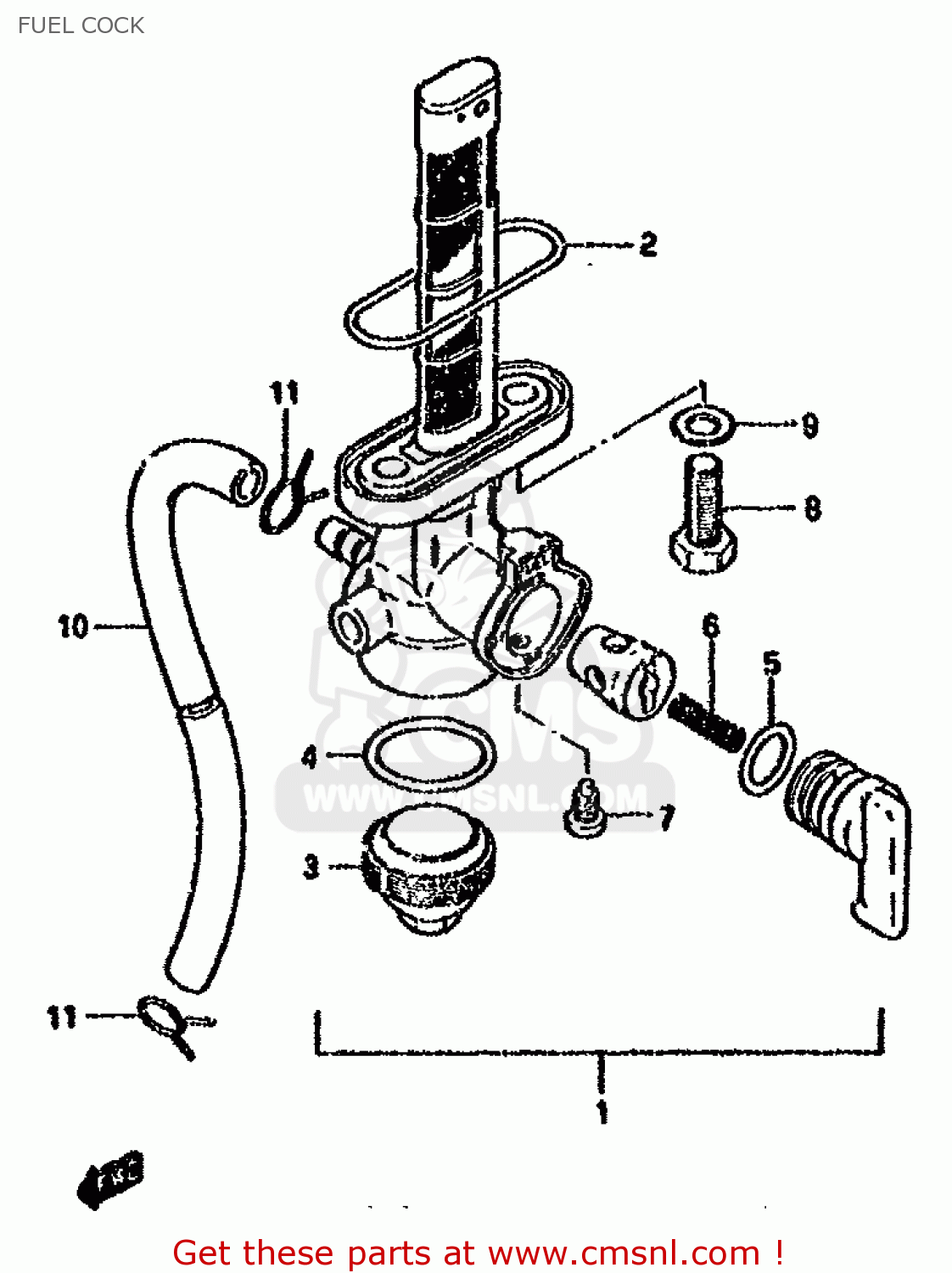

Fuel cock diagram GN125E 1989 (K) SINGAPORE (E30)
FUEL COCK GN125E 1989 (K) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1-1
4430022072
ref: 1-1
MODEL Z
COCK ASSEMBLY,FUEL
€ 65.50
1-2
4430022074
ref: 1-2
MODEL D/K/M/N/R
COCK ASSEMBLY,FUEL
€ 65.50
2
4434828070
ref: 2
O RING,FUEL COCK
€ 4.50
3
4434728071
ref: 3
CUP,STRAINER
€ 7.50
4
4434628070
ref: 4
GASKET,FILTER (NAS)
€ 2.50
5
4435312C00
ref: 5
O-RING,LEVER
€ 7.50
6
4435732470
ref: 6
SPRING
€ 2.00
7
4434341370
ref: 7
SCREW
€ 2.00
8
0912806006
ref: 8
BOLT(6X20)
€ 2.00
9
0916806026
ref: 9
GASKET(6.4X11.5X0.8) (NAS)
€ 3.50
10-1
0934305129
ref: 10-1
MODEL Z/D
HOSE
€ 13.00
10-2
0935250823600
ref: 10-2
MODEL K/M/N/R
HOSE(5X8.2X600)
€ 13.00
11
0940108401
ref: 11
CLIP
€ 1.50
