HANDLEBAR-FRONT CABLE (MODEL N,GN125ER)

GN125E 1989 (K) SINGAPORE (E30)

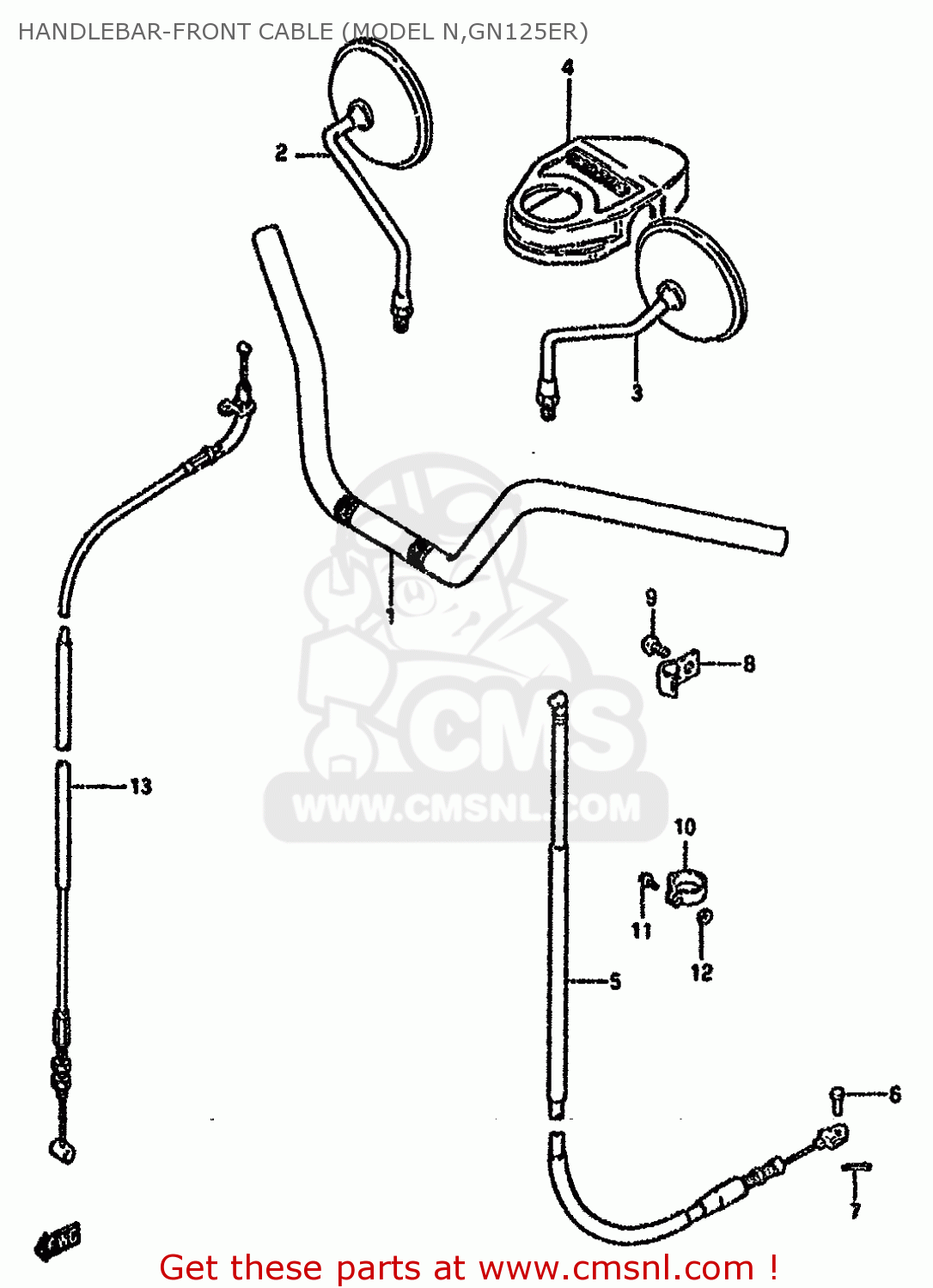

Handlebar-front cable (model n,gn125er) diagram GN125E 1989 (K) SINGAPORE (E30)

HANDLEBAR-FRONT CABLE (MODEL N,GN125ER) GN125E 1989 (K) SINGAPORE (E30)
HANDLEBAR-FRONT CABLE (MODEL N,GN125ER) GN125E 1989 (K) SINGAPORE (E30)
HANDLEBAR-FRONT CABLE (MODEL N,GN125ER) GN125E 1989 (K) SINGAPORE (E30)
prices are in EUR
ref
part #
description
quantity
1
5611005320
ref: 1
HANDLEBAR
€ 185.50
2
5650044200
ref: 2
MIRROR ASSEMBLY,RIGHT
5650044200
€ 72.00
3
5660044200
ref: 3
MIRROR ASSEMBLY,LEFT
5660044200
€ 72.00
4
5617005300
ref: 4
COVER,STEERING HEAD
5617005300
€ 11.50
5
5820005391
ref: 5
CABLE ASSEMBLY,CLUTCH
5820005391
€ 23.50
6
0920006004
ref: 6
PIN(L:13)
0920006004
€ 1.50
7
0411120158
ref: 7
PIN
0411120158
€ 1.50
8
5862637400
ref: 8
CLAMP,CLUTCH CABLE NO.1
€ 11.50
9-1
0215206108
ref: 9-1
MODEL N
SCREW
€ 2.00
9-2
0211216103
ref: 9-2
MODEL R
SCREW
€ 2.00
10
5828505350
ref: 10
CLAMP,CABLE
€ 4.00
11-1
0211205164
ref: 11-1
MODEL N
SCREW
0211205164
€ 2.00
11-2
0211205163
ref: 11-2
MODEL R
SCREW
0211205163
€ 2.00
12-1
0831022055
ref: 12-1
MODEL N
NUT 5MM
0831022055
€ 2.00
12-2
0831000053
ref: 12-2
MODEL R
NUT
€ 2.50
13
5830005320
ref: 13
CABLE ASSY,THROTTLE
5830005320
€ 43.50
14-2
0920006004
ref: 14-2
MODEL M/R
PIN(L:13)
0920006004
€ 1.50
15
0411120158
ref: 15
PIN
0411120158
€ 1.50
16
5862637400
ref: 16
CLAMP,CLUTCH CABLE NO.1
€ 11.50
17-1
0215206108
ref: 17-1
MODEL Z/D/K/M
SCREW
€ 2.00
17-2
0211216103
ref: 17-2
MODEL R
SCREW
€ 2.00
18
5828505350
ref: 18
CLAMP,CABLE
€ 4.00
19-1
0211205164
ref: 19-1
MODEL Z/D/K/M
SCREW
0211205164
€ 2.00
19-2
0211205163
ref: 19-2
MODEL R
SCREW
0211205163
€ 2.00
20-1
0831022055
ref: 20-1
MODEL Z/D/K/M
NUT 5MM
0831022055
€ 2.00
20-2
0831000053
ref: 20-2
MODEL R
NUT
€ 2.50
21
0940408402
ref: 21
MODEL Z/D/K
CLAMP
0940408402
€ 3.50
22
5830005302
ref: 22
CABLE ASSY,THROTTLE
5830005302
€ 27.50
23
0940718301
ref: 23
MODEL Z/D/K
CLAMP
0940718301
€ 6.00
