FOOTREST
GN125E 1989 (K) SINGAPORE (E30)

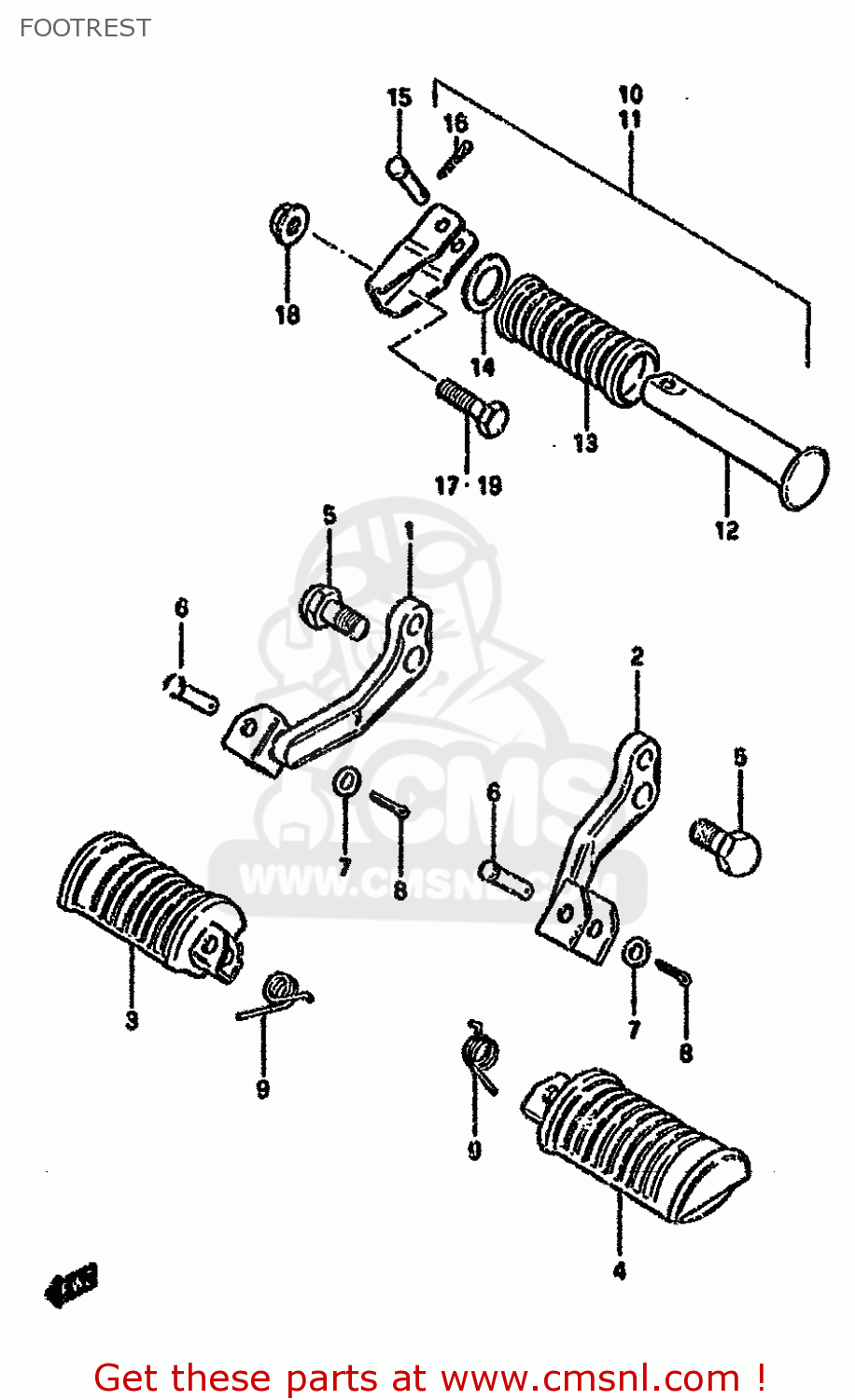

Footrest diagram GN125E 1989 (K) SINGAPORE (E30)
FOOTREST GN125E 1989 (K) SINGAPORE (E30)
×
prices are in EUR
ref
part #
description
quantity
1
4351005330
ref: 1
HOLDER,FR FOOTREST,R
€ 35.50
2
4352005330
ref: 2
HOLDER,FR FOOTREST,L
€ 35.50
3
4355037301
ref: 3
RUBBER,PILLION FOOTREST,R
€ 22.50
4
4356037301
ref: 4
RUBBER,PILLION FOOTREST,L
€ 22.50
5
0155012257
ref: 5
BOLT
€ 2.50
6
0920008002
ref: 6
PIN
€ 2.00
7
0832211088
ref: 7
MODEL Z/D/K/M/N
WASHER
€ 2.00
8
0411120208
ref: 8
PIN 20X20
€ 1.50
9
0944814012
ref: 9
SPRING
€ 3.00
10-1
4360005301
ref: 10-1
MODEL Z/R
FOOTREST ASSY,PILLION,R
€ 21.00
10-2
4360005310
ref: 10-2
MODEL D/K/M/N
FOOTREST ASSEMBLY,REAR,RIGHT
€ 44.00
11-1
4370005301
ref: 11-1
MODEL Z/R
FOOTREST ASSY,PILLION,L
€ 21.00
11-2
4370005310
ref: 11-2
MODEL D/K/M/N
FOOTREST ASSY,PILLION,L
€ 44.00
12-1
4361003001
ref: 12-1
MODEL Z/R
BAR,FOOTREST RUBBER
€ 5.50
12-2
4361038300
ref: 12-2
MODEL D/K/M/N
BAR,PILLION FOOTREST
€ 21.50
13
4361233200
ref: 13
RUBBER,PILLION FOOTREST
€ 4.50
14
0916019006
ref: 14
WASHER (19.5X32X2)
€ 2.00
15
0920006033
ref: 15
PIN
€ 2.00
16-1
0411120208
ref: 16-1
MODEL Z/R
PIN 20X20
€ 1.50
16-2
0411120158
ref: 16-2
MODEL D/K/M/N
PIN
€ 1.50
17-1
0151710458
ref: 17-1
MODEL Z/D/K/M/N
BOLT 10X45
€ 3.00
17-2
0155010453
ref: 17-2
MODEL R
BOLT
€ 3.00
18-1
0831616108
ref: 18-1
MODEL Z/D/K/M/N
NUT
€ 2.00
18-2
0831610103
ref: 18-2
MODEL R
NUT
€ 2.00
19-1
0151710257
ref: 19-1
MODEL Z/D/K/M/N
BOLT
€ 3.00
19-2
0155010253
ref: 19-2
MODEL R
BOLT
€ 3.00
