CYLINDER

GN250 1985 (F) (E02 E22 E24 E39 E95)

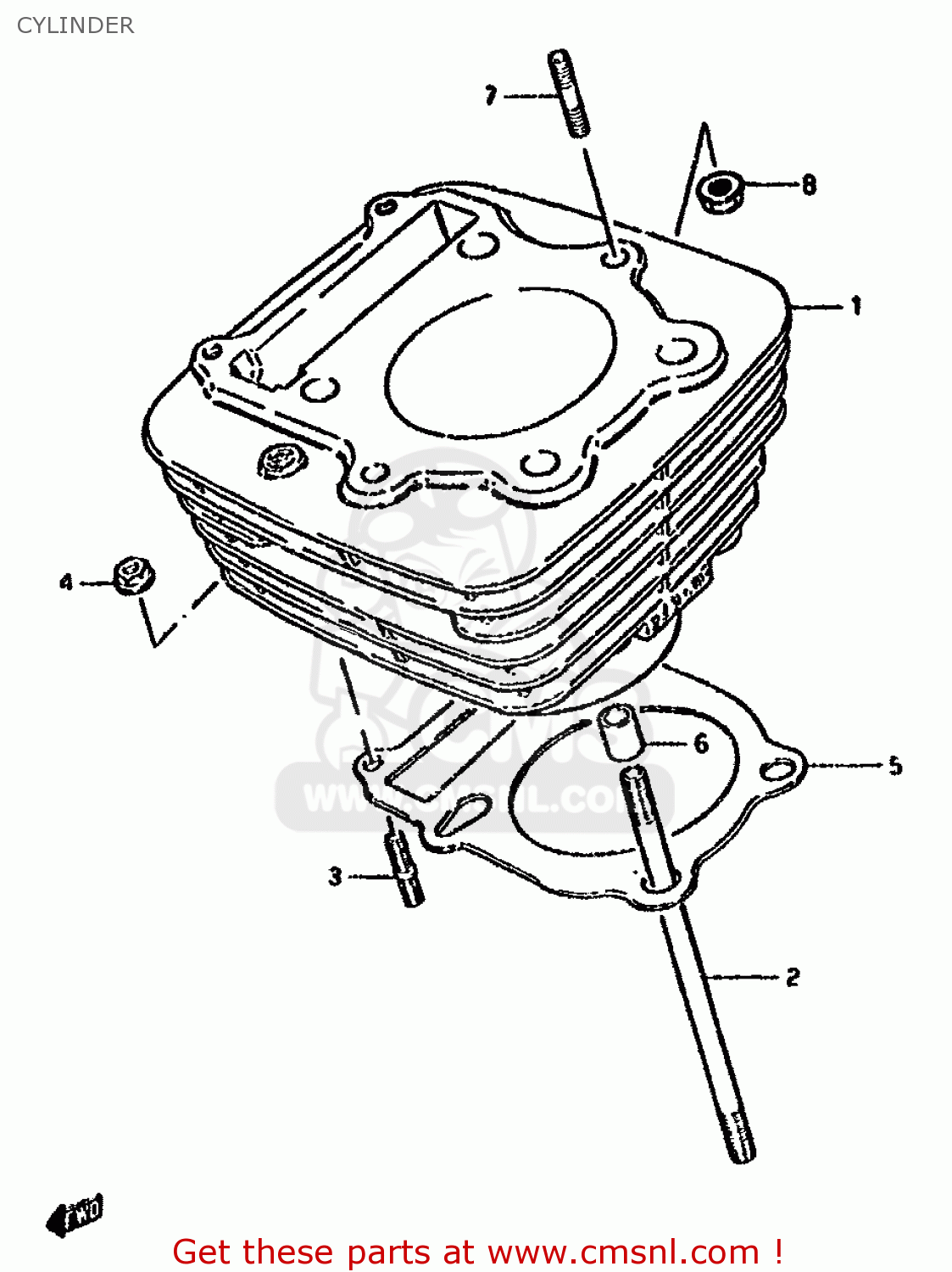

Cylinder diagram GN250 1985 (F) (E02 E22 E24 E39 E95)

CYLINDER GN250 1985 (F) (E02 E22 E24 E39 E95)

CYLINDER GN250 1985 (F) (E02 E22 E24 E39 E95)

prices are in EUR

ref

part #

description

quantity

1

1121038201
ref: 1

CYLINDER

€ 1,003.50

2

0910810030
ref: 2

BOLT,STUD

€ 7.50

3

0142106258
ref: 3

STUD 6X25

€ 2.50

4-1

0915906017
ref: 4-1
MODEL F/J/K/L/M/N/P

NUT

€ 2.50

4-2

0831610067
ref: 4-2
MODEL R

NUT

€ 2.00

5

1124138300
ref: 5

GASKET,CYLINDER (NAS)

€ 9.50

6

0920613001
ref: 6

PIN

€ 2.50

7

0142106308
ref: 7

STUD 6X30

€ 2.50

8-1

0915906017
ref: 8-1
MODEL F/J/K/L/M/N/P

NUT

€ 2.50

8-2

0915910069
ref: 8-2
MODEL R

NUT

€ 5.00
