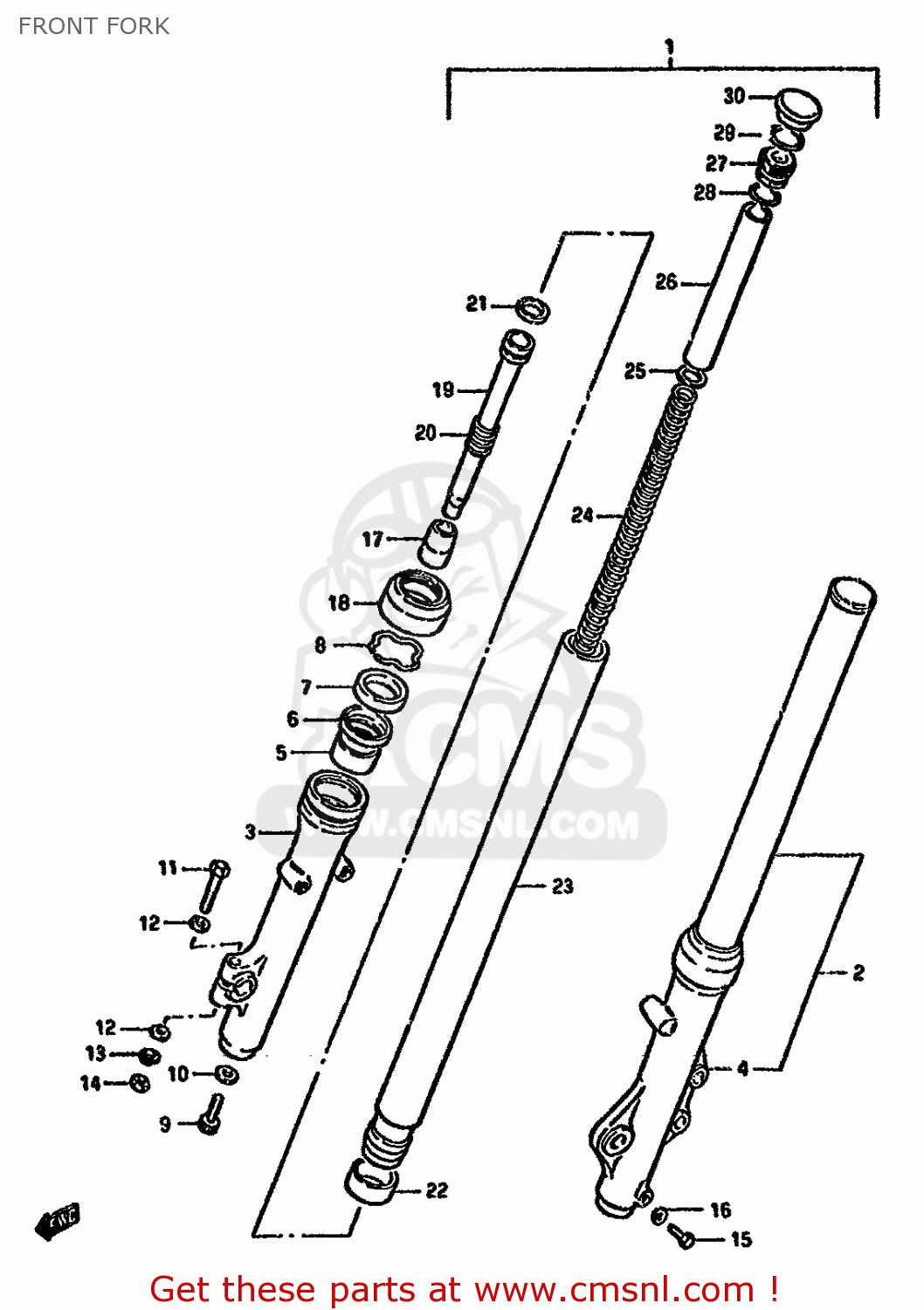

FRONT FORK

ref

part #

description

quantity

1

5110338301
ref: 1
-51103-38300

DAMPER ASSEMBLY,RIGHT

€ 447.00

2

5110438311
ref: 2
-51104-38310

DAMPER ASSEMBLY,LEFT

€ 447.00

3

5113038300
ref: 3

TUBE,FORK,OUTER,RIGHT

€ 272.00

4

5114038310
ref: 4

TUBE,FORK,LEFT,OUTER

€ 272.00

5

5115211420
ref: 5

BUSH,GUIDE

€ 16.50

6

5116844030
ref: 6

SPACER,OIL SEAL

€ 4.50

7

5115302B00
ref: 7
-51153-37310

SEAL,OIL

€ 15.00

8-1

5115633130
ref: 8-1
MODEL F/J

CIRCLIP,FORK OIL SEAL

€ 4.50

8-2

5115602B00
ref: 8-2
MODEL K/L/M/N/P/R

RING,OIL SEAL STOPPER

€ 4.50

9

5114748130
ref: 9

BOLT(8X27)

€ 3.50

10

5114836011
ref: 10

GASKET (NAS)

€ 4.00

11

0110708508
ref: 11

BOLT 8X50

€ 3.00

12

0832221088
ref: 12

WASHER

€ 2.00

13

0832121088
ref: 13

LOCK WASHER

€ 2.00

14

0831012088
ref: 14

NUT

€ 2.00

15

0110706088
ref: 15

BOLT

€ 2.50

16

5118331030
ref: 16

GASKET,DRAIN,PLUG (NAS)

€ 4.00

17

5119548000
ref: 17
-51195-38300

PIECE,OIL LOCK

€ 8.50

18

5157137310
ref: 18

DUST SEAL

€ 22.00

19

5114638300
ref: 19

CYLINDER

€ 42.00

20

5117736030
ref: 20

SPRING,REBOUND

€ 4.50

21

5119633130
ref: 21

RING,PISTON

€ 7.50

22

5112111420
ref: 22

BUSH

€ 16.50

23

5111038300
ref: 23

TUBE,INNER

€ 217.00

24

5117138300
ref: 24

SPRING

€ 32.50

25

5117236331
ref: 25

SEAT,SPRING

€ 2.50

26

5117636331
ref: 26

SPACER,FRONT FORK SPRING

€ 4.00

27

5117548500
ref: 27

SEAT,SPRING

€ 9.00

28

5118133131
ref: 28

O RING

€ 5.00

29

5116948500
ref: 29
-51196-48500

RING,STOPPER

€ 2.00

30

5118944031
ref: 30

CAP

€ 7.00

all assemblies
