FRONT FENDER-HEADLAMP HOUSING

GN250 1985 (F) (E02 E22 E24 E39 E95)

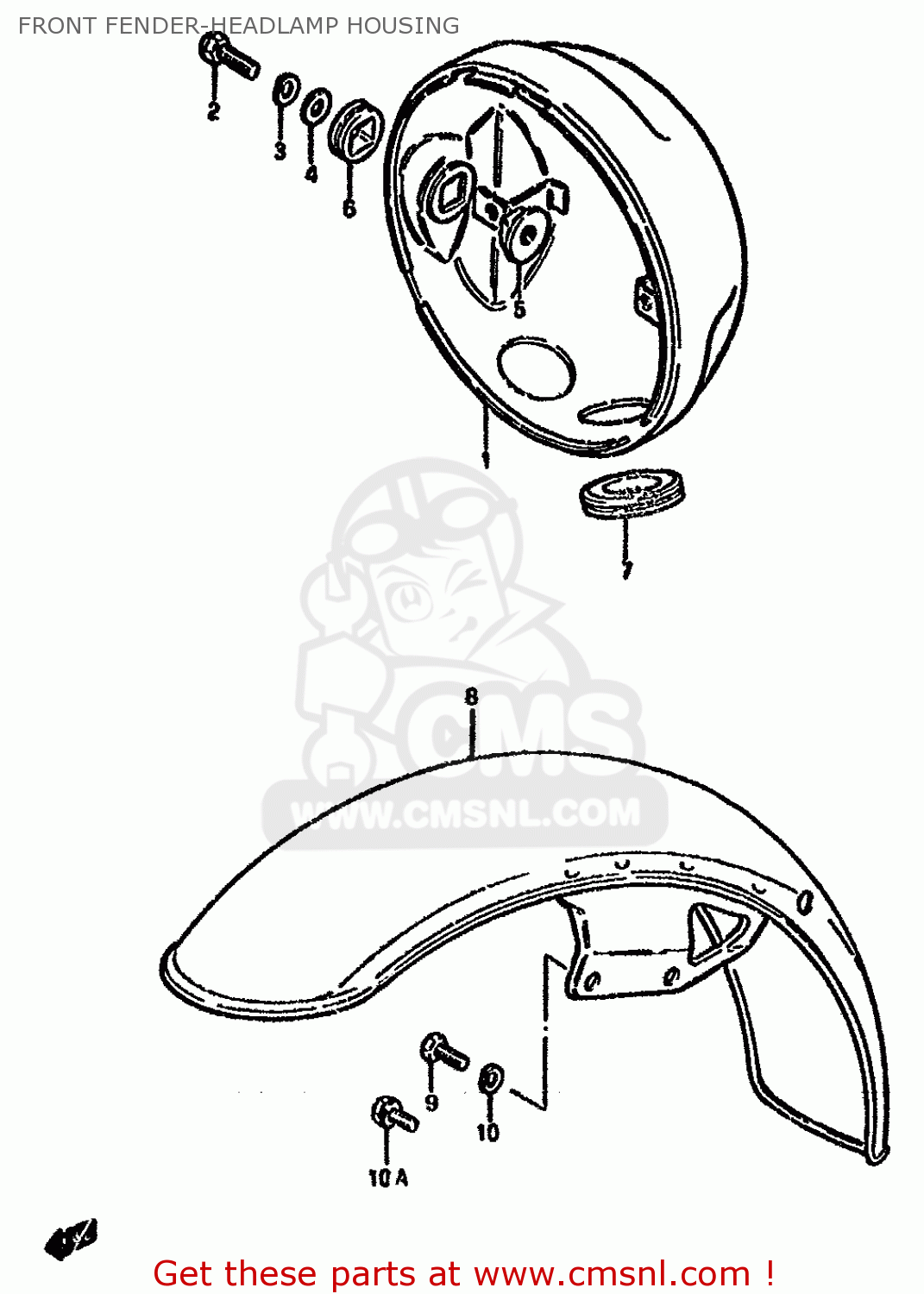

Front fender-headlamp housing diagram GN250 1985 (F) (E02 E22 E24 E39 E95)

prices are in EUR

ref

part #

description

quantity

5181045300
ref: 1

HOUSING,HEADLAMP

€ 46.50

2-1

0120408207
ref: 2-1
MODEL F/J/K/L/M/N/P

BOLT

€ 3.00

2-2

0126408207
ref: 2-2
MODEL R

BOLT

€ 3.00

0832121088
ref: 3

LOCK WASHER

€ 2.00

0832201087
ref: 4

WASHER

€ 2.00

5182136200
ref: 5

SPACER,HEADLAMP HOUSING

€ 7.50

5182727302
ref: 6

CUSHION,HEADLAMP HOUSING

€ 3.00

5184531031
ref: 7

GROMMET,HEADLAMP HOUSING

€ 4.00

5311038311
ref: 8

FENDER,FR

€ 295.50

9-1

0110708167
ref: 9-1
MODEL F/J/K/L/M

BOLT,8X16

€ 2.00

9-2

0113708168
ref: 9-2
MODEL N/P

BOLT

€ 2.50

0832121088
ref: 10
MODEL F/J/K/L/M

LOCK WASHER

€ 2.00

10A

0157008163
ref: 10A
MODEL R

BOLT, UPPER

€ 2.00
