REAR COMBINATION LAMP (E25,E39)

GN250 1985 (F) (E02 E22 E24 E39 E95)

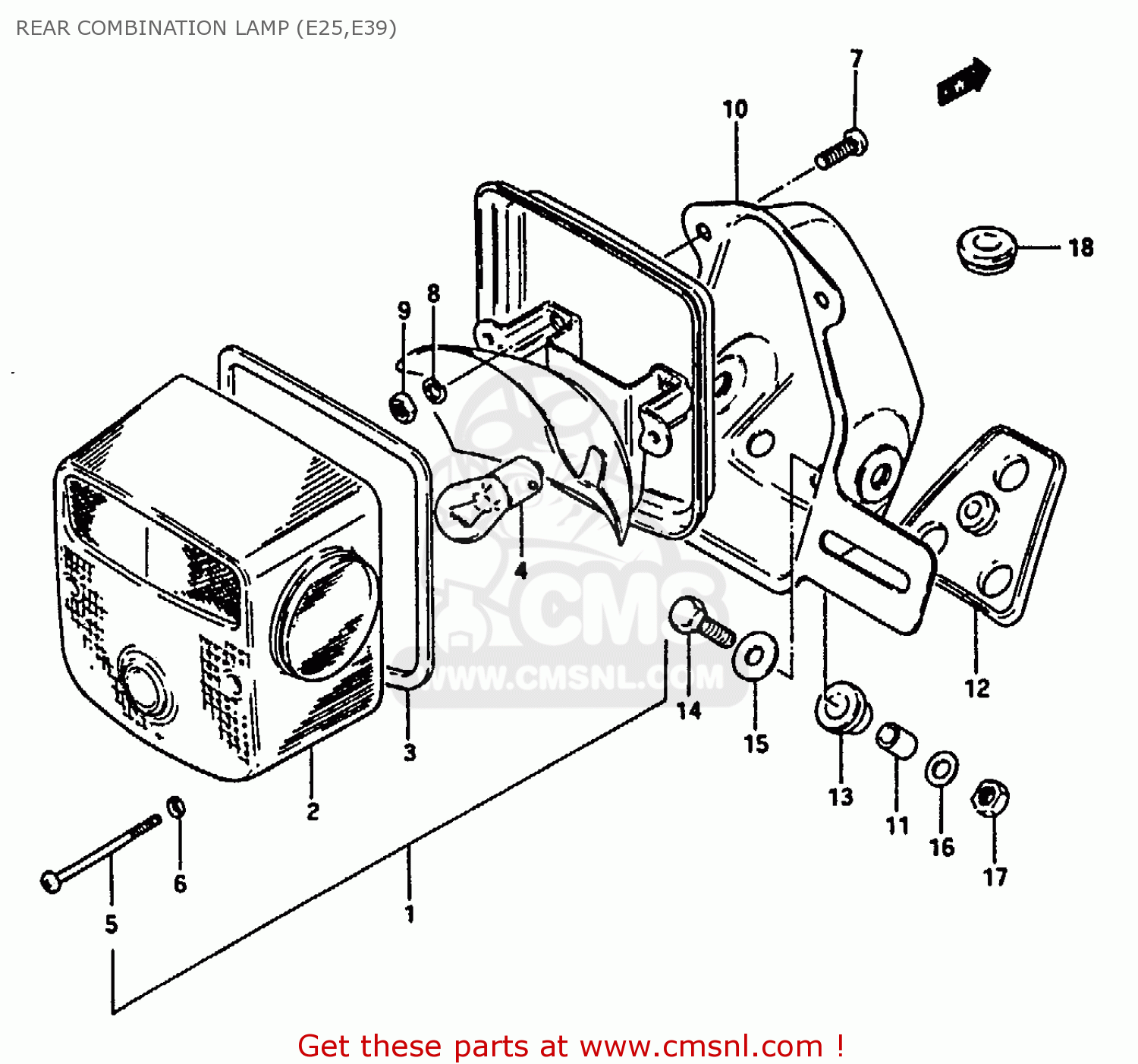

Rear combination lamp (e25,e39) diagram GN250 1985 (F) (E02 E22 E24 E39 E95)

prices are in EUR

ref

part #

description

quantity

3572038361
ref: 1

LAMP UNIT,RR COMBNATION

€ 136.00

3571238361
ref: 2

LENS

€ 51.00

3571330510
ref: 3

GASKET (NAS)

€ 6.00

0947112057
ref: 4

BULB 12V21/5W

€ 6.00

0912504002
ref: 5

SCREW (4X55)

€ 1.50

3562743010
ref: 6

GASKET (NAS)

€ 2.00

0211206167
ref: 7

SCREW

€ 2.50

8-1

0832121067
ref: 8-1
MODEL F/J/K/L/M/N/P

WASHER,LOCK

€ 2.50

8-2

0832101067
ref: 8-2
MODEL R

WASHER,LOCK

€ 2.50

9-1

0831011067
ref: 9-1
MODEL F/J/K/L/M/N/P

NUT 6MM

€ 2.50

9-2

0831000067
ref: 9-2
MODEL R

NUT

€ 2.50

3573038380
ref: 10

BRACKET UNIT,TAIL LAMP

€ 51.00

3576626470
ref: 11

SPACER

€ 2.00

3576526470
ref: 12

CUSHION

€ 10.00

3576426470
ref: 13

CUSHION

€ 2.50

0150006207
ref: 14

BOLT

€ 2.00

0916006027
ref: 15

WASHER (6.5X20X1.2)

€ 2.00

0832201067
ref: 16

WASHER

€ 2.00

0831011067
ref: 17

NUT 6MM

€ 2.50

0930809004
ref: 18

GROMMET

€ 0.00
