FUEL COCK

GN250 1985 (F) (E02 E22 E24 E39 E95)

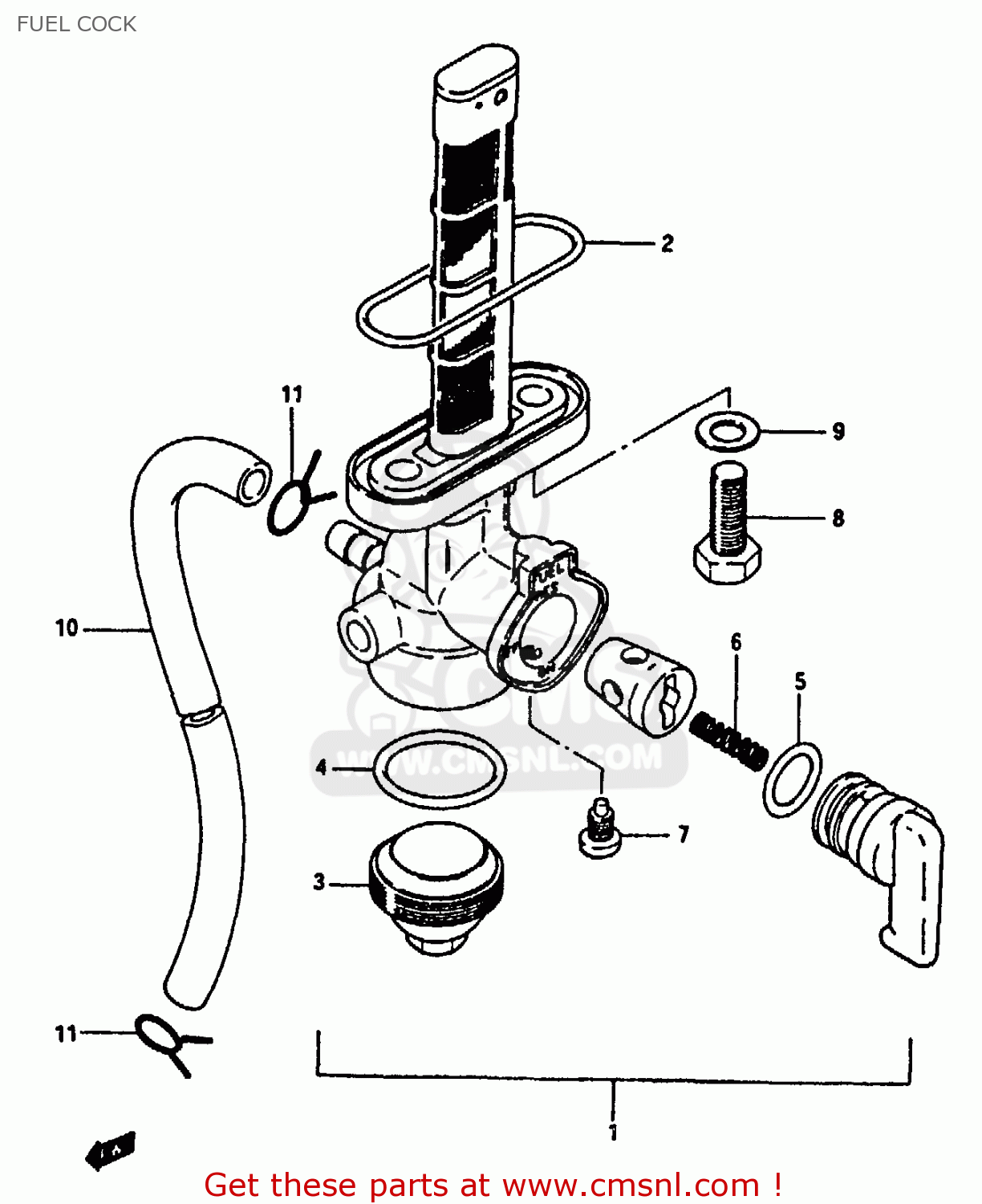

Fuel cock diagram GN250 1985 (F) (E02 E22 E24 E39 E95)

FUEL COCK GN250 1985 (F) (E02 E22 E24 E39 E95)

FUEL COCK GN250 1985 (F) (E02 E22 E24 E39 E95)

prices are in EUR

ref

part #

description

quantity

1

4430022073
ref: 1

COCK ASSEMBLY,FUEL

€ 65.50

2

4434828070
ref: 2

O RING,FUEL COCK

€ 4.50

3

4434728071
ref: 3

CUP,STRAINER

€ 7.50

4

4434628070
ref: 4

GASKET,FILTER (NAS)

€ 2.50

5

4435332470
ref: 5

O-RING

€ 7.50

6

4435732470
ref: 6

SPRING

€ 2.00

7

4434341370
ref: 7

SCREW

€ 2.00

8

0912806006
ref: 8

BOLT(6X20)

€ 2.00

9

0916806026
ref: 9

GASKET(6.4X11.5X0.8) (NAS)

€ 3.50

10

0935250823300
ref: 10

HOSE

€ 13.00

11

0940108401
ref: 11

CLIP

€ 1.50
