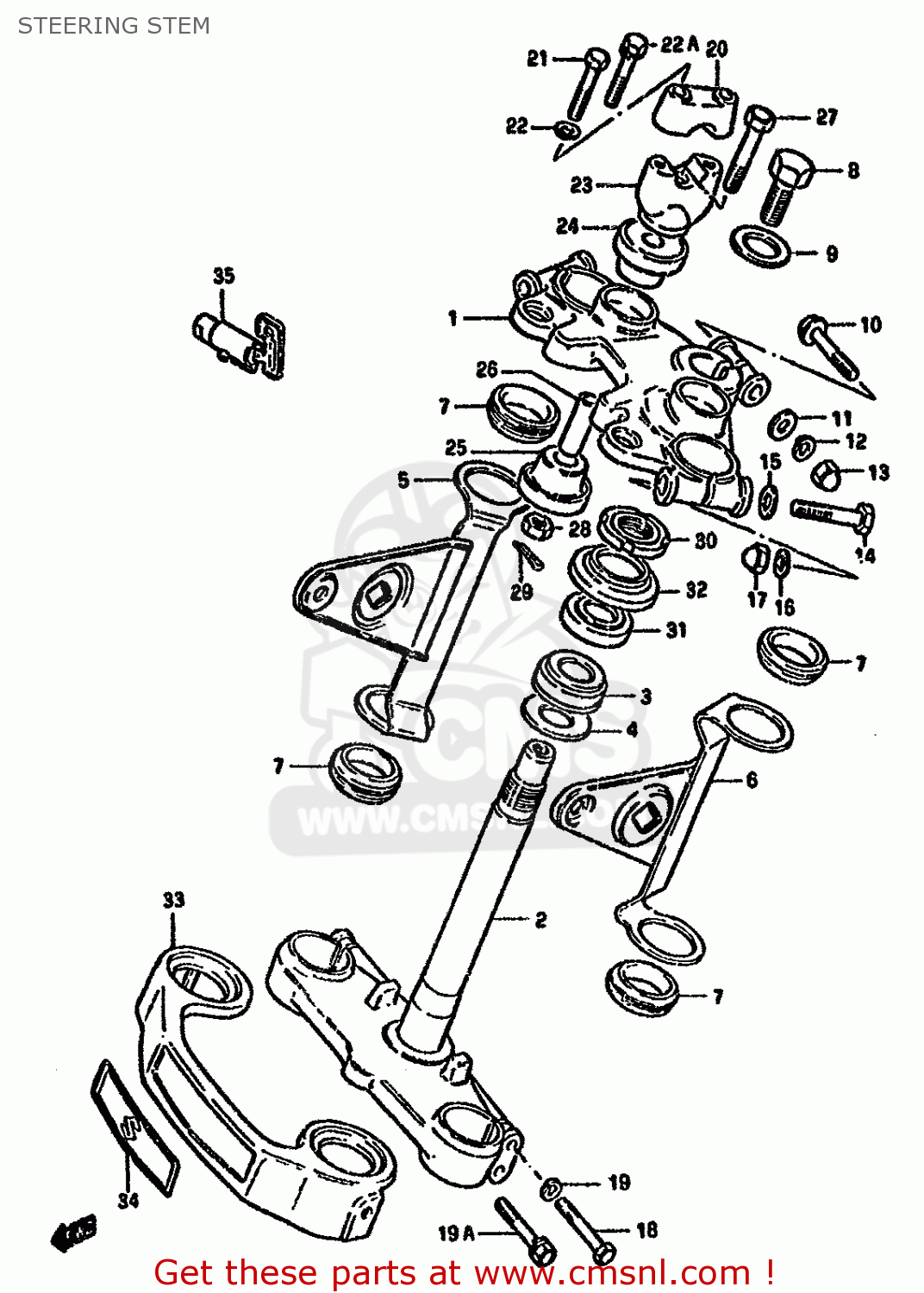

STEERING STEM

ref

part #

description

quantity

1

5131138300291
ref: 1
BLACK

HEAD,STEERING STEM

€ 145.50

2

5140038821
ref: 2

STEM,STEERING

€ 317.50

3

0926530009
ref: 3

BEARING(30X55X17)

€ 49.50

4

0821130402
ref: 4

WASHER,THRUST

€ 4.00

5

5153038300
ref: 5

BRACKET,HEADLAMP,R

€ 30.00

6

5154038300
ref: 6

BRACKET,HEADLAMP,L

€ 30.50

7

5155344000
ref: 7

CUSHION,HEADLAMP BRACKET

€ 5.50

8

0910412013
ref: 8

BOLT(12X20)

€ 6.50

9

0916012020
ref: 9

WASHER (12.5X27X1.6)

€ 2.00

10

0151708504
ref: 10

BOLT, UPPER

€ 2.50

11

0832211084
ref: 11

WASHER

€ 1.50

12

0832121084
ref: 12

WASHER,LOCK,8.

€ 2.50

13

0831311085
ref: 13

NUT,M8X1.25X12

€ 2.00

14

0110710555
ref: 14

BOLT 10X55

€ 3.50

15

0832211104
ref: 15

WASHER 10MM

€ 2.50

16

0832131105
ref: 16

LOCK WASHER

€ 3.00

17

0831311105
ref: 17

NUT 10MM

€ 2.00

18

0110708455
ref: 18
MODEL F/J/K/L/M/N/P

BOLT

€ 2.50

19

0832131084
ref: 19
MODEL F/J/K/L/M/N/P

LOCK WASHER

€ 2.50

19A

0157008453
ref: 19A
MODEL R

BOLT

€ 3.00

20

5621127200291
ref: 20
BLACK

HOLDER,HANDLE UPR

€ 13.50

21

0120408357
ref: 21
MODEL F/J/K/L/M/N/P

BOLT

€ 3.50

22

0832121088
ref: 22
MODEL F/J/K/L/M/N/P

LOCK WASHER

€ 2.00

22A

0125408357
ref: 22A
MODEL R

BOLT

€ 3.50

23

5622133600291
ref: 23
BLACK

CLAMP,HANDLEBAR,LOWER

€ 24.00

24

5624037301
ref: 24

CUSHION,UPR

€ 13.50

25

5624037311
ref: 25

CUSHION

€ 26.00

26

0918010065
ref: 26

SPACER(10.2X14X46)

€ 4.50

27

0910110025
ref: 27

BOLT(10X78)

€ 4.00

28

0915910027
ref: 28

NUT

€ 3.00

29

0411120308
ref: 29

COTTER PIN

€ 1.00

30

5163128000
ref: 30

NUT,STEERING STEM(25X44X10)

€ 12.50

31

0926525008
ref: 31

TAPER,ROLLER BEARING

€ 48.50

32

5164349002
ref: 32

SEAL,STEERING UPR DUST

€ 7.50

33

5187138301
ref: 33

COVER,FR FORK

€ 35.00

34

6821138300
ref: 34

EMBLEM,FR FORK COVER

€ 13.50

35

5190030901
ref: 35

LOCK ASSY,STEERING(NEIMAN)

€ 168.50
