HEADLAMP (E22,E25,E34,E39,E53)

GN250 1985 (F) (E02 E22 E24 E39 E95)

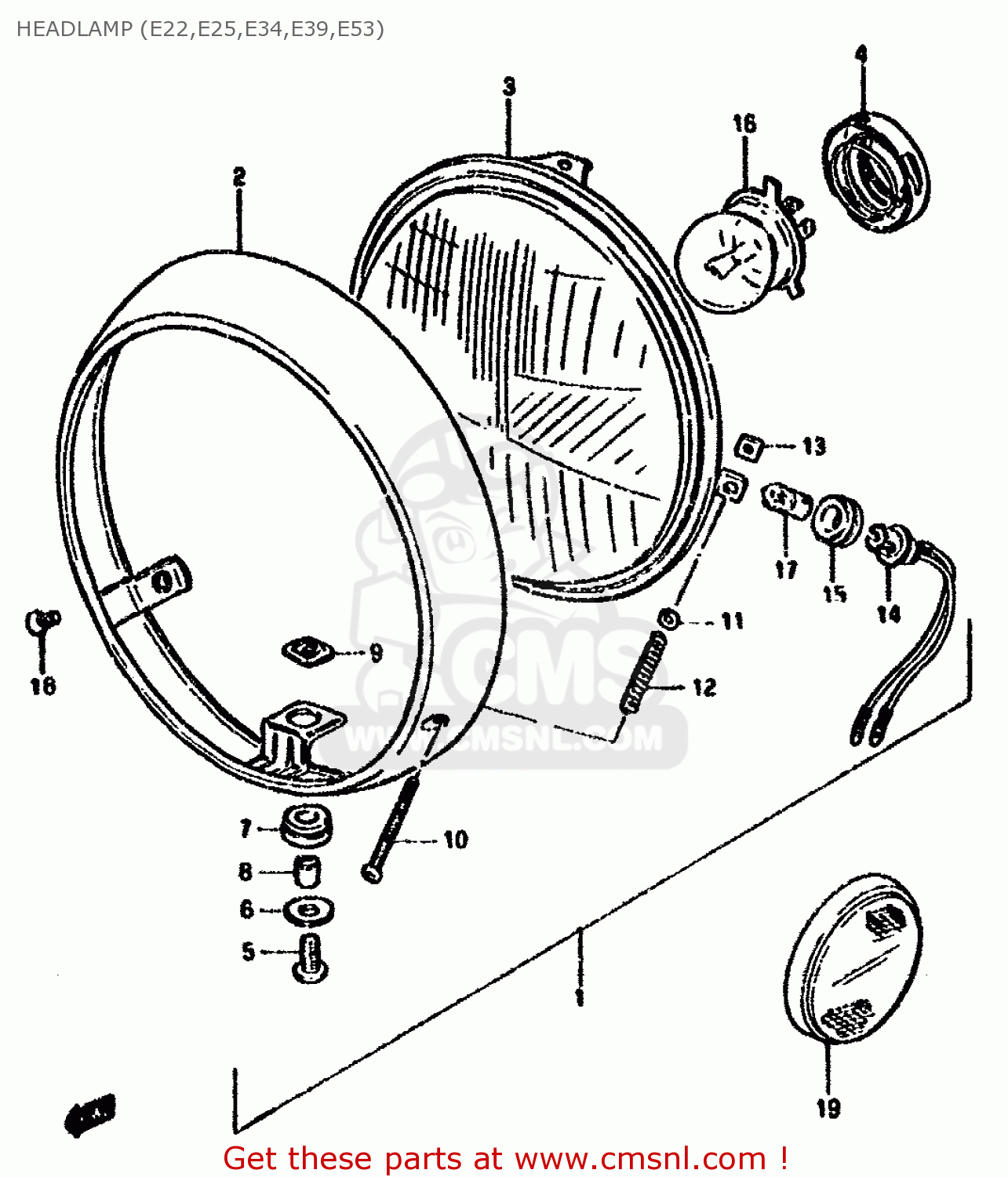

Headlamp (e22,e25,e34,e39,e53) diagram GN250 1985 (F) (E02 E22 E24 E39 E95)

prices are in EUR

ref

part #

description

quantity

3510038350999
ref: 1

HEADLAMP ASSY

€ 190.50

3511145221
ref: 2

RIM

€ 50.50

3512138340
ref: 3

LAMP UNIT

€ 91.50

3513601440
ref: 4

HOLDER,BULB

€ 7.00

0211205167
ref: 5

SCREW

€ 2.50

3513845230
ref: 6

WASHER

€ 2.00

3513945230
ref: 7

CUSHION

€ 1.50

3513345230
ref: 8

SPACER

€ 2.00

3515548510
ref: 9

NUT

€ 2.00

3515149020
ref: 10

SCREW HEAD LAM

€ 3.50

3515727630
ref: 11

WASHER

€ 2.50

3515448510
ref: 12

SPRING

€ 2.50

3515248510
ref: 13

NUT,HEADLAMP ADJUSTER

€ 3.00

3611849320
ref: 14

SOCKET

€ 12.00

3611622630
ref: 15

JOINT,RUBBER

€ 5.00

0947112049
ref: 16
EXECUTED LOCALLY

BULB (12V, 45/40W)

€ 0.00

0947112063
ref: 17
EXECUTED LOCALLY

BULB(12V4W)

€ 6.00

18-1

0912705013
ref: 18-1
MODEL F/J/K/L/M/N/P

SCREW(5X12)

€ 2.50

18-2

0212205127
ref: 18-2
MODEL R

SCREW

€ 2.50

3595015500
ref: 19
E25,E39

REFLEX REFLECTOR ASSY,FR SIDE

€ 13.50
