AIR CLEANER (GS125ESK/ESL E24, MODEL M/R)

GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

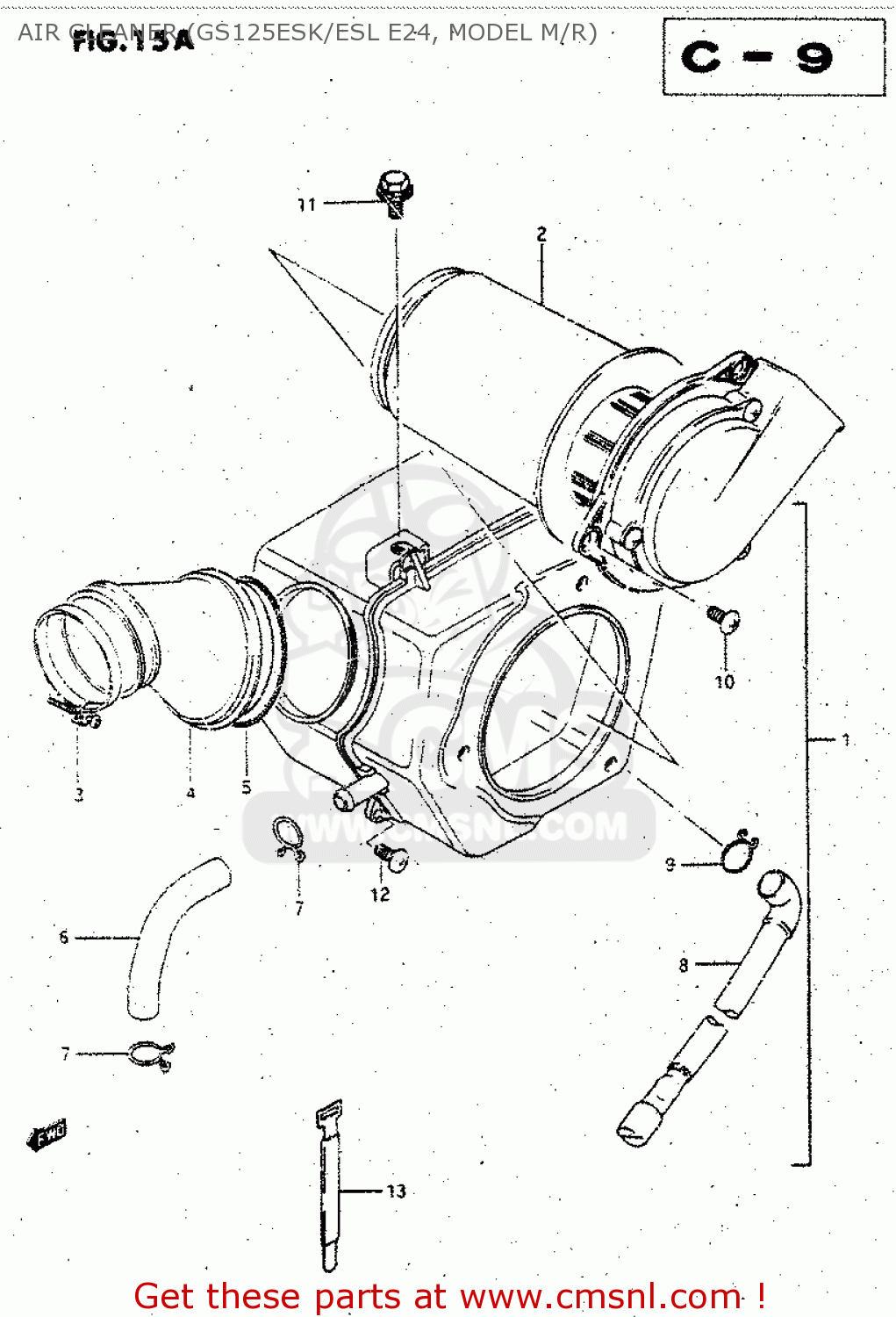

Air cleaner (gs125esk/esl e24, model m/r) diagram GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

AIR CLEANER (GS125ESK/ESL E24, MODEL M/R) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
AIR CLEANER (GS125ESK/ESL E24, MODEL M/R) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
AIR CLEANER (GS125ESK/ESL E24, MODEL M/R) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1
1370005302
ref: 1
CLEANER ASSY,AIR
1370005302
€ 119.00
2
1378038301
ref: 2
FILTER
1378038301
€ 21.50
3
0940256208
ref: 3
CLAMP
0940256208
€ 3.50
4
1388105300
ref: 4
TUBE,OUTLET
1388105300
€ 21.00
5
1382638300
ref: 5
CLAMP,AIR CLEANER SIDE
1382638300
€ 3.00
6
1385305300
ref: 6
TUBE,BREATHER
1385305300
€ 13.00
7
1382800020
ref: 7
CLIP,BREATHER TUBE
1382800020
€ 2.00
8
1387021308
ref: 8
TUBE,DRAIN
1387021308
€ 16.50
9
1382400A00
ref: 9
CLIP
1382400A00
€ 2.50
10
0214205127
ref: 10
SCREW
0214205127
€ 1.50
11
0911806017
ref: 11
BOLT(6X16)
0911806017
€ 1.50
12
0214206163
ref: 12
SCREW
0214206163
€ 2.50
13
0940711301
ref: 13
CLAMP L:110
€ 6.00
