TURN SIGNAL LAMP (E1,E4,E6,E24,E71,MODEL Z/D/F E2)

GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

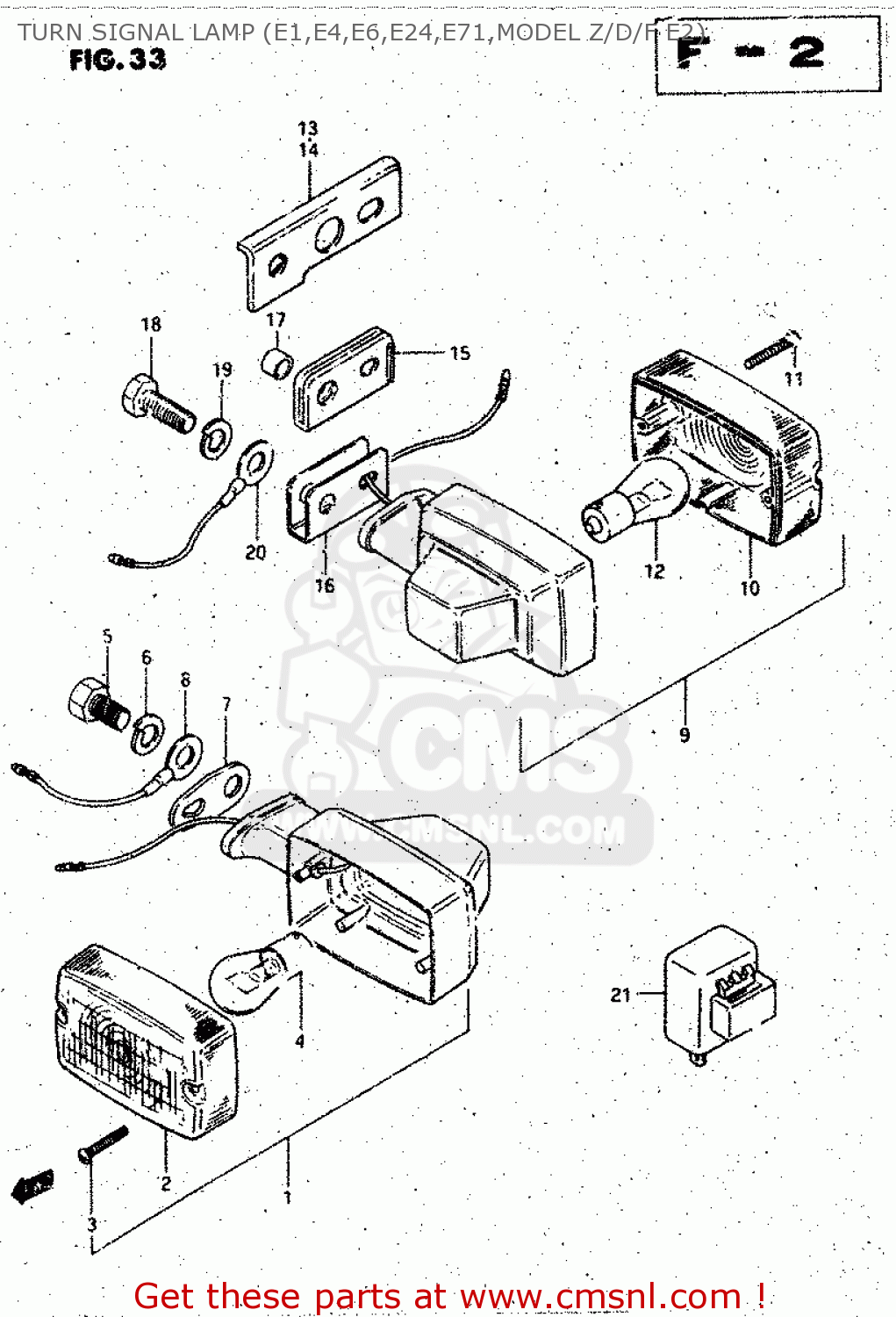

Turn signal lamp (e1,e4,e6,e24,e71,model z/d/f e2) diagram GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

TURN SIGNAL LAMP (E1,E4,E6,E24,E71,MODEL Z/D/F E2) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
TURN SIGNAL LAMP (E1,E4,E6,E24,E71,MODEL Z/D/F E2) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
TURN SIGNAL LAMP (E1,E4,E6,E24,E71,MODEL Z/D/F E2) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3560336510999
ref: 1-1
MODEL Z/D/F/K/L/M
LAMP ASSY, REAR TURN SIGNAL
€ 33.00
1-2
3560302932999
ref: 1-2
MODEL R
LAMP ASSY,TURNSIGNAL
3560302932999
€ 33.00
2
3561235300
ref: 2
LENS
3561235300
€ 7.00
3
0211203258
ref: 3
SCREW
0211203258
€ 1.50
4-1
0947112006
ref: 4-1
E1,E6,E24,E71
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
4-2
0947112045
ref: 4-2
E4,MODEL Z/D/F E2
BULB(12V21W)
0947112045
€ 5.00
5
0910006038
ref: 5
BOLT(6X65)
0910006038
€ 2.00
6-1
0832121068
ref: 6-1
MODEL Z/D/F/K/L/M
LOCK WASHER
0832121068
€ 2.50
6-2
0832101063
ref: 6-2
MODEL R
LOCK WASHER
0832101063
€ 2.00
7
3562805300
ref: 7
SPACER,FR TURNSIGNAL LAMP
€ 0.00
8
3666033000
ref: 8
LEAD WIRE,EARTH
3666033000
€ 5.00
9-1
3560336510999
ref: 9-1
MODEL Z/D/F/K/L/M
LAMP ASSY, REAR TURN SIGNAL
€ 33.00
9-2
3560302932999
ref: 9-2
MODEL R
LAMP ASSY,TURNSIGNAL
3560302932999
€ 33.00
10
3561235300
ref: 10
LENS
3561235300
€ 7.00
11
0211203258
ref: 11
SCREW
0211203258
€ 1.50
12-1
0947112006
ref: 12-1
E1,E6,E24,E71
BULB(12V23W,STANLEY,A4577A)
0947112006
€ 4.00
12-2
0947112045
ref: 12-2
E4,MODEL Z/D/F E2
BULB(12V21W)
0947112045
€ 5.00
13
3562005300
ref: 13
BRACKET,RR TURNSIGNAL,R
€ 4.50
14
3564005300
ref: 14
BRACKET,RR TURNSIGNAL LAMP,L
3564005300
€ 4.50
15
3569236510
ref: 15
CUSHION
€ 6.00
16
3569336510
ref: 16
PLATE
3569336510
€ 3.50
17
0918008007
ref: 17
SPACER(8.1X11X9)
0918008007
€ 1.50
18
0110706808
ref: 18
BOLT
€ 2.00
19-1
0832121068
ref: 19-1
MODEL Z/D/F/K/L/M
LOCK WASHER
0832121068
€ 2.50
19-2
0832101063
ref: 19-2
MODEL R
LOCK WASHER
0832101063
€ 2.00
20
3666033000
ref: 20
LEAD WIRE,EARTH
3666033000
€ 5.00
21
3861031310
ref: 21
ARROW LEFT38610-4503
RELAY ASSEMBLY,TURN SIGNAL
€ 54.50
