CYLINDER

GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

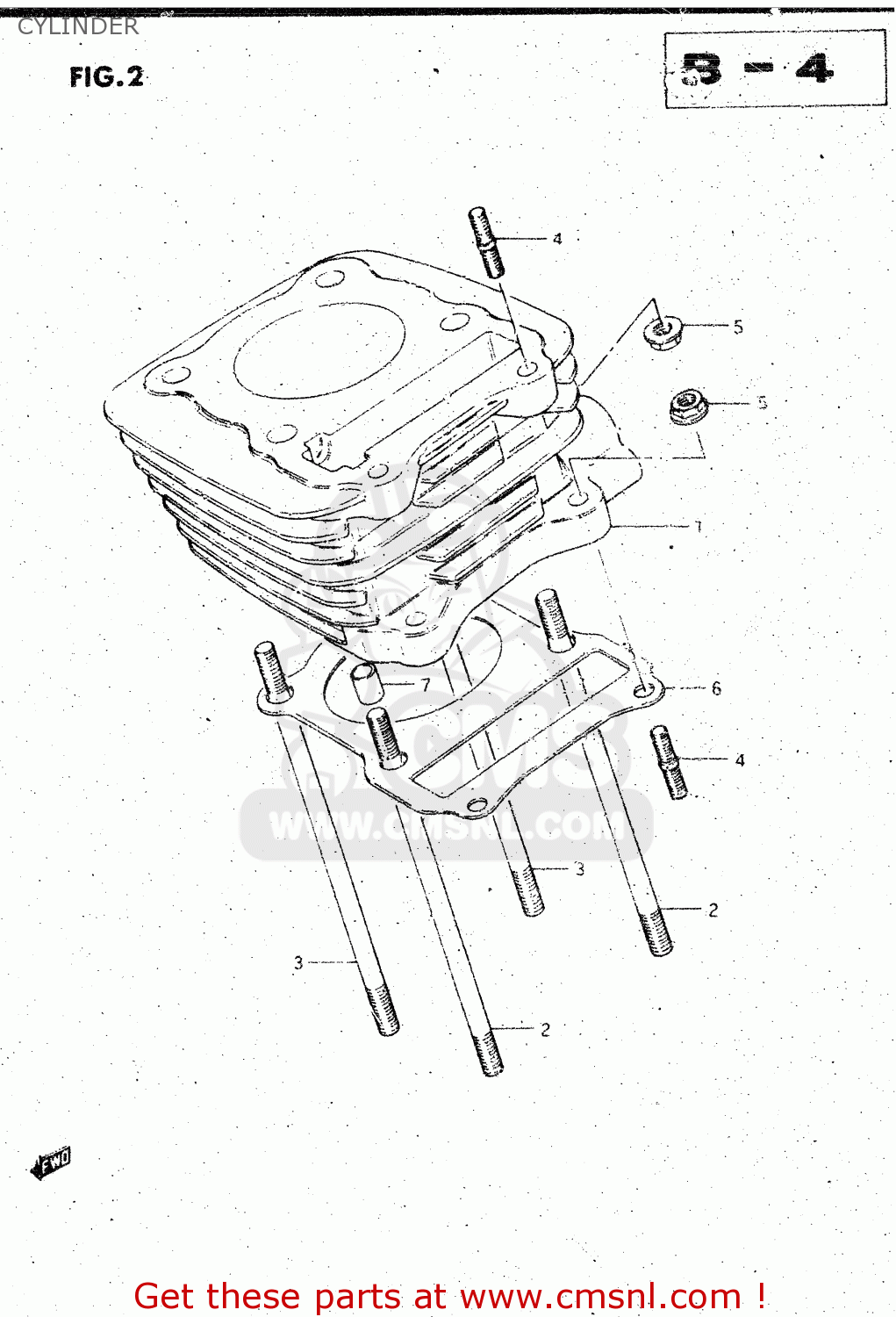

Cylinder diagram GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

CYLINDER GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
CYLINDER GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
CYLINDER GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
1121005201
ref: 1-1
MODEL Z
CYLINDER
€ 255.50
1-2
1121005211
ref: 1-2
MODEL D/F/K/L/M/R
CYLINDER
€ 263.50
2
0910808062
ref: 2
BOLT,STUD
0910808062
€ 4.50
3
0910808089
ref: 3
BOLT,STUD
0910808089
€ 6.00
4-1
0142106258
ref: 4-1
MODEL Z
STUD 6X25
0142106258
€ 2.50
4-2
0142106255
ref: 4-2
MODEL D/F/K/L/M
STUD 6X25
0142106255
€ 2.00
4-3
0142106253
ref: 4-3
MODEL R
STUD BOLT
0142106253
€ 2.00
5-1
0915906017
ref: 5-1
MODEL Z
NUT
0915906017
€ 2.50
5-2
0831616064
ref: 5-2
MODEL D/F/K/L/M
NUT 6MM
0831616064
€ 2.50
5-3
0831610063
ref: 5-3
MODEL R
NUT
0831610063
€ 2.50
6
1124105316
ref: 6
GASKET, CYLINDER
€ 0.00
7
0421111149
ref: 7
PIN
0421111149
€ 2.00
