Buy Suzuki GS Parts Online


HANDLEBAR-FRONT CABLE(GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR)

GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

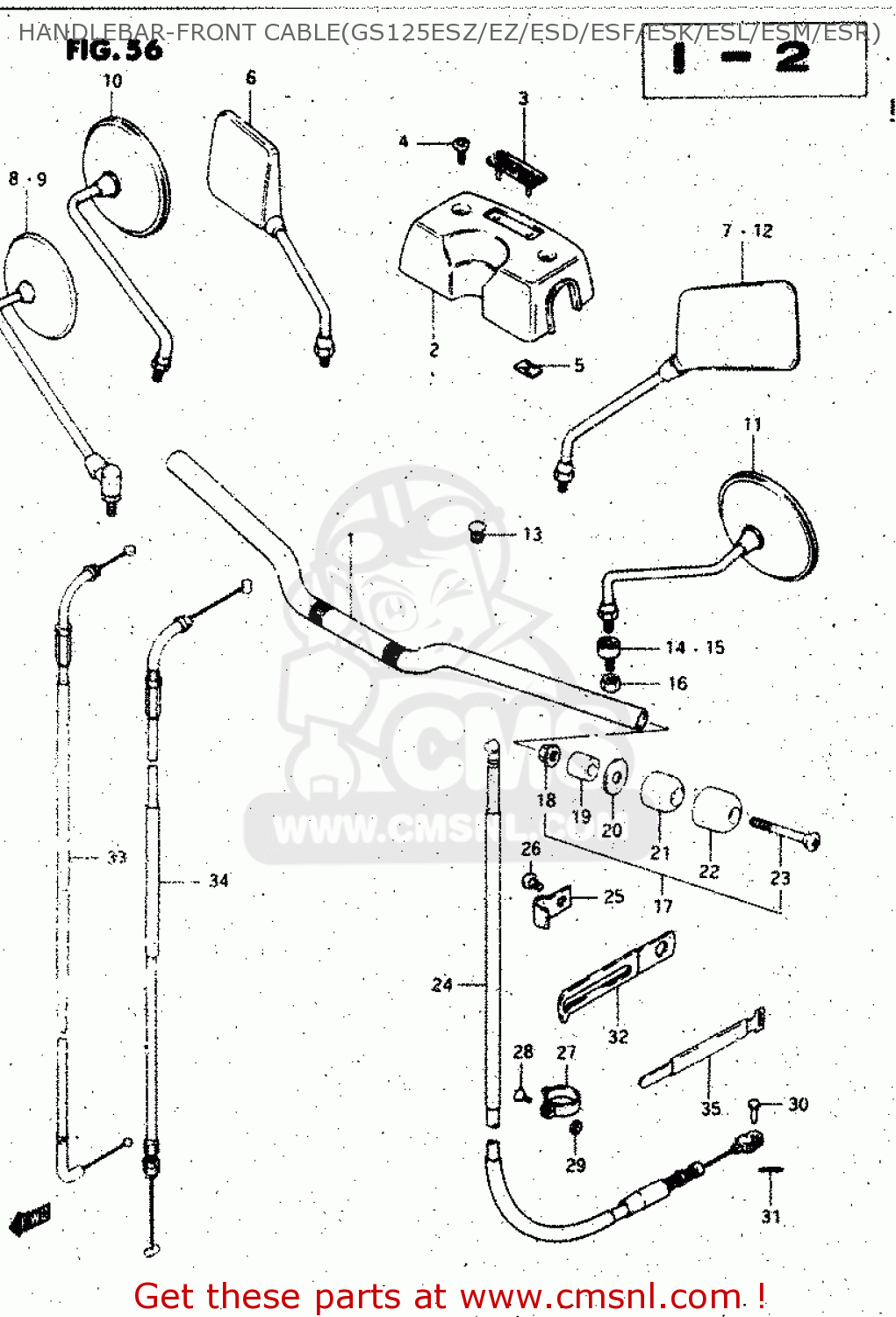

Handlebar-front cable(gs125esz/ez/esd/esf/esk/esl/esm/esr) diagram GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

HANDLEBAR-FRONT CABLE(GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
HANDLEBAR-FRONT CABLE(GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
HANDLEBAR-FRONT CABLE(GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
5611105360
ref: 1-1
HANDLEBAR
€ 89.50
1-2
5611105370291
ref: 1-2
E30
HANDLEBAR (BLACK)
€ 0.00
2
5617139300
ref: 2
COVER,STEERING HEAD
5617139300
€ 13.00
3
6828145100
ref: 3
EMBLEM,HANDLE COVER PAD
6828145100
€ 14.00
4
0912706009
ref: 4
SCREW(6X16)
0912706009
€ 2.00
5
0914803002
ref: 5
NUT
0914803002
€ 3.00
6
5650036500
ref: 6
E1,E6,E15,E30,E34,E3
MIRROR ASSY, REAR VIEW RH
€ 43.50
7
5660036500
ref: 7
E1,E6,E15,E30,E34,E3
MIRROR ASSY, REAR VIEW LH
€ 39.00
8
5650045650
ref: 8
E2
MIRROR ASSY,RR VIEW
5650045650
€ 35.00
9
5650028601
ref: 9
E4
MIRROR ASSY,RH
€ 70.00
10
5650032420
ref: 10
E18,E24
MIRROR ASSY, REAR VIEW RH
€ 0.00
11
5660032420
ref: 11
E18,E24
MIRROR ASSY, REAR VIEW LH
€ 0.00
12
5660036500
ref: 12
E17
MIRROR ASSY, REAR VIEW LH
€ 39.00
13
0925009001
ref: 13
E17
CAP(OD:14)
0925009001
€ 1.00
14-1
5670045400
ref: 14-1
E1,E4,E6,E15,E30,E34
CUSHION ASSY,RR VIEW MIRROR
5670045400
€ 18.00
14-2
5670045400
ref: 14-2
E17
CUSHION ASSY,RR VIEW MIRROR
5670045400
€ 18.00
15
5670031001
ref: 15
E2,E18,E24
CUSHION,REAR VIEW MIRROR
5670031001
€ 18.00
16-1
0831022107
ref: 16-1
NUT
0831022107
€ 2.50
16-2
0831022105
ref: 16-2
NUT
0831022105
€ 2.00
16-3
0831022107
ref: 16-3
E17
NUT
0831022107
€ 2.50
17-1
5620036810
ref: 17-1
MODEL Z/D/F/K/L/M
BALANCER SET,HANDLEBAR
5620036810
€ 88.00
17-2
5620012811
ref: 17-2
MODEL R
BALANCER SET,HANDLEBAR
5620012811
€ 88.00
18
0915906024
ref: 18
NUT
0915906024
€ 2.00
19
5627244500
ref: 19
EXPANDER,HANDLE BALANCER
5627244500
€ 3.00
20-1
5627534400
ref: 20-1
MODEL Z/D/F/K/L/M
SPACER,BALANCER
5627534400
€ 2.50
20-2
5627534401
ref: 20-2
MODEL R
SPACER,BALANCER
5627534401
€ 2.50
21
5627149420
ref: 21
BALANCER,HANDLE
5627149420
€ 19.50
22-1
5627405350
ref: 22-1
ARROW RIGHT56274-313
CAP,BALANCER
5627405350
€ 223.50
22-2
5627431300
ref: 22-2
CAP,BALANCER
5627431300
€ 223.50
23-1
0213206655
ref: 23-1
MODEL Z/D/F/K/L/M
SCREW 6X65
0213206655
€ 2.50
23-2
0212206653
ref: 23-2
MODEL R
SCREW
0212206653
€ 2.50
24
5820005350
ref: 24
CABLE ASSY,CLUTCH
5820005350
€ 25.00
25
5862637400
ref: 25
CLAMP,CLUTCH CABLE NO.1
€ 8.50
26
0211216103
ref: 26
SCREW
€ 2.00
27
5828505350
ref: 27
CLAMP,CABLE
€ 4.00
28
0211205163
ref: 28
SCREW
0211205163
€ 2.00
29
0831000053
ref: 29
NUT
€ 2.50
30-1
0920006011
ref: 30-1
MODEL Z/D/F
PIN(L:15)
0920006011
€ 2.50
30-2
0920006004
ref: 30-2
MODEL K/L/M/R
PIN(L:13)
0920006004
€ 1.50
31
0411120158
ref: 31
PIN
0411120158
€ 1.50
32
0940408402
ref: 32
MODEL Z/D/F
CLAMP
0940408402
€ 3.50
33-1
5830005352
ref: 33-1
MODEL Z/D/F/K E1,E2,
CABLE ASSY,THROTTLE
5830005352
€ 26.00
33-2
5830005361
ref: 33-2
MODEL Z/D/F E15,E17
CABLE ASSY,THROTTLE
€ 26.00
34
5830005310
ref: 34
MODEL F/K/L E24 MODE
CABLE ASSY,THROTTLE
5830005310
€ 26.00
35
0940718301
ref: 35
CLAMP
0940718301
€ 6.00
