HEADLAMP (E4,E15,E17,E18,E39)

GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

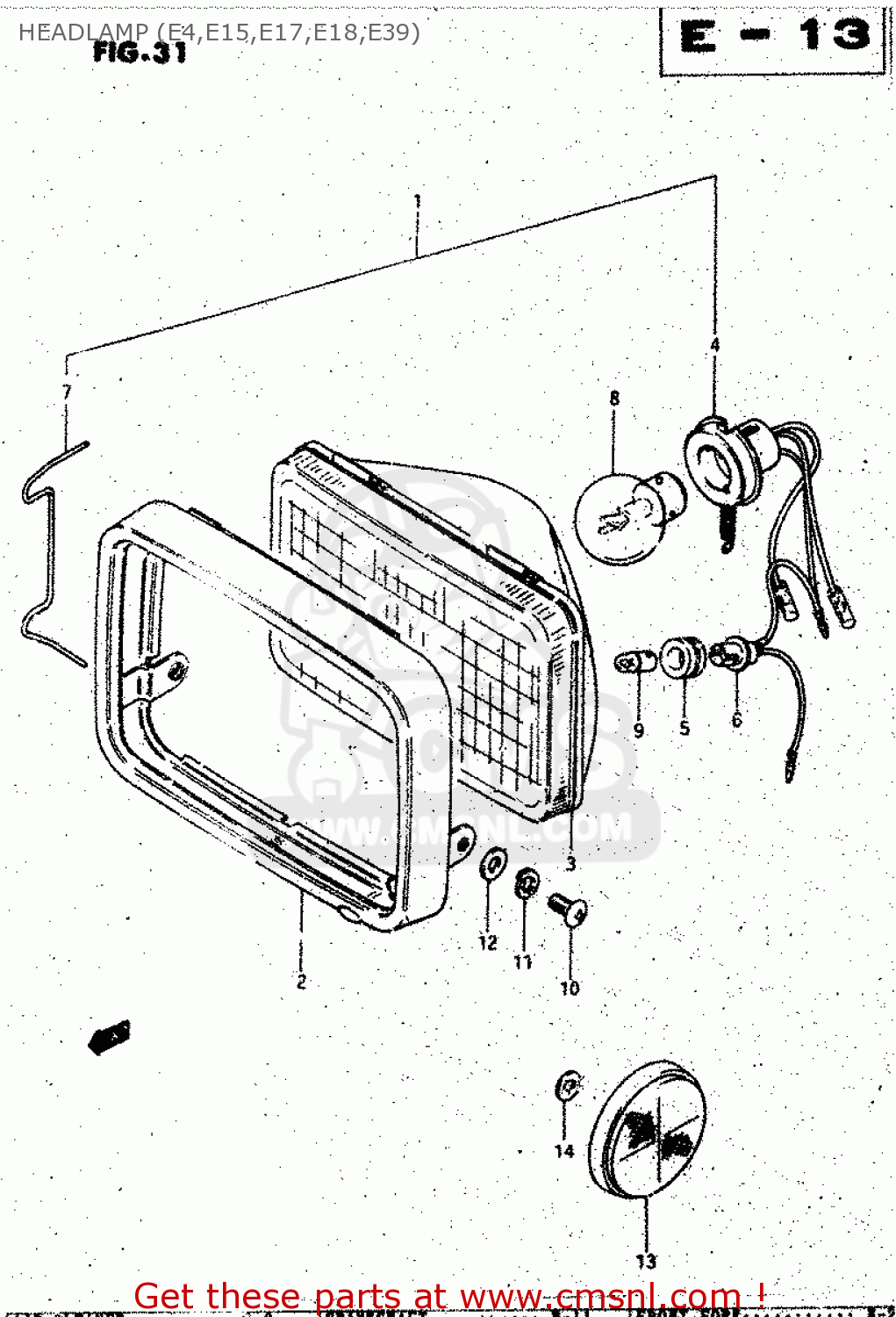

Headlamp (e4,e15,e17,e18,e39) diagram GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

HEADLAMP (E4,E15,E17,E18,E39) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
HEADLAMP (E4,E15,E17,E18,E39) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
HEADLAMP (E4,E15,E17,E18,E39) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3510036540999
ref: 1-1
E4
HEADLAMP ASSY
€ 0.00
1-2
3510036560999
ref: 1-2
E15,E17,E18,E39
HEADLAMP ASSY
3510036560999
€ 154.50
2
3511136510
ref: 2
RIM
3511136510
€ 44.00
3-1
3512136540
ref: 3-1
E4
UNIT
3512136540
€ 69.00
3-2
3512136560
ref: 3-2
E15,E17,E18,E39
UNIT
3512136560
€ 37.50
4-1
3517136540
ref: 4-1
E4
SOCKET
€ 0.00
4-2
3517136560
ref: 4-2
E15,E17,E18,E39
SOCKET
€ 0.00
5
3611622630
ref: 5
JOINT,RUBBER
3611622630
€ 5.00
6
3611849320
ref: 6
SOCKET
3611849320
€ 12.00
7
3512836511
ref: 7
SPRING
3512836511
€ 4.00
8-1
0947112047
ref: 8-1
E4,EXECUTED LOCALLY
BULB
€ 0.00
8-2
0947112020
ref: 8-2
E15,E17,E18,E39 EXEC
BULB(12V35/35W)
0947112020
€ 108.50
9
0947112063
ref: 9
BULB(12V4W)
0947112063
€ 6.00
10
0211205128
ref: 10
SCREW
€ 2.50
11
0832121057
ref: 11
LOCK WASHER
0832121057
€ 2.00
12
0832221057
ref: 12
WASHER
0832221057
€ 2.50
13
3595030910
ref: 13
E39
REFLEX REFLECTOR,FR
3595030910
€ 43.50
14
0832221056
ref: 14
E39
WASHER
€ 2.50
