SPEEDOMETER-TACHOMETER(GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR)

GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

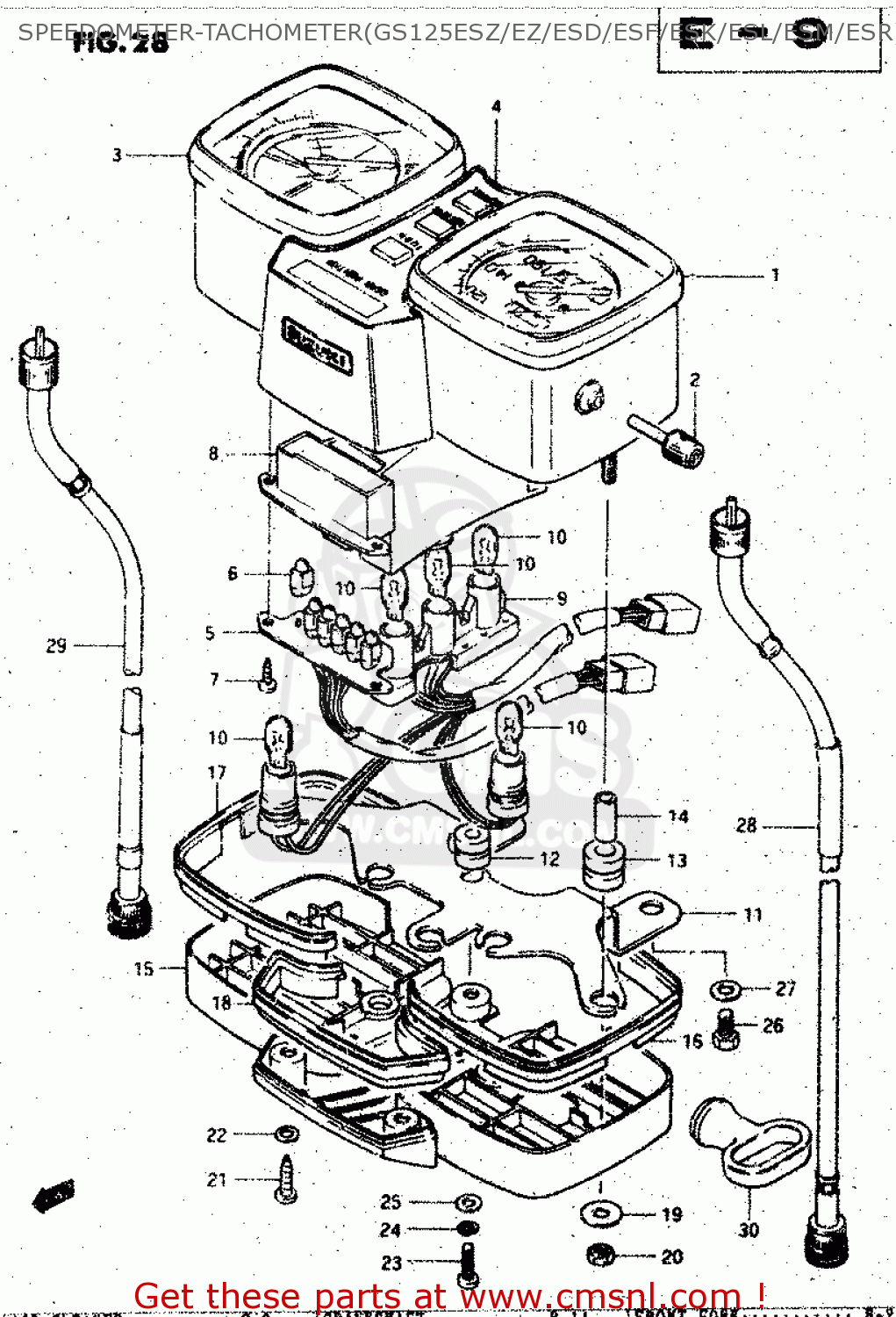

Speedometer-tachometer(gs125esz/ez/esd/esf/esk/esl/esm/esr) diagram GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

SPEEDOMETER-TACHOMETER(GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
SPEEDOMETER-TACHOMETER(GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
SPEEDOMETER-TACHOMETER(GS125ESZ/EZ/ESD/ESF/ESK/ESL/ESM/ESR) GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
3411005360
ref: 1-1
ARROW RIGHT34110-050
SPEEDOMETER (MILE/KILO)
€ 258.50
1-2
3411005030
ref: 1-2
E30,MODEL M/R E2
METER,SPEED (KM/MPH)
€ 258.50
1-3
3411005350
ref: 1-3
SPEEDOMETER(KILO)
€ 154.50
1-4
3411005020
ref: 1-4
E30
SPEEDOMETER (KILO)
€ 0.00
2
3412428010
ref: 2
KNOB,TRIP
3412428010
€ 7.50
3-1
3421005371
ref: 3-1
TACHOMETER
€ 235.50
3-2
3421005020
ref: 3-2
E30
TACHOMETER
€ 235.50
4
3638005370
ref: 4
CASE,PILOT BULB
3638005370
€ 23.50
5
3645339341
ref: 5
INDICATOR,GEAR POSITION
3645339341
€ 32.50
6
0947112071
ref: 6
BULB(14V1.12W)
0947112071
€ 5.00
7-1
3645634510
ref: 7-1
MODEL Z/D/F/K/L/M
SCREW,GEAR INDICATOR
€ 2.00
7-2
0913203501
ref: 7-2
MODEL R
SCREW(3X12)
€ 2.00
8-1
3638139300
ref: 8-1
MODEL Z
CASE, PILOT BOX INNER
€ 22.00
8-2
3638105370
ref: 8-2
MODEL D/F/K/L/M/R
CASE,PILOT BOX INNER
€ 22.00
9
3417305370
ref: 9
SOCKET,PILOT LAMP
€ 0.00
10
0947112082
ref: 10
BULB(12V3.4W,T10,BF175-01450A)
0947112082
€ 3.50
11-1
3495005370
ref: 11-1
MODEL Z/D/F/K/L/M
BRACKET
€ 23.00
11-2
3495005371
ref: 11-2
MODEL R
BRACKET
€ 23.00
12
3638439300
ref: 12
CUSHION,PILOT BOX
€ 0.00
13
3419139300
ref: 13
CUSHION,METER
€ 0.00
14
3418726400
ref: 14
SPACER
3418726400
€ 3.00
15
3638339300
ref: 15
COVER,LWR
€ 24.00
16
3419305370
ref: 16
MOULDING, SPEEDOMETER
€ 9.50
17
3429305370
ref: 17
MOULDING, TACHOMETER
€ 14.00
18
3439305370
ref: 18
MOULDING, PILOT BOX
3439305370
€ 7.50
19
0916005031
ref: 19
WASHER
€ 1.50
20
0831311055
ref: 20
NUT
0831311055
€ 2.00
21
0311204165
ref: 21
SCREW 4X16
€ 2.00
22
0832221047
ref: 22
WASHER 4MM
0832221047
€ 2.00
23-1
0211204128
ref: 23-1
MODEL Z/D/F/K/L/M
SCREW
0211204128
€ 1.50
23-2
0211204123
ref: 23-2
MODEL R
SCREW
0211204123
€ 1.50
24-1
0832121047
ref: 24-1
MODEL Z/D/F/K/L/M
WASHER,LOCK 4M
0832121047
€ 2.00
24-2
0832101043
ref: 24-2
MODEL R
WASHER,LOCK
0832101043
€ 2.00
25
0832221047
ref: 25
WASHER 4MM
0832221047
€ 2.00
26-1
0110708127
ref: 26-1
MODEL Z/D/F/K/L/M
BOLT 8X12
€ 2.50
26-2
0155008123
ref: 26-2
MODEL R
BOLT
0155008123
€ 3.50
27
0832211088
ref: 27
WASHER
0832211088
€ 2.00
28
3491026411
ref: 28
CABLE ASSY,SPEEDOMETER
3491026411
€ 56.00
29-1
3494005310
ref: 29-1
GS125ESZ/ESD/ESF/ESK
CABLE, TACHOMETER
€ 49.00
29-2
3494005311
ref: 29-2
GS125ESR
CABLE ASSY,TACHOMETER
3494005311
€ 49.00
29-3
3494044111
ref: 29-3
GS125EZ
CABLE ASSEMBLY,TACHOMETER
3494044111
€ 49.00
30
5862121203A
ref: 30
GUIDE,CABLE
€ 7.50
