Buy Suzuki GS Parts Online


FRONT FENDER - HEADLAMP HOUSING

GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

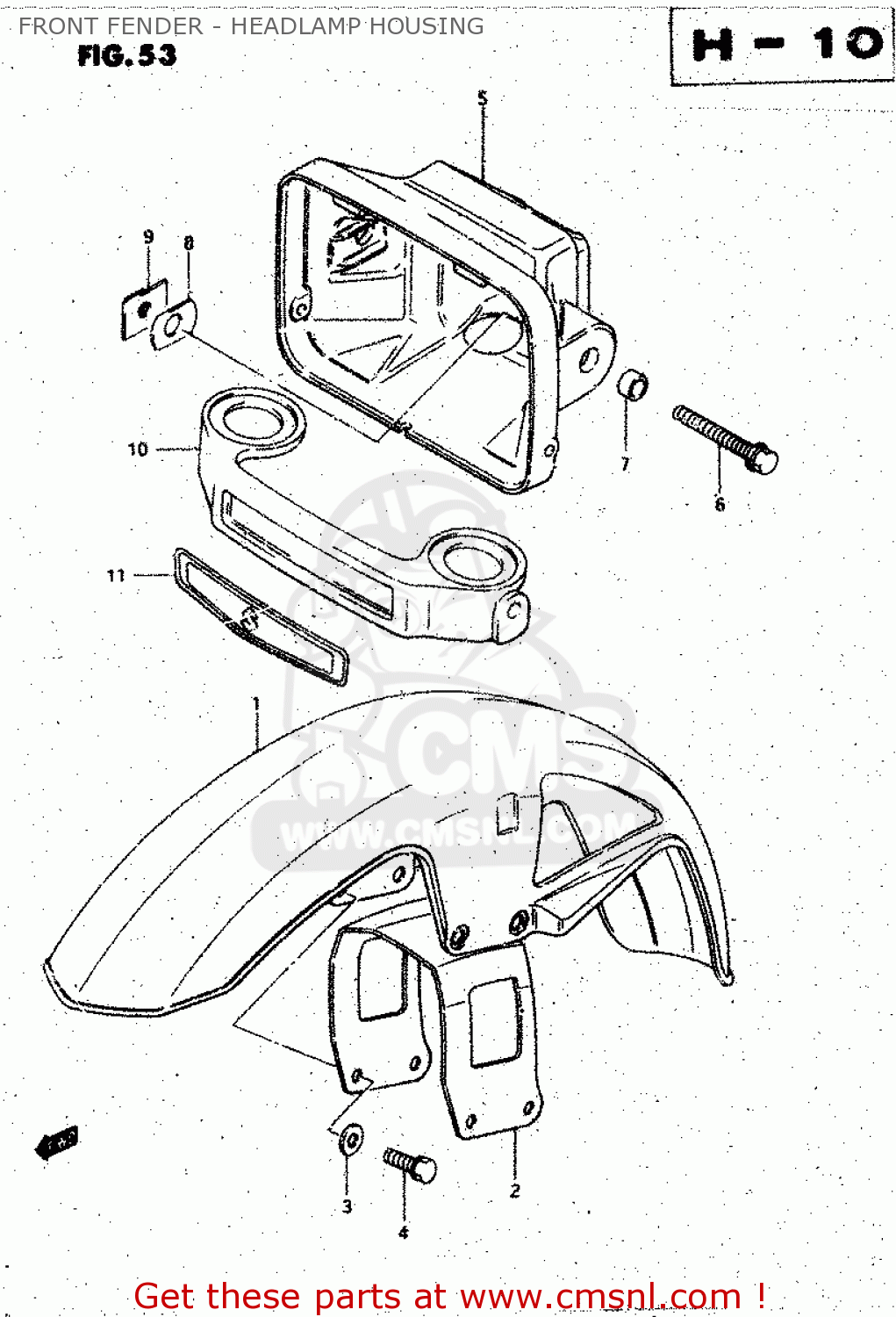

Front fender - headlamp housing diagram GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)

FRONT FENDER - HEADLAMP HOUSING GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
FRONT FENDER - HEADLAMP HOUSING GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
FRONT FENDER - HEADLAMP HOUSING GS125ES 1983 (D) (E01 E02 E04 E06 E15 E18 E24 E30 E34 E39)
prices are in EUR
ref
part #
description
quantity
1-1
5311105350019
ref: 1-1
GS125ESZ/EZ/ESD/ESF/
FENDER,FR
€ 91.50
1-2
531110535007P
ref: 1-2
GS125ESZ/EZ/ESD/ESF/
FENDER, FRONT (RED)
€ 97.00
1-3
531110535004Y
ref: 1-3
GS125ESZ/EZ/ESD/ESF
FENDER, FRONT (BLUE)
€ 98.00
1-4
531110535014L
ref: 1-4
GS125ESD/ESF
FENDER, FRONT (WHITE)
€ 98.00
1-5
531110535022R
ref: 1-5
GS125ESK/ESL
FENDER, FRONT (WHITE)
€ 98.00
1-6
53111053500NH
ref: 1-6
GS125ESL/ESM/ESR
FENDER,FR
€ 97.00
1-7
531110535038K
ref: 1-7
GS125ESM
FENDER, FRONT (BLUE)
€ 98.00
1-8
53111053500NF
ref: 1-8
GS125ESM/ESR
FENDER,FR
€ 0.00
1-9
5311105360019
ref: 1-9
GS125Z/D,UR E7
FENDER,FR
€ 0.00
1-10
531110536007P
ref: 1-10
GS125Z/D
FENDER, FRONT (RED)
€ 0.00
1-11
531110536004Y
ref: 1-11
GS125Z/D
FENDER, FRONT (BLUE)
€ 0.00
1-12
531110536014L
ref: 1-12
GS125D
FENDER, FRONT (WHITE)
€ 0.00
1-13
53111053600NH
ref: 1-13
GS125UR E71
FENDER, FRONT (RED)
€ 111.50
1-14
53111053600NF
ref: 1-14
GS125UR E71
FENDER,FR
€ 0.00
2
5311205350
ref: 2
BRACE,FR FENDER
5311205350
€ 12.50
3
0916908034
ref: 3
WASHER
0916908034
€ 2.00
4
0157008163
ref: 4
BOLT, UPPER
€ 2.00
5
5181139300
ref: 5
HOUSING,HEADLAMP
5181139300
€ 38.50
6
0126408307
ref: 6
BOLT
€ 0.00
7
0918008030
ref: 7
SPACER (8.8X12X7)
0918008030
€ 3.50
8
0932912002
ref: 8
CUSHION
0932912002
€ 3.00
9
5186045000
ref: 9
PLATE,HEADLAMP HOUSING
5186045000
€ 2.00
10
5187105351291
ref: 10
GS125EZE17 GS125Z/D/
COVER,FR FORK
€ 23.50
11
6821138300
ref: 11
GS125EZE17 GS125E/D/
EMBLEM,FR FORK COVER
6821138300
€ 13.50
