CAM SHAFT - VALVE (MODEL F/K/L/M/R)

GS125ES 1990 (L) AUSTRALIA (E24)

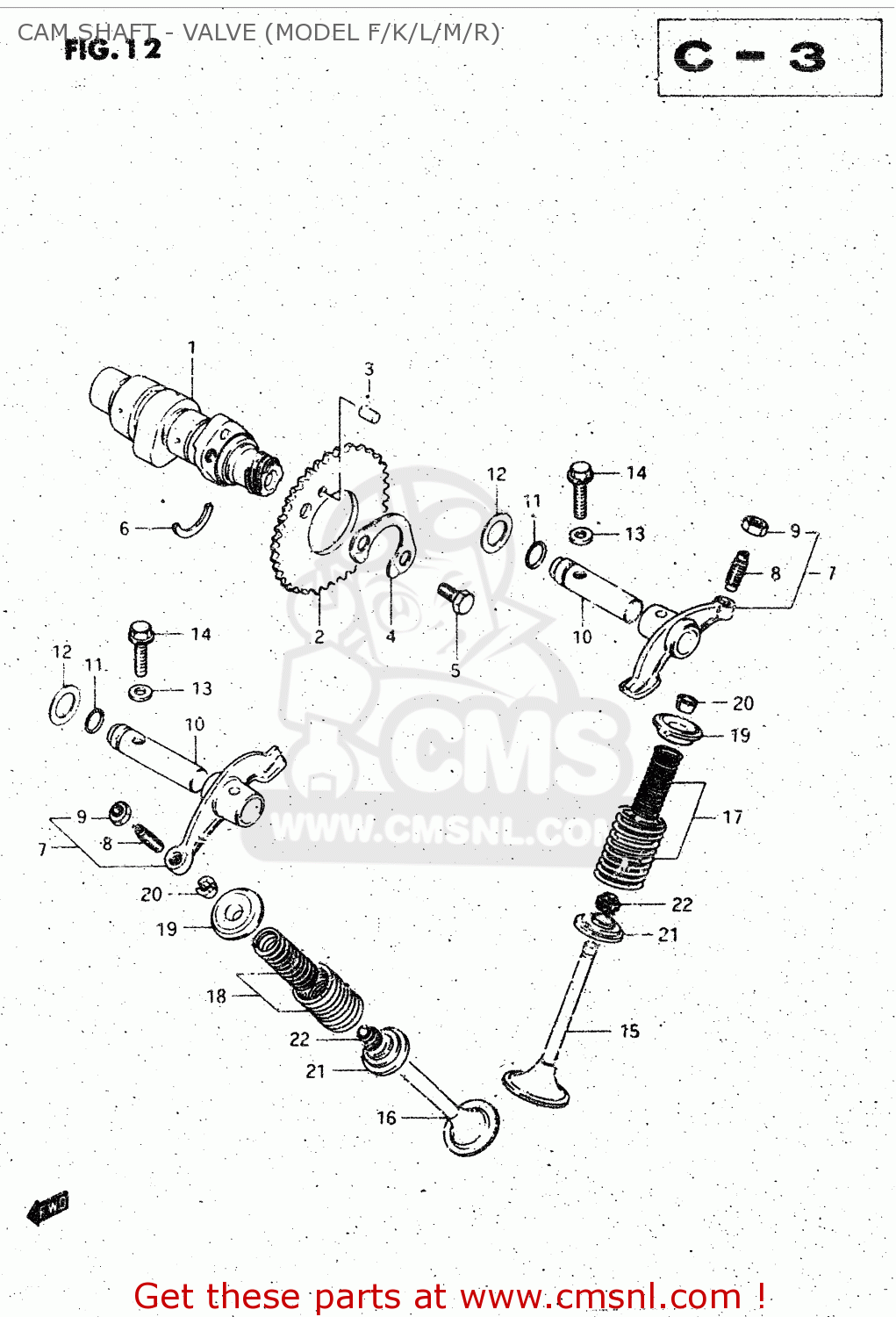

Cam shaft - valve (model f/k/l/m/r) diagram GS125ES 1990 (L) AUSTRALIA (E24)

CAM SHAFT - VALVE (MODEL F/K/L/M/R) GS125ES 1990 (L) AUSTRALIA (E24)

CAM SHAFT - VALVE (MODEL F/K/L/M/R) GS125ES 1990 (L) AUSTRALIA (E24)

prices are in EUR

ref

part #

description

quantity

1

1271105201
ref: 1

CAMSHAFT

€ 172.50

2

1274105201
ref: 2

SPROCKET,CAMSHAFT

€ 14.00

3

0926105005
ref: 3

PIN(5X8)

€ 1.50

4

1274705201
ref: 4

WASHER,SPROCKET

€ 2.00

5

0911106032
ref: 5

BOLT(6X10.5)

€ 2.00

6

0939022002
ref: 6

C RING

€ 2.00

7-1

1284005200
ref: 7-1
MODEL F/K/L/M

ARM,VALVE ROCKER

€ 28.00

7-2

1285025C00
ref: 7-2
MODEL R

ARM ASSY,VALVE ROCKER

€ 28.00

8

1284232411
ref: 8

SCREW,TAPPET ADJUSTING

€ 5.00

9

1284332400
ref: 9

NUT,ADJUSTING SCREW

€ 2.50

10

1286105201
ref: 10

SHAFT,VALVE ROCKET

€ 9.50

11

0928009005
ref: 11

O RING(D:1.9,ID:8.6)

€ 4.00

12

0916412021
ref: 12

WASHER

€ 2.00

13

0916806023
ref: 13

GASKET(5.8X13X1.2) (NAS)

€ 2.00

14-1

0151706254
ref: 14-1
MODEL F/K/L/M

BOLT

€ 2.50

14-2

0155006253
ref: 14-2
MODEL R

BOLT

€ 2.50

15

1291104B00
ref: 15
ARROW LEFT12911-2440

VALVE,INTAKE

€ 41.50

16

1291224400
ref: 16

VALVE,EXHAUST

€ 41.50

17

1292005210
ref: 17

SPRING SET,VALVE

€ 10.50

18

1292005240
ref: 18

SPRING SET,VALVE

€ 10.50

19

1293149200
ref: 19

RETAINER,VALVE SPRING

€ 5.50

20

1293224400
ref: 20

COTTER,VALVE

€ 2.00

21

1293349201
ref: 21

SEAT,VALVE SPRING

€ 4.50

22

0928905015
ref: 22
ARROW LEFT09289-0500

SEAL,OIL(5.5X11X8.2)

€ 6.50
