Buy Suzuki GS Parts Online


FRAME COVER (MODEL M/R)

GS125ES 1990 (L) AUSTRALIA (E24)

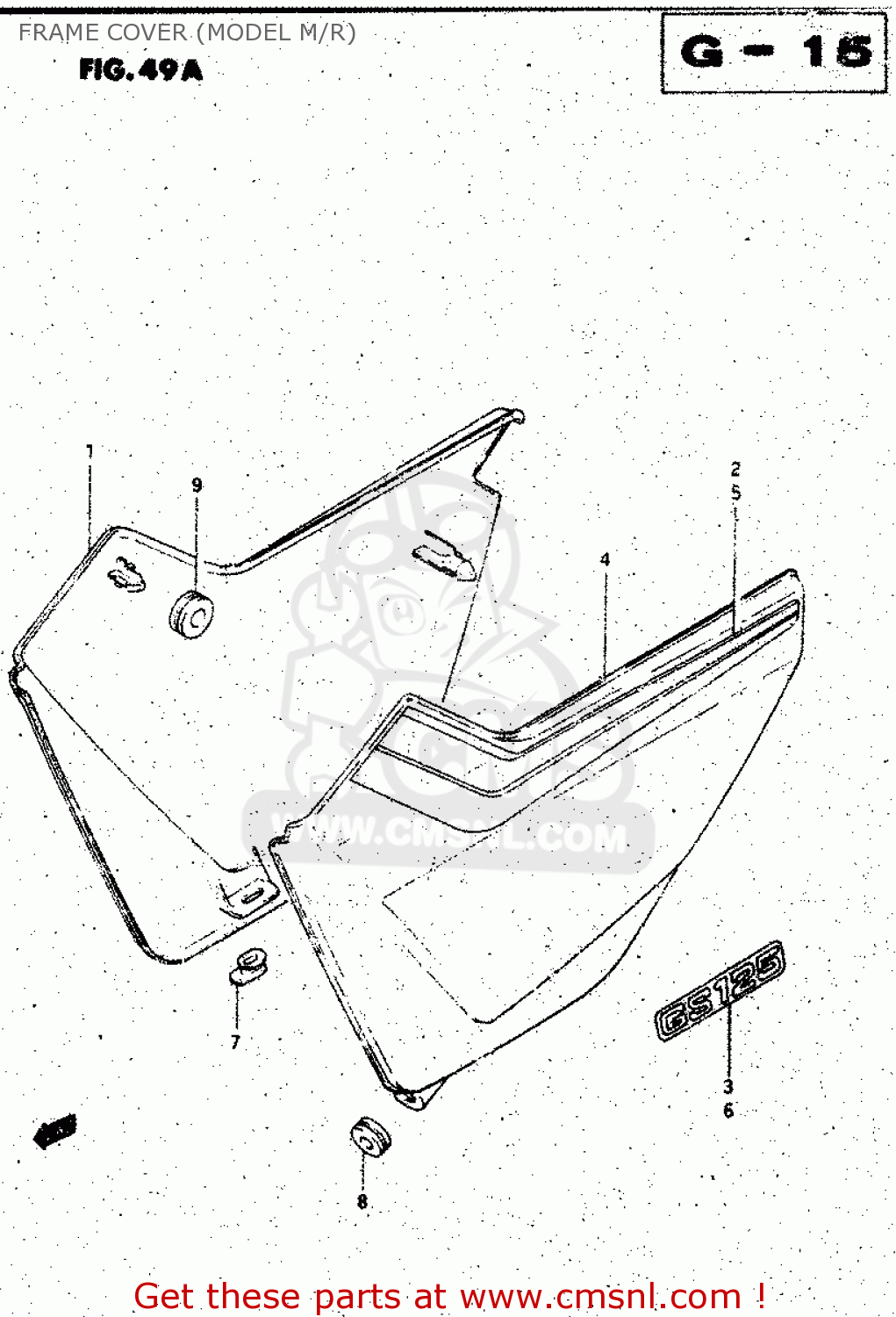

Frame cover (model m/r) diagram GS125ES 1990 (L) AUSTRALIA (E24)

FRAME COVER (MODEL M/R) GS125ES 1990 (L) AUSTRALIA (E24)
FRAME COVER (MODEL M/R) GS125ES 1990 (L) AUSTRALIA (E24)
FRAME COVER (MODEL M/R) GS125ES 1990 (L) AUSTRALIA (E24)
prices are in EUR
ref
part #
description
quantity
1-1
471110535138K
ref: 1-1
MODEL M
COVER, FRAME RH (BLUE)
€ 50.00
1-2
47111053510NF
ref: 1-2
MODEL R
COVER,FRAME,R(BLUE)
€ 0.00
1-3
4711105351019
ref: 1-3
FOR 02X
COVER,FRAME,R(BLACK)
€ 50.00
1-4
47111053510NH
ref: 1-4
FOR 0NH,0BX
COVER,FRAME,R(RED)
€ 62.50
2-1
6813005310G39
ref: 2-1
FOR 38K,0NF
TAPE SET, FRAME COVER RH
€ 0.00
2-2
6813005310G38
ref: 2-2
FOR 02X
TAPE SET, FRAME COVER RH
€ 15.50
2-3
6813005310G41
ref: 2-3
FOR 0BX
TAPE SET, FRAME COVER RH
€ 0.00
2-4
68130053107RN
ref: 2-4
FOR 0NH
TAPE SET, FRAME COVER RH
€ 14.00
3-1
6813105390064
ref: 3-1
FOR 38K,0NF,0NH
EMBLEM
6813105390064
€ 5.50
3-2
681310539032D
ref: 3-2
FOR 02X
EMBLEM (WHITE)
€ 5.50
3-3
681310539022R
ref: 3-3
FOR 0BX
EMBLEM (WHITE)
€ 4.50
4-1
472110535138K
ref: 4-1
MODEL M
COVER, FRAME LH (BLUE)
€ 55.50
4-2
47211053510NF
ref: 4-2
MODEL R
COVER,FRAME,L(BLUE)
€ 0.00
4-3
4721105351019
ref: 4-3
FOR 02X
COVER,FRAME,L(BLACK)
€ 55.50
4-4
47211053510NH
ref: 4-4
FOR 0NH,0BX
COVER,FRAME,L(RED)
€ 62.50
5-1
6814005310G39
ref: 5-1
FOR 38K,0NF
TAPE SET, FRAME COVER LH
€ 0.00
5-2
6814005310G38
ref: 5-2
FOR 02X
TAPE SET, FRAME COVER LH
€ 0.00
5-3
6814005310G41
ref: 5-3
FOR 0BX
TAPE SET, FRAME COVER LH
€ 0.00
5-4
68140053107RN
ref: 5-4
FOR 0NH
TAPE SET, FRAME COVER LH
€ 14.00
6-1
6813105390064
ref: 6-1
FOR 38K, 0NF,0NH
EMBLEM
6813105390064
€ 5.50
6-2
681310539032D
ref: 6-2
FOR 02X
EMBLEM (WHITE)
€ 5.50
6-3
681310539022R
ref: 6-3
FOR 0BX
EMBLEM (WHITE)
€ 4.50
7
0932003004
ref: 7
CUSHION
0932003004
€ 2.00
8
0932005006
ref: 8
CUSHION
0932005006
€ 4.00
9
0932008018
ref: 9
CUSHION
0932008018
€ 4.00
