FRONT WHEEL (GS125Z/D)
GS125ES 1990 (L) AUSTRALIA (E24)

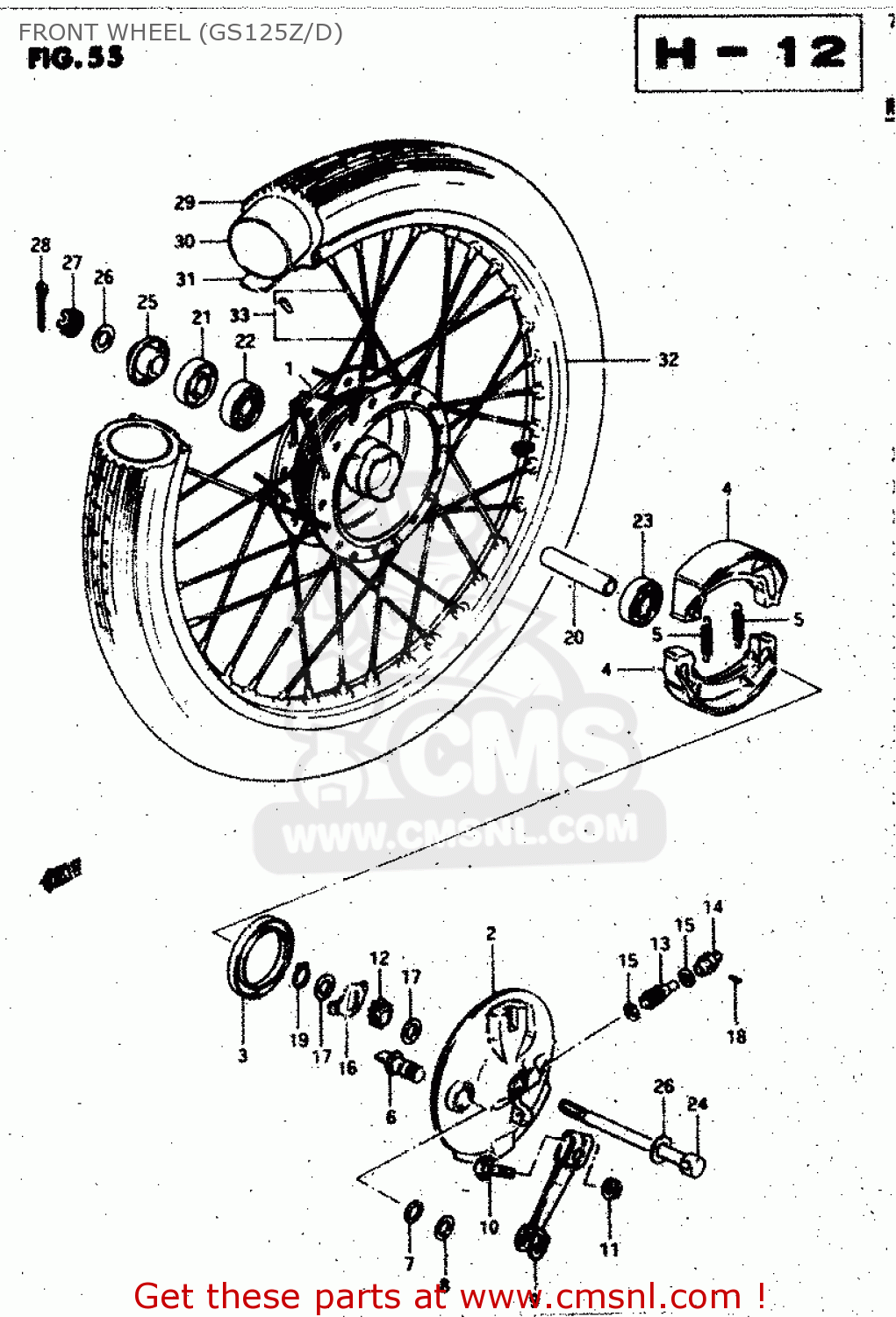

Front wheel (gs125z/d) diagram GS125ES 1990 (L) AUSTRALIA (E24)
FRONT WHEEL (GS125Z/D) GS125ES 1990 (L) AUSTRALIA (E24)
×
prices are in EUR
ref
part #
description
quantity
1
5411007602
ref: 1
HUB,FRONT
€ 0.00
2
5421005300
ref: 2
ARROW RIGHT54210-053
PANEL,FRONT BRAKE ANCHOR
€ 0.00
3
0928548001
ref: 3
SEAL,OIL(48X62X7)
€ 5.50
4-1
5441007003
ref: 4-1
E1,E2
SHOE,BRAKE
€ 35.00
4-2
5441037400
ref: 4-2
E24
SHOE,BRAKE (MCA)
€ 26.00
5
0944307001
ref: 5
SPRING(L:34)
€ 2.50
6
5444129304
ref: 6
CAM,FRONT BRAKE
€ 13.00
7
0928014003
ref: 7
O-RING (D:2.4 ID:13.8)
€ 3.50
8
0916014001
ref: 8
WASHER (14.5X22X1.6)
€ 2.50
9
5445146110
ref: 9
LEVER,FR BRAKE CAM
€ 7.50
10
0151706358
ref: 10
BOLT 6X35
€ 2.50
11
0915906017
ref: 11
NUT
€ 2.50
12
5461107002
ref: 12
GEAR,SPEEDOMETER(NT:24)
€ 16.50
13
5462139202
ref: 13
PINION,SPEEDOMETER(NT:9)
€ 33.50
14-1
5463201001
ref: 14-1
FOR 54210-05300
BUSH,METER GEAR OUTER
€ 9.00
14-2
5463202201
ref: 14-2
FOR 54210-05301
BUSH,SPEEDOMETER PINION OUTER
€ 6.50
15
0916005001
ref: 15
WASHER (5.1X9X0.4)
€ 2.00
16
5466107000
ref: 16
DRIVER,SPEEDOMETER GEAR
€ 3.00
17
0916018002
ref: 17
WASHER(18.5X24X1)
€ 2.00
18
0913403101
ref: 18
FOR 54210-05300
SCREW
€ 1.50
19
0833131186
ref: 19
CLIP
€ 2.00
20
0918012032
ref: 20
SPACER(12.6X19X47)
€ 6.00
21
0928418001
ref: 21
OIL SEAL(17X38X5)
€ 12.50
22
0811363010
ref: 22
BEARING
€ 9.50
23
0814363017
ref: 23
BEARING
€ 14.50
24
5471141100
ref: 24
AXLE,FRONT
€ 42.00
25
5474041301
ref: 25
SPACER,FR AXLE,R
€ 5.50
26
0832201127
ref: 26
WASHER
€ 2.00
27
0831431128
ref: 27
NUT 12MM
€ 2.00
28
0411120308
ref: 28
COTTER PIN
€ 1.00
29
5510039310
ref: 29
TIRE,FRONT
€ 201.00
30
5520011601
ref: 30
TUBE,INNER
€ 24.50
31
5526111010
ref: 31
PROTECTOR,INNER TUBE
€ 3.50
32
5531105300
ref: 32
RIM,FR WHEEL 1.60X18
€ 86.50
33
5532005300
ref: 33
SPOKE SET,FRONT
€ 34.50
