COWLING (GS125ESD)
GS125ES 1990 (L) AUSTRALIA (E24)

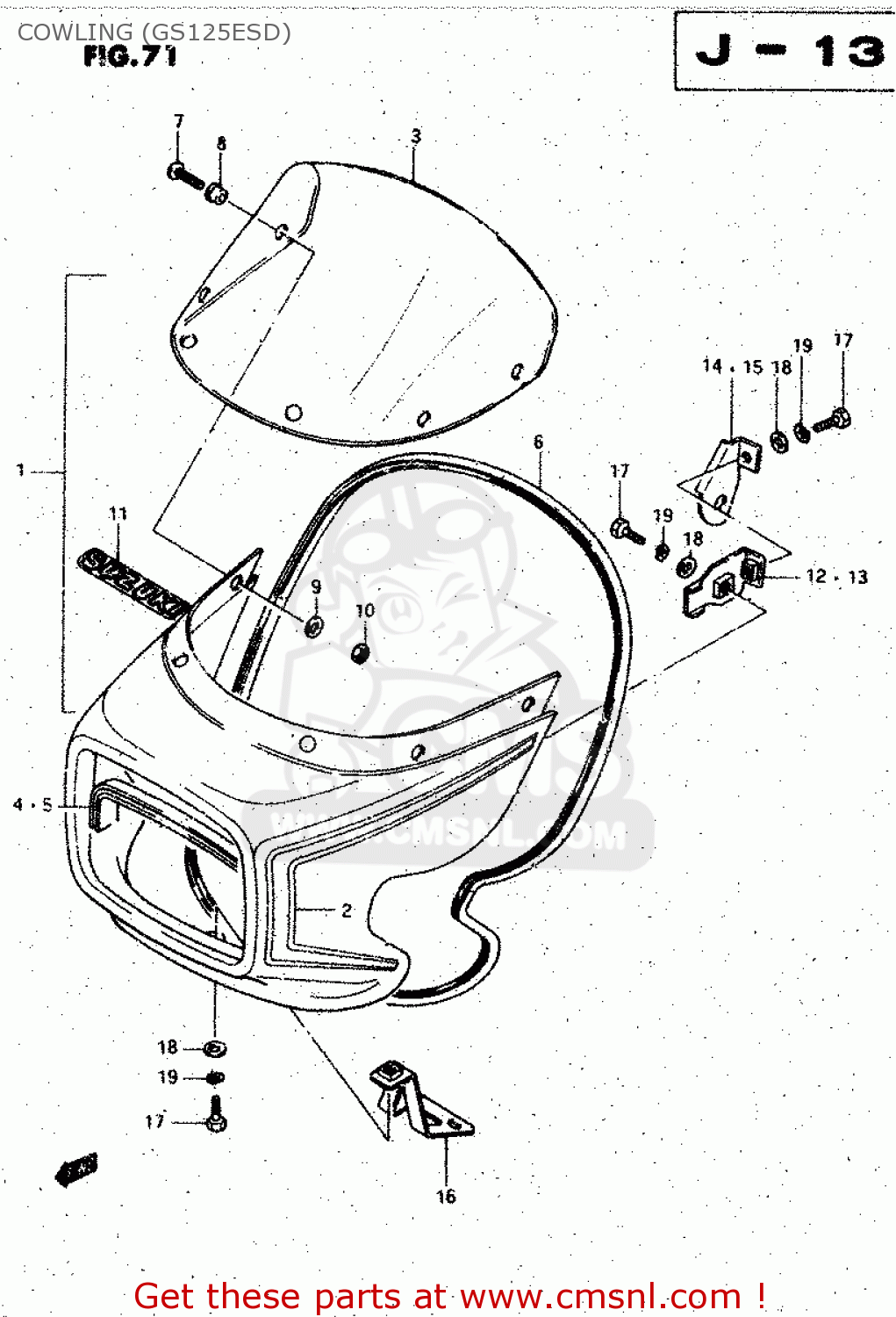

Cowling (gs125esd) diagram GS125ES 1990 (L) AUSTRALIA (E24)
COWLING (GS125ESD) GS125ES 1990 (L) AUSTRALIA (E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440005370019
ref: 1-1
COWLING ASSY (BLACK)
€ 201.50
1-2
944000537004Y
ref: 1-2
COWLING ASSY (BLUE)
€ 201.50
1-3
944000537007F
ref: 1-3
COWLING ASSY (RED)
€ 0.00
1-4
944000537014L
ref: 1-4
COWLING ASSY (WHITE)
€ 201.50
2-1
681900530070G
ref: 2-1
FOR 019
TAPE SET
€ 24.00
2-2
681900530088U
ref: 2-2
FOR 04Y
TAPE SET
€ 24.00
2-3
681900530088T
ref: 2-3
FOR 07P
TAPE SET
€ 24.00
2-4
681900530088V
ref: 2-4
FOR 14L
TAPE SET
€ 24.00
3
9461136500
ref: 3
WINDOW,COWLING
€ 37.00
4
9459139300
ref: 4
MOLDING,HEADLAMP GRILL
€ 11.50
5
9459239300
ref: 5
MOLDING,HEADLAMP GRILL
€ 11.50
6
9463136501
ref: 6
ARROW RIGHT94631-441
MOULDING, WINDOW
€ 18.00
7
0214205124
ref: 7
SCREW, FRONT & REAR
€ 1.50
8
0932005008
ref: 8
CUSHION
€ 5.00
9
0832221055
ref: 9
WASHER,5MM
€ 2.50
10
0831012055
ref: 10
NUT ,5MM
€ 2.50
11-1
6816649200538
ref: 11-1
FOR 04Y,07P,14L
EMBLEM,SEAT TAIL COVER
€ 5.00
11-2
6816649200998
ref: 11-2
FOR 019
EMBLEM (GOLD/BLACK)
€ 3.00
12
9451036500
ref: 12
BRACE, RH (L:19)
€ 4.50
13
9453036500
ref: 13
BRACE,COWLING LH
€ 5.00
14
9452105351
ref: 14
BRACKET, FITTING RH (L:19)
€ 7.00
15
9456105351
ref: 15
BRACKET,L
€ 6.00
16
9455005350
ref: 16
BRACKET, LOWER
€ 6.00
17
0110706165
ref: 17
BOLT 6X16
€ 2.00
18
0916006039
ref: 18
WASHER (6.5X18X1.6)
€ 2.00
19
0832121064
ref: 19
WASHER,LOCK
€ 2.00
