GEAR SHIFTING
GS125ES 1990 (L) AUSTRALIA (E24)

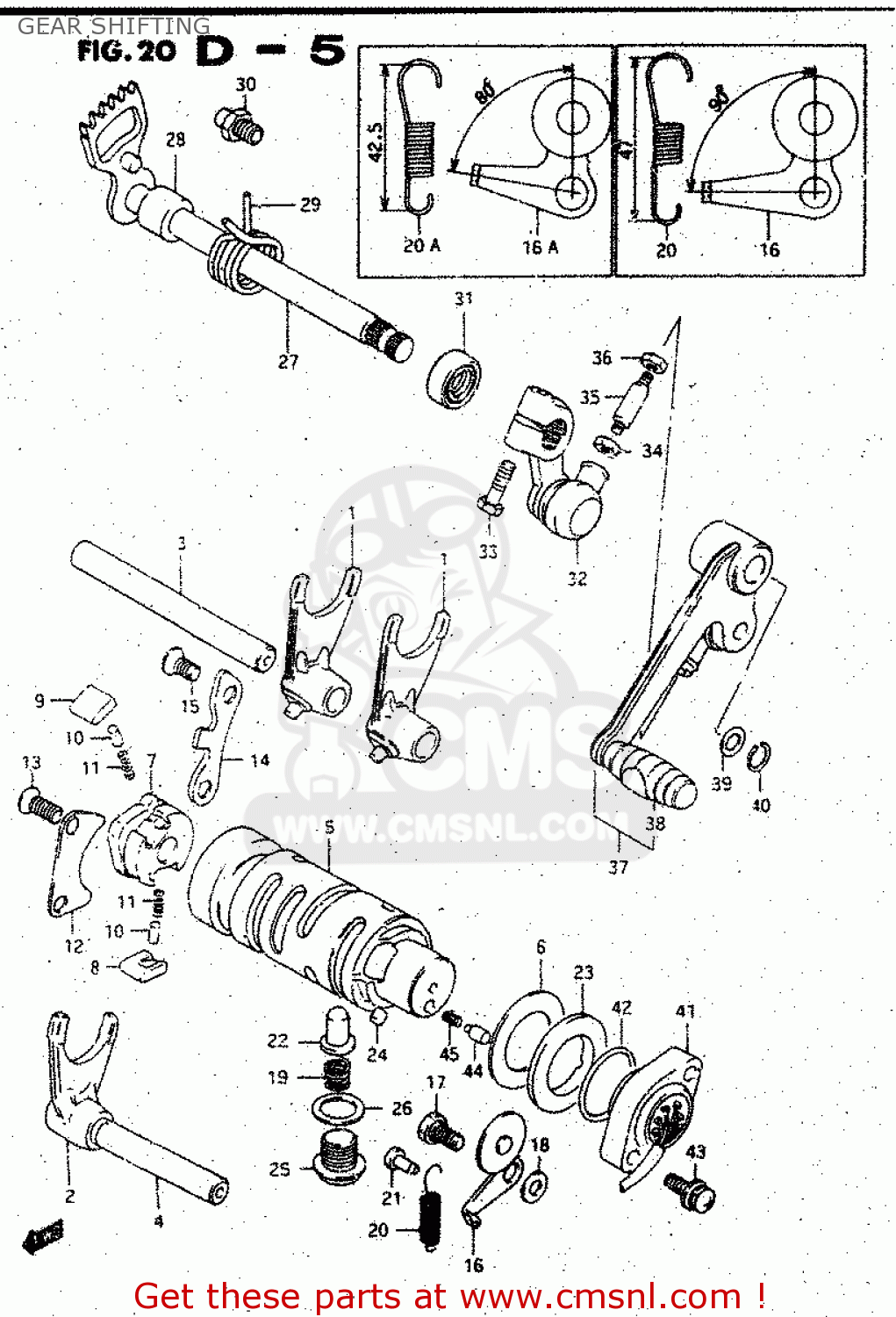

Gear shifting diagram GS125ES 1990 (L) AUSTRALIA (E24)
GEAR SHIFTING GS125ES 1990 (L) AUSTRALIA (E24)
×
prices are in EUR
ref
part #
description
quantity
1
2522108300
ref: 1
FORK,GEAR SHIFT NO.2
€ 54.50
2
2523105201
ref: 2
FORK,GEAR SHIFT NO.3
€ 54.50
3-1
2541116701
ref: 3-1
MODEL Z/D/F/K/L/M
SHAFT,GEAR SHIFT FORK(L:109)
€ 11.50
3-2
2541105201
ref: 3-2
UR E71,MODEL R
SHAFT,GEAR SHIFT FORK
€ 11.50
4-1
2542135402
ref: 4-1
MODEL Z/D/F/K/L/M
SHAFT,GEAR SHIFT FORK
€ 19.00
4-2
2542135403
ref: 4-2
UR E71,MODEL R
SHAFT,GEAR SHIFT FORK
€ 19.00
5
2531005300
ref: 5
CAM,GEAR SHIFT
€ 75.00
6
0821125401
ref: 6
WASHER,THRUST
€ 2.50
7
2532231301
ref: 7
GEAR,GEARSHIFT CAM DRIVE
€ 14.50
8
2532334201
ref: 8
PAWL,GEAR SHIFT NO.1
€ 6.00
9
2532434201
ref: 9
PAWL,GEAR SHIFT NO.2
€ 6.00
10
0926105003
ref: 10
PIN(5X8)
€ 1.50
11
0944004003
ref: 11
SPRING
€ 1.50
12
2533130001
ref: 12
LIFTER,GEAR SHIFT POLE
€ 3.50
13
0212206123
ref: 13
SCREW
€ 3.00
14
2534105200
ref: 14
GUIDE,GEAR SHIFT CAM
€ 6.50
15
0212206123
ref: 15
SCREW
€ 3.00
16
2535005200
ref: 16
~E.NO.117898,ARROW R
STOPPER,GEAR SHIFTING
€ 8.00
16A
2535044A00
ref: 16A
MODEL K/L/M/R E.NO.1
STOPPER,GEAR SHIFT CAM
€ 8.00
17
0911106054
ref: 17
BOLT(6X14.6)
€ 1.50
18
0821106141
ref: 18
WASHER
€ 2.50
19-1
0944011016
ref: 19-1
UR E71,MODEL Z/D/F/K
SPRING
€ 7.50
19-2
0944011014
ref: 19-2
MODEL R
SPRING
€ 1.50
20
0944308012
ref: 20
~E.NO.117898,ARROW R
SPRING
€ 3.00
20A
0944308044
ref: 20A
MODEL K/L/M/R E.NO.1
SPRING
€ 1.50
21
0922304001
ref: 21
RIVET
€ 1.50
22
2535130010
ref: 22
STOPPER,GEAR SHIFT CAM NO.2
€ 6.50
23
2538145400
ref: 23
PLATE,GEAR SHIFT CAM STOPPER
€ 10.50
24
0621104063
ref: 24
PIN 4X6
€ 2.00
25
0924714026
ref: 25
PLUG(14X12)
€ 3.50
26-1
0916814004
ref: 26-1
MODEL Z/D/F/K/L/M
GASKET(14X19.2X2) (NAS)
€ 2.50
26-2
0916814002
ref: 26-2
UR E71,MODEL R
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
27
2551005201
ref: 27
SHAFT,GEAR SHIFT
€ 42.50
28
0918012068
ref: 28
SPACER(12X20X15.3)
€ 3.00
29
0944426013
ref: 29
SPRING
€ 3.50
30
2567101000
ref: 30
STOPPER,GEAR SHIFT CAM
€ 3.00
31
0928512002
ref: 31
OIL SEAL
€ 7.00
32
2552047020
ref: 32
ARM,GEAR SHIFT LINK
€ 53.50
33
0150006207
ref: 33
BOLT
€ 2.00
34
0831000067
ref: 34
NUT
€ 2.50
35
2552533200
ref: 35
ROD,GEAR SHIFT LINK
€ 6.00
36
0914006011
ref: 36
NUT
€ 1.50
37
2560005311
ref: 37
LEVER ASSY,GEAR SHIFT
€ 40.50
38
2565216500
ref: 38
RUBBER,GEAR SHIFT PEDAL
€ 4.00
39
0916012011
ref: 39
WASHER(12.5X20X1)
€ 1.50
40
0833131126
ref: 40
CIRCLIP,12 MM
€ 2.00
41-1
3772033200
ref: 41-1
GS125ESZ/EZ/ESD/ESF/
BASE ASSEMBLY,NEUTRAL SWITCH TERMINAL
€ 92.50
41-2
3772044600
ref: 41-2
GS125Z/D,UR E71
TERMINAL BASE,NEUTRAL SWITCH
€ 51.00
42
0928026003
ref: 42
O-RING (D:2.4 ID:26.2)
€ 2.50
43
0211275203
ref: 43
SCREW
€ 3.00
44
0920905011
ref: 44
PIN(5X15.5)
€ 2.00
45
0944004010
ref: 45
SPRING
€ 1.50
