COWLING (GS125ESF/ESK/ESL)
GS125ES 1990 (L) AUSTRALIA (E24)

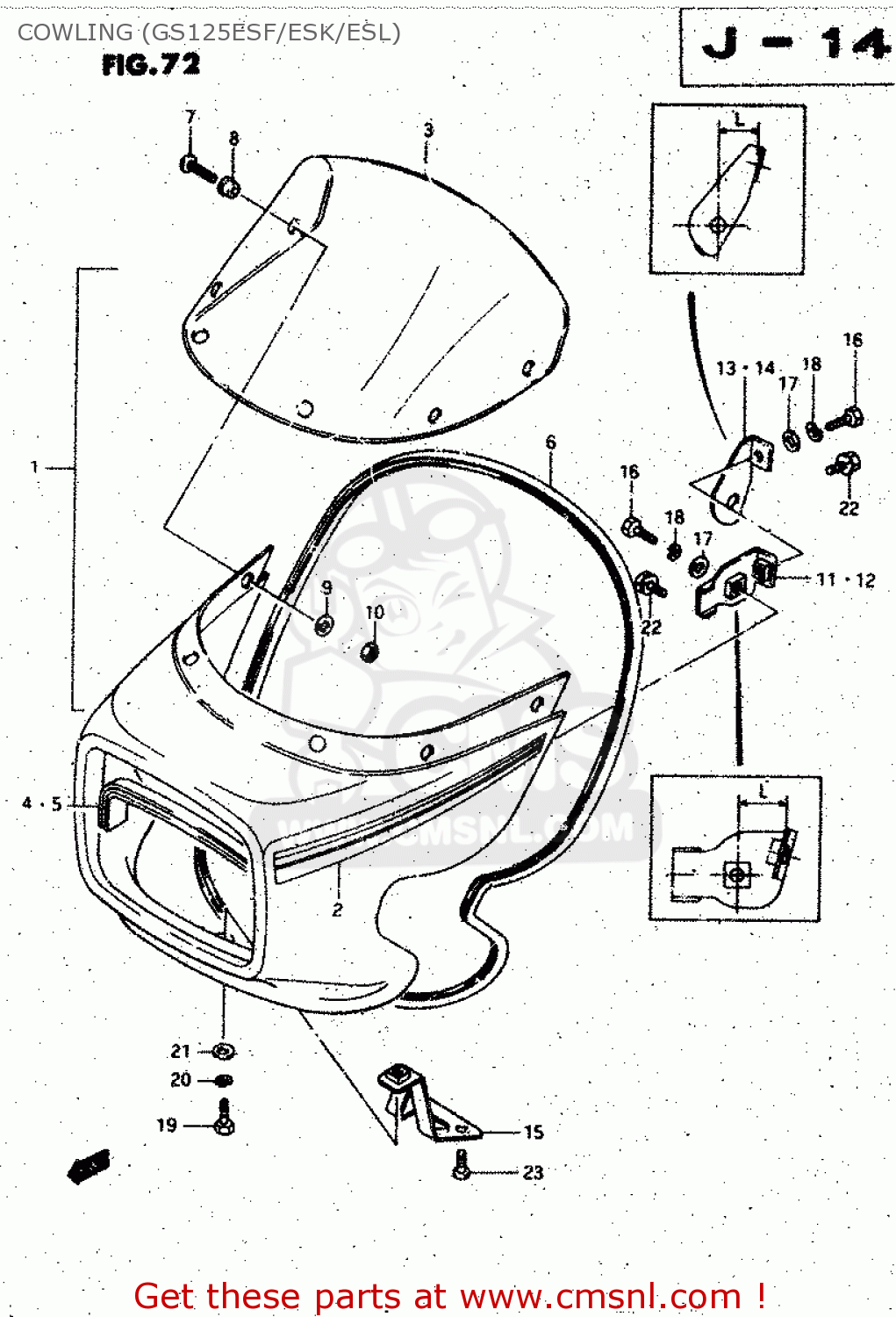

Cowling (gs125esf/esk/esl) diagram GS125ES 1990 (L) AUSTRALIA (E24)
COWLING (GS125ESF/ESK/ESL) GS125ES 1990 (L) AUSTRALIA (E24)
×
prices are in EUR
ref
part #
description
quantity
1-1
9440005390019
ref: 1-1
MODEL F
COWLING ASSY (BLACK)
€ 201.50
1-2
944000539004Y
ref: 1-2
MODEL F
COWLING ASSY (BLUE)
€ 0.00
1-3
944000539007P
ref: 1-3
MODEL F/K
COWLING ASSY (RED)
€ 173.00
1-4
944000539014L
ref: 1-4
MODEL F
COWLING ASSY (WHITE)
€ 0.00
1-5
944000539022R
ref: 1-5
MODEL K/L
COWLING ASSY (WHITE)
€ 201.50
1-6
94400053900NH
ref: 1-6
MODEL L
COWLING ASSY (RED)
€ 173.00
2-1
68190053107RM
ref: 2-1
FOR 019,MODEL F
TAPE SET
€ 0.00
2-2
68190053107SL
ref: 2-2
FOR 04Y,MODEL F
TAPE SET
€ 0.00
2-3
68190053107RN
ref: 2-3
FOR 07P,0NH,MODEL F/
TAPE SET
€ 0.00
2-4
68190053107DH
ref: 2-4
FOR 14L,MODEL F
TAPE SET
€ 0.00
2-5
68190053102WT
ref: 2-5
FOR 22R,MODEL K/L
TAPE SET
€ 0.00
3
9461136500
ref: 3
WINDOW,COWLING
€ 37.00
4
9459139300
ref: 4
MOLDING,HEADLAMP GRILL
€ 11.50
5
9459239300
ref: 5
MOLDING,HEADLAMP GRILL
€ 11.50
6
9463144110
ref: 6
L:1920ARROW RIGHT132
MOLD,COWLING
€ 18.00
7
0214205124
ref: 7
SCREW, FRONT & REAR
€ 1.50
8
0932005008
ref: 8
CUSHION
€ 5.00
9
0832221055
ref: 9
WASHER,5MM
€ 2.50
10
0831012055
ref: 10
NUT ,5MM
€ 2.50
11-1
9451036500
ref: 11-1
MODEL F
BRACE, RH (L:19)
€ 4.50
11-2
9451005300
ref: 11-2
MODEL F/K/L
BRACE, COWLING RH
€ 7.00
12-1
9453036500
ref: 12-1
MODEL F
BRACE,COWLING LH
€ 5.00
12-2
9453005300
ref: 12-2
MODEL F/K/L
BRACE, COWLING LH
€ 5.50
13-1
9452105351
ref: 13-1
MODEL F
BRACKET, FITTING RH (L:19)
€ 7.00
13-2
9452105360
ref: 13-2
MODEL F/K/L
BRACKET, FITTING RH (L:22)
€ 4.50
14-1
9456105351
ref: 14-1
MODEL F
BRACKET,L
€ 6.00
14-2
9456105360
ref: 14-2
MODEL F/K/L
BRACKET, FITTING LH (L:22)
€ 7.50
15
9455005350
ref: 15
BRACKET, LOWER
€ 6.00
16
0110706165
ref: 16
MODEL F
BOLT 6X16
€ 2.00
17
0916006039
ref: 17
MODEL F
WASHER (6.5X18X1.6)
€ 2.00
18
0832121064
ref: 18
MODEL F
WASHER,LOCK
€ 2.00
19
0110706165
ref: 19
MODEL K/L
BOLT 6X16
€ 2.00
20
0832121064
ref: 20
MODEL K/L
WASHER,LOCK
€ 2.00
21
0916006039
ref: 21
MODEL K/L
WASHER (6.5X18X1.6)
€ 2.00
22
0113406125
ref: 22
MODEL K/L
BOLT ,6X12
€ 1.50
23
0214206164
ref: 23
MODEL K/L
SCREW
€ 2.50
