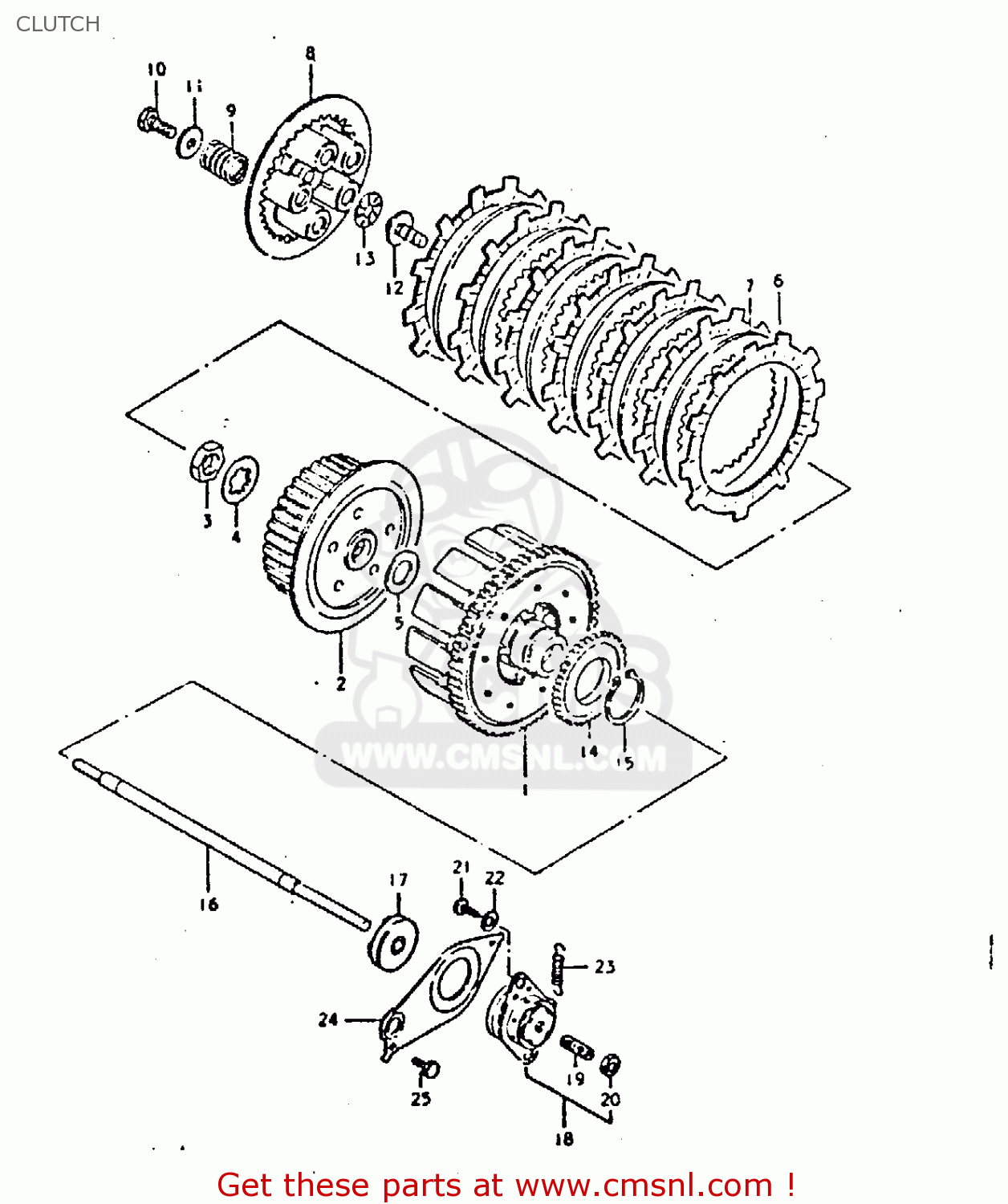

CLUTCH

ref

part #

description

quantity

1

2120011400
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 205.50

2

2141111400
ref: 2

HUB,CLUTCH SLEEVE

€ 63.00

3

0914016001
ref: 3

NUT

€ 4.50

4

0916916003
ref: 4

WASHER

€ 2.00

5

0821120352
ref: 5

WASHER

€ 3.00

6

2144128300
ref: 6

PLATE,CLUTCH DRIVE

€ 8.50

7

2145128000
ref: 7

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

8

2146246900
ref: 8

DISC,CLUTCH PRESSURE

€ 21.00

9

0944015013
ref: 9

SPRING

€ 4.00

10

0910005002
ref: 10

BOLT(5X16)

€ 2.00

11

0916005017
ref: 11

WASHER (5.5X16X1.2)

€ 2.50

12

2312111400
ref: 12

ROD,CLUTCH RELEASE

€ 14.00

13

0926310002
ref: 13

BEARING(10X22X2.8)

€ 8.50

14

1632111400
ref: 14

GEAR,OIL PUMP DRIVE

€ 41.00

15

0833131389
ref: 15

CIRCLIP

€ 2.50

16

2310044101
ref: 16

ROD,CLUTCH PUSH

€ 18.50

17

0928506012
ref: 17

SEAL,OIL(6X31X10)

€ 9.50

18

2320044100
ref: 18

SCREW ASSEMBLY,CLUTCH RELEASE

€ 63.00

19

0913406001
ref: 19

SCREW

€ 3.00

20

0831022068
ref: 20

NUT 6MM

€ 2.50

21

0311106168
ref: 21

SCREW

€ 1.50

22

0832221068
ref: 22

WASHER

€ 2.00

23

0944308001
ref: 23

SPRING

€ 3.00

24

2311711401
ref: 24

PLATE,CLUTCH PUSH ROD

€ 7.00

25

0110706128
ref: 25

BOLT

€ 2.00
