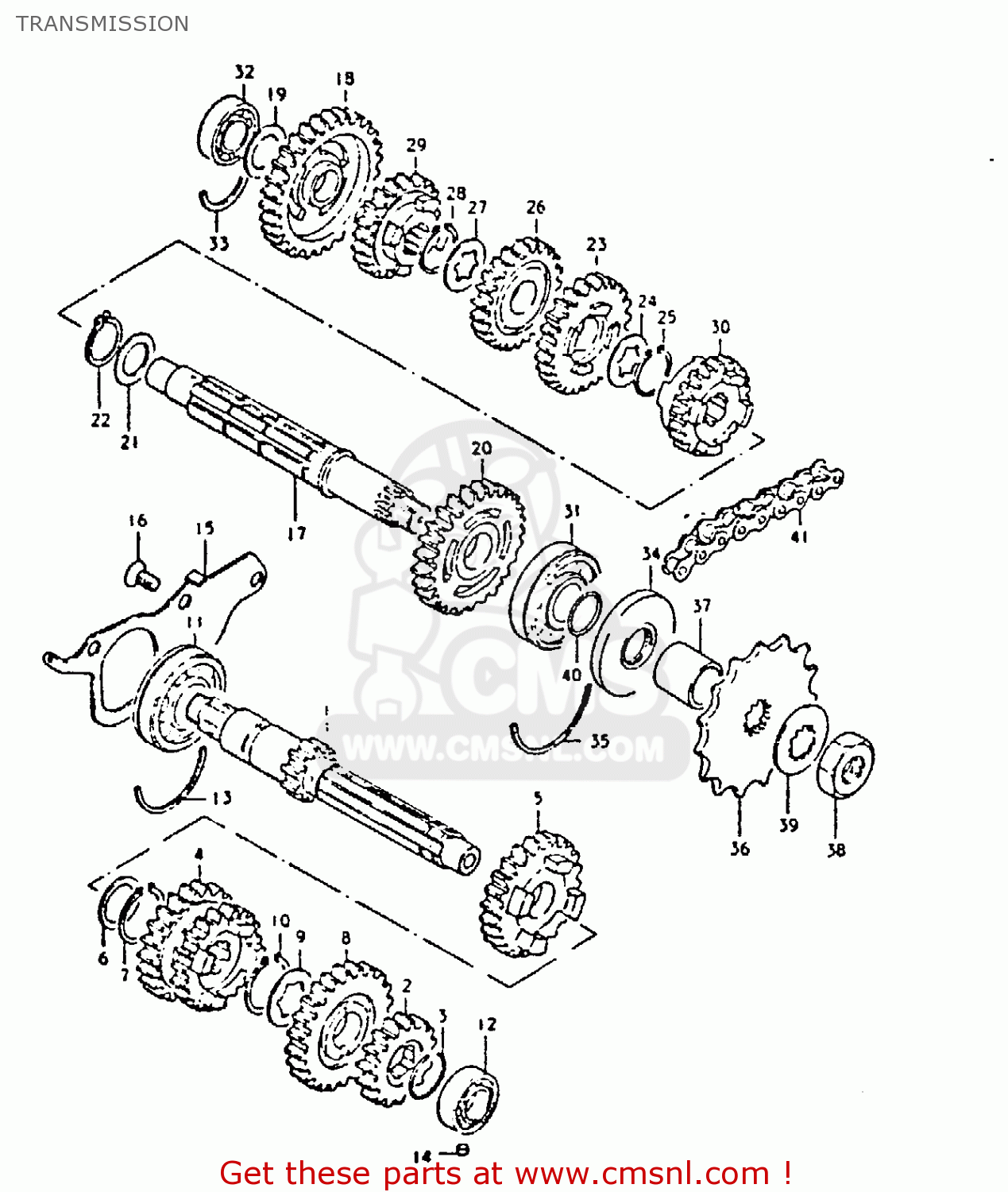

TRANSMISSION

ref

part #

description

quantity

1

2412111401
ref: 1

SHAFT,COUNTER

€ 141.50

2

2422111300
ref: 2

GEAR,SECOND DRIVE

€ 54.00

3

0938022007
ref: 3

CIRCLIP

€ 2.50

4

2423111300
ref: 4

GEAR,THIRD/FOURTH DRIVE

€ 85.00

5

2425111300
ref: 5

GEAR,FIFTH DRIVE

€ 46.00

6

0821122281
ref: 6

SHIM

€ 4.00

7

0833111229
ref: 7

CIRCLIP

€ 2.00

8

2426111300
ref: 8

GEAR,SIXTH DRIVE

€ 78.50

9

0916722011
ref: 9

WASHER,LOCK

€ 3.00

10

0833111229
ref: 10

CIRCLIP

€ 2.00

11

0816062050
ref: 11

BEARING

€ 21.50

12

0926317015
ref: 12

ROLLER BEARING (17X31X1

€ 16.00

13

0939052002
ref: 13

C RING

€ 3.00

14

0422107129
ref: 14

PIN

€ 1.50

15

2474111400
ref: 15

RETAINER,BEARING

€ 9.00

16

0212206128
ref: 16

SCREW

€ 3.00

17

2413111400
ref: 17

SHAFT,DRIVE

€ 85.00

18

2431011300
ref: 18

GEAR,FIRST DRIVEN

€ 54.00

19

0821115241
ref: 19

WASHER,THRUST

€ 4.00

20

2432011300
ref: 20

GEAR,SECOND DRIVEN

€ 81.00

21

0821122281
ref: 21

SHIM

€ 4.00

22

0833111229
ref: 22

CIRCLIP

€ 2.00

23

2433111400
ref: 23

GEAR,THIRD DRIVEN

€ 51.00

24

0916722011
ref: 24

WASHER,LOCK

€ 3.00

25

0833111229
ref: 25

CIRCLIP

€ 2.00

26

2434111300
ref: 26

GEAR,FOURTH DRIVEN

€ 62.50

27

0916722011
ref: 27

WASHER,LOCK

€ 3.00

28

0833111229
ref: 28

CIRCLIP

€ 2.00

29

2435111300
ref: 29

GEAR,FIFTH DRIVEN

€ 49.00

30

2436111300
ref: 30

GEAR,SIXTH DRIVEN

€ 91.00

31

0816063040
ref: 31

BEARING

€ 23.00

32

0812362020
ref: 32

BEARING, RH

€ 14.50

33

0939035001
ref: 33

C RING

€ 3.00

34-1

0928325069
ref: 34-1
MODEL T

SEAL,OIL(25X52X11.5)

€ 13.50

34-2

0928328012
ref: 34-2
MODEL X

SEAL,OIL(28X52X11.5)

€ 16.00

35

0939052002
ref: 35

C RING

€ 3.00

36

2751111301
ref: 36

SPROCKET,ENGINE(NT:15)

€ 22.00

37-1

0918020072
ref: 37-1
MODEL T, TO 27531-19

SPACER

€ 8.00

37-2

0918020078
ref: 37-2
MODEL X

SPACER (26X28X21.6)

€ 9.50

38

0914016013
ref: 38

NUT

€ 14.00

39

0916720018
ref: 39

WASHER,LOCK

€ 2.50

40

0928020001
ref: 40

O RING(D:1,ID:19.5)

€ 2.00

41

2760011470
ref: 41

CHAIN ASSEMBLY,DRIVE

€ 77.50
