STARTING MOTOR

GS250T 1980 (T) UNITED KINGDOM (E02)

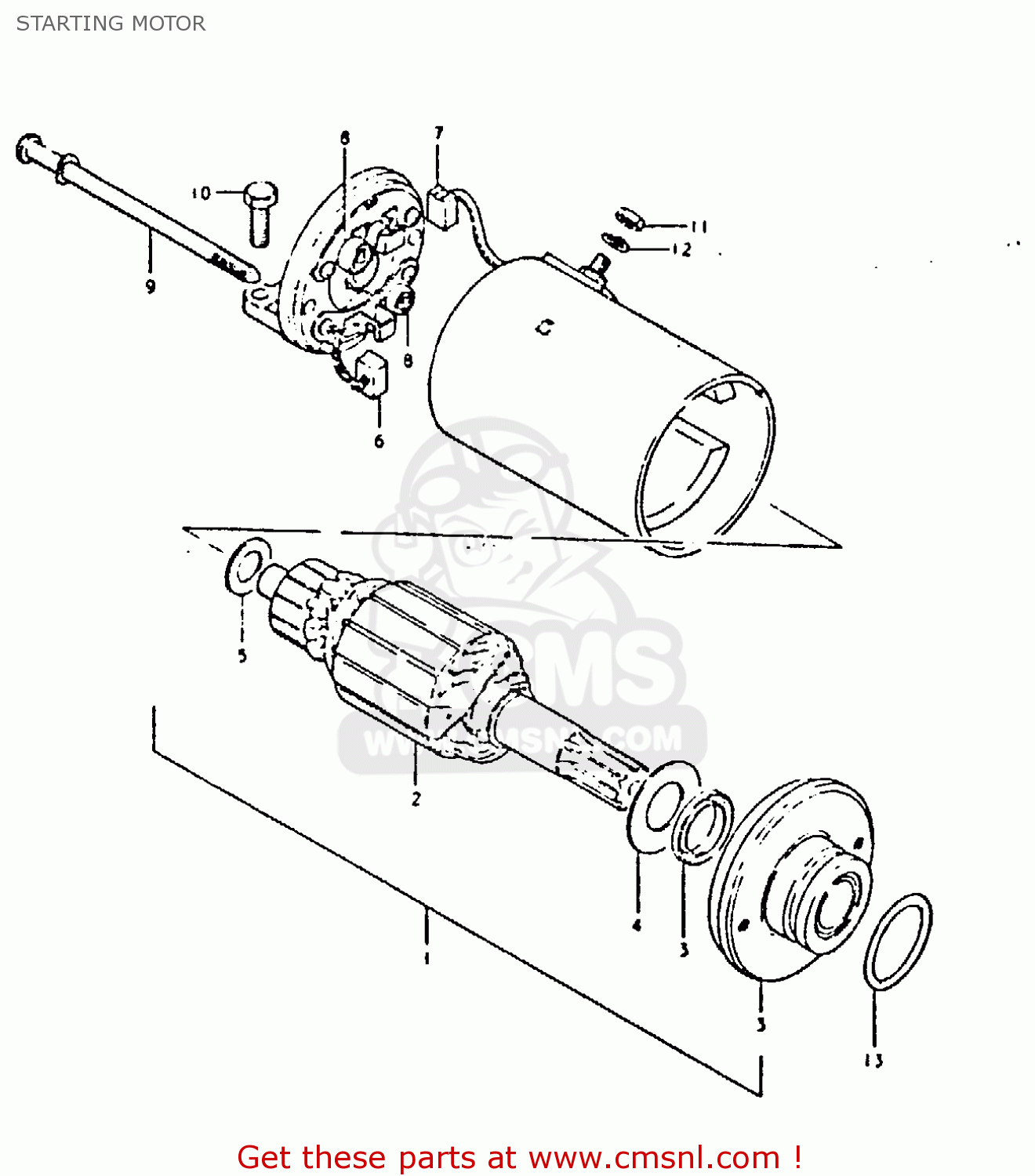

Starting motor diagram GS250T 1980 (T) UNITED KINGDOM (E02)

prices are in EUR

ref

part #

description

quantity

3110011410
ref: 1

MOTOR ASSEMBLY,STARTING

€ 637.50

3131110200
ref: 2

ARMATURE

€ 167.00

3115345010
ref: 3

SEAL,OIL

€ 19.50

3136110200
ref: 4

RING,SNAP

€ 2.50

3136147010
ref: 5

SHIM,ARMATURE

€ 3.50

3113110200
ref: 6

BRUSH(-)

€ 8.50

3113010200
ref: 7

BRUSH TERMINAL SET

€ 13.00

3113565010
ref: 8

SPRING

€ 3.00

3128110200
ref: 9

BOLT,STARTING MOTOR HOUSING

€ 4.00

0110706168
ref: 10

BOLT, UPPER

€ 3.00

0831022068
ref: 11

NUT 6MM

€ 2.50

0832121068
ref: 12

LOCK WASHER

€ 2.50

0928024001
ref: 13

O RING(D:2,ID:24.5)

€ 2.00
