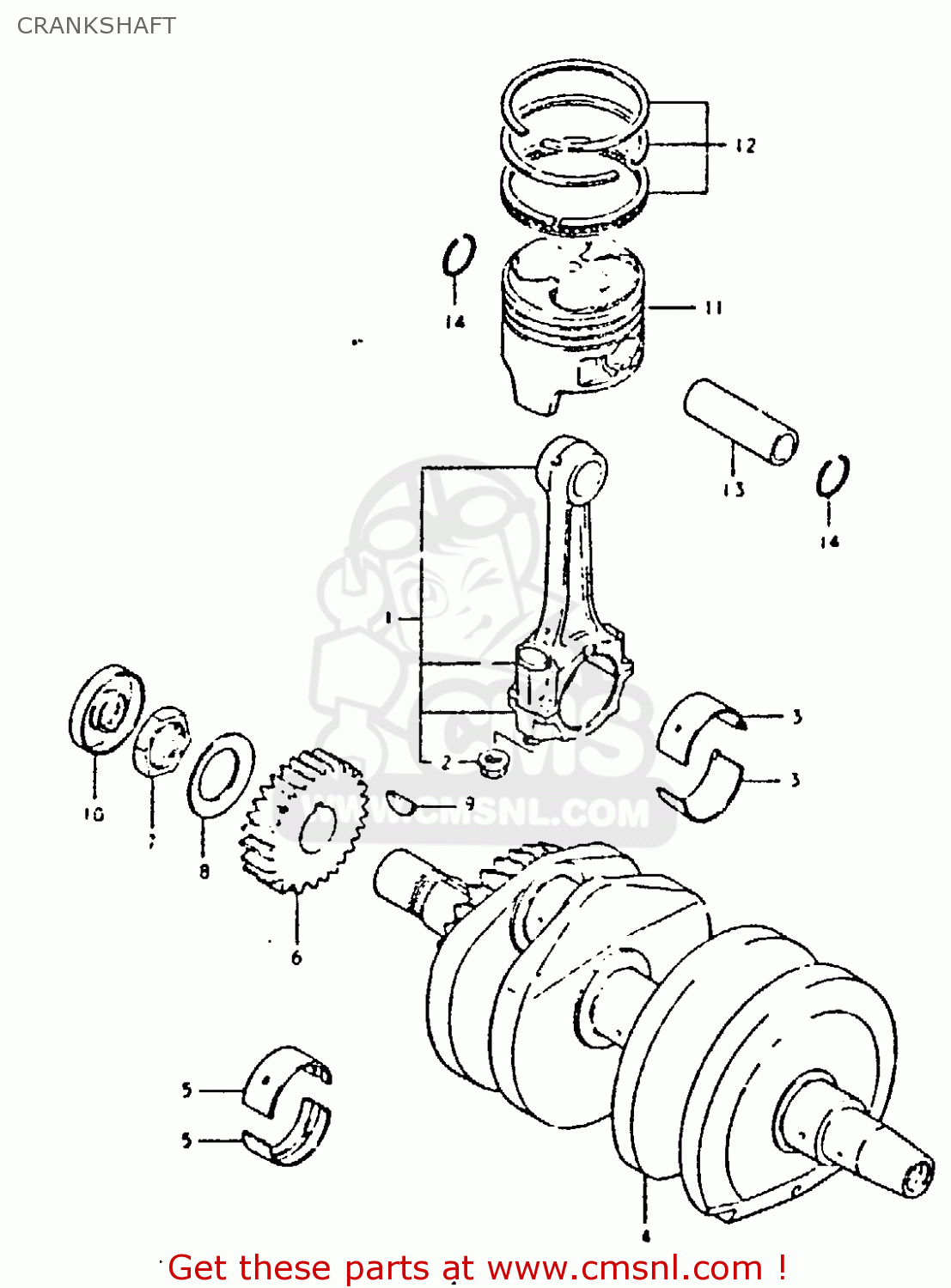

CRANKSHAFT

ref

part #

description

quantity

1

1210011400
ref: 1

ROD ASSY, CONNECTING

€ 0.00

2

0915908033
ref: 2

NUT

€ 2.50

3-1

1216411400010
ref: 3-1

BEARING,CRANK PIN GREEN

€ 12.00

3-2

1216411400020
ref: 3-2

BEARING,CRANK PIN BLACK

€ 12.50

3-3

1216411400030
ref: 3-3

BEARING,CRANK PIN BROWN

€ 12.50

3-4

1216411400040
ref: 3-4

BEARING,CRANK PIN YELLOW

€ 11.50

3-5

1216411400025
ref: 3-5
US:0.25

BEARING,CRANK PIN (US: 0.25)

€ 11.50

3-6

1216411400050
ref: 3-6
US:0.50

BEARING,CRANK PIN (US: 0.5)

€ 11.00

4

1222011401
ref: 4

CRANKSHAFT ASSEMBLY

€ 785.00

5-1

1222911400010
ref: 5-1

METAL CRANKSHAFT (YELLOW)

€ 9.50

5-2

1222911400020
ref: 5-2

METAL CRANKSHAFT (BROWN)

€ 12.00

5-3

1222911400030
ref: 5-3

METAL CRANKSHAFT (BLACK)

€ 10.00

5-4

1222911400040
ref: 5-4

METAL CRANKSHAFT (GREEN)

€ 10.50

5-5

1222911400025
ref: 5-5
US:0.25

BEARING,CRANKSHAFT(US:0.25)

€ 9.50

5-6

1222911400050
ref: 5-6
US:0.50

METAL CRANKSHAFT

€ 9.50

6

2111111400
ref: 6

GEAR,PRIMARY DRIVE

€ 0.00

7

0914024007
ref: 7

NUT

€ 4.50

8

0916425001
ref: 8

WASHER

€ 4.50

9

0834131059
ref: 9

KEY

€ 3.00

10

0928322013
ref: 10

OIL SEAL

€ 10.50

11-1

1211111401
ref: 11-1
TO 12111-11402

PISTON

€ 49.00

11-2

1211111401050
ref: 11-2
TO 12111-11402-050

PISTON (OS:0.5)

€ 152.50

11-3

1211111401100
ref: 11-3
TO 12111-11402-100

PISTON (OS:1.0)

€ 122.00

12-1

1241011421
ref: 12-1
FROM 12140-11420

PISTON RING SET (STD)

€ 0.00

12-2

1214011420050
ref: 12-2
TO 12140-11421-050

RING SET,PISTON (OS:0.5)

€ 42.00

12-3

1214011421100
ref: 12-3
FROM 12140-11420-100

RING SET,PISTON

€ 58.00

13

1215118001
ref: 13

PIN,PISTON

€ 15.00

14

0938116002
ref: 14

CIRCLIP

€ 1.50
